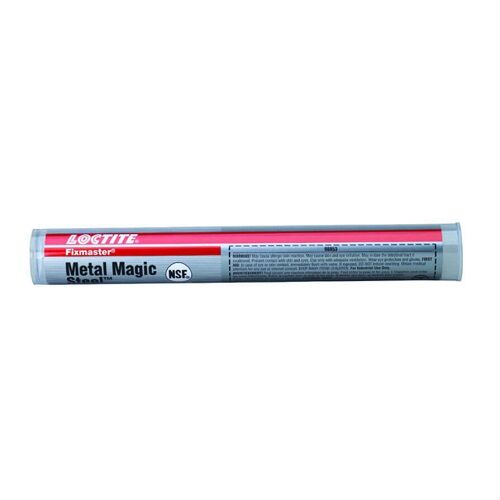

Loctite 3463 Metal Magic Steel Epoxy Stick

Loctite EA 3463 Metal Magic Steel is a two-component, steel-filled epoxy supplied as a stick. The resin is a grey paste and the hardener a black paste; mixed, it is metallic black. Henkel lists it for restoring metal parts worn by mechanical damage or corrosion.

You mix it by hand, twisting and kneading for 2 to 3 minutes until the colour is uniform, then apply it like putty. It cures at room temperature after mixing, and it cures under water.

Where this product is used

• Stopping leaks in pipes
• Repairing holes in tanks
• Filling oversized bolt holes
• Smoothing welds
• Repairing non-structural defects in castings
• Restoring metal parts worn by mechanical damage or corrosion

Features

• Two-component, steel-filled epoxy; mixed colour is metallic black
• Mixed by hand: twist and knead for 2 to 3 minutes
• Gel time 3 minutes; working life 4 minutes at 25 °C
• Cure time 10 minutes at 25 °C
• Cures under water and adheres to most damp surfaces
• Compressive strength 50 N/mm² (ISO 604)
• Hardness Shore D 70

Key specifications

Selecting the right option

For a steel-filled putty with a 30 minute working life, see Loctite 3471 Fixmaster Steel Putty - 454g. For a ceramic-reinforced coating, see Loctite Nordbak Brushable Ceramic White 1Kg.

Using it

Twist and knead the stick for 2 to 3 minutes until the colour is uniform, then apply it like putty. Working life is 4 minutes at 25 °C.

Apply at 15 °C to 30 °C. Do not apply to surfaces above 66 °C.

It cures under water and will adhere to most damp surfaces. It can be applied to wet surfaces, but bond strength will be lower.

The cure time of 10 minutes is at 25 °C. Henkel's strength figures are measured after one week at 23 °C.

Storage and handling

Store unopened in a dry place. The optimal storage temperature is 8 °C to 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Henkel lists non-structural defects in castings among its applications. The data sheet states no cured service temperature, so check with Henkel before using it where heat is a factor. Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidisers. Read the safety data sheet before use.

Frequently asked questions

How long do I have to work with Loctite EA 3463?

Gel time is 3 minutes and working life is 4 minutes at 25 °C. Knead for 2 to 3 minutes until the colour is uniform.

How long does Loctite EA 3463 take to cure?

Cure time is 10 minutes at 25 °C. Henkel's strength figures are measured after one week at 23 °C.

Can Loctite EA 3463 be used underwater?

It cures under water and adheres to most damp surfaces. Bond strength on wet surfaces will be lower.

What is the compressive strength of Loctite EA 3463?

50 N/mm² (ISO 604), cured one week at 23 °C.

What temperature can I apply it at?

15 °C to 30 °C, and not onto surfaces above 66 °C.

Can Loctite EA 3463 be sanded or painted?

The Henkel data sheet makes no statement on sanding or painting. Check with AIMS if the finish matters for your job.
