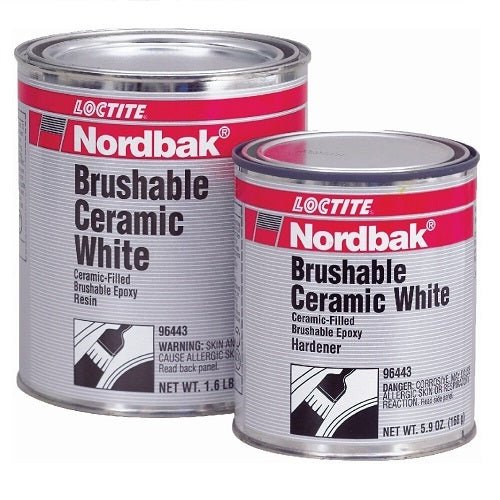

Loctite PC 7228 Nordbak Brushable Ceramic White 1Kg
Available
Loctite PC 7228 (Nordbak Brushable Ceramic White) is a two-component, ceramic-reinforced epoxy coating. The resin is white and the hardener amber; mixed, it is a white liquid.
It is an abrasion-resistant coating, for repairing heat exchangers and condensers, lining tanks and chutes, and as a top coat over Nordbak wearing compounds. It cures at room temperature.
Where this product is used
- Abrasion-resistant coating
- Repairing heat exchangers and condensers
- Lining tanks and chutes
- Resurfacing rudders and pintle housings
- Repairing cooling pump impellers and butterfly valves
- Top coat over Nordbak wearing compounds
Features
- Two-component, ceramic-reinforced epoxy
- Room temperature cure
- Gel time 34 to 48 minutes (400g mass, 25 °C)
- Recoat after 1 to 3 hours, cure time 5 hours (25 °C)
- Coverage 1.1 m² per kg at 0.5mm thickness
- Compressive strength 86 N/mm² (ISO 604), hardness Shore D 85
- Typical dry service -29 °C to 93 °C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loctite |
| Chemical type | Epoxy, two-component, ceramic reinforced |
| Appearance | Resin white; hardener amber; mixed white liquid |
| Mix ratio (resin:hardener) | 2.8:1 by volume; 4.5:1 by weight |
| Viscosity (25 °C) | Resin 120,000 to 180,000 mPa·s (Brookfield RV, spindle 7, 20rpm); hardener 500 to 900 mPa·s (spindle 2, 20rpm); mixed 17,000 mPa·s (cone and plate, 10 s-1) |
| Density | Resin 1.8 to 1.9kg/L; hardener 1.0 to 1.1kg/L |
| Gel time (400g mass, 25 °C) | 34 to 48 minutes |
| Recoat time / cure time (25 °C) | 1 to 3 hours / 5 hours |
| Coverage | 1.1 m² per kg at 0.5mm thickness |
| Compressive strength (ISO 604, 25 °C) | 86 N/mm² |
| Lap shear strength (ISO 4587, grit-blasted steel, 24 h at 25 °C) | 24 N/mm² |
| Hardness (ISO 868) | Shore D 85 |
| Service temperature | Typically -29 °C to 93 °C dry; dry resistance 110 °C and wet resistance 70 °C (CSA-Z245.20-06/Z245.21-06 Rating 2) |
| Storage | Optimal 8 °C to 21 °C, unopened, dry |
Choosing the right option
For a filled wearing compound for impact areas, see Loctite PC 9593 Nordbak Fast Curing Wearing Compound Kit - 3Kg. For a steel-filled repair putty, see Loctite 3471 Fixmaster Steel Putty - 454g.
See also: Loctite PC 9593 Nordbak Fast Curing Wearing Compound Kit - 3Kg, Loctite 3471 Fixmaster Steel Putty - 454g, Loctite 3463 Metal Magic Steel (EA 3463 Metal-filled Epoxy Stick).
Using it
Material temperature should be 20 °C to 30 °C. Mix resin and hardener for 3 to 5 minutes at 2.8:1 by volume (4.5:1 by weight).
Recoat after 1 to 3 hours at 25 °C. Cure time is 5 hours at 25 °C.
Keep open flame away from the cured coating. Use a supplied-air respirator for welding or torch cutting near cured compound.
Storage and handling
Store unopened in a dry place. The optimal storage temperature is 8 °C to 21 °C. Storage outside 8 °C to 28 °C can affect the properties of the product.
Limits and safety
Not recommended for pure oxygen or oxygen-rich systems, or for sealing chlorine or strong oxidisers. No open flame near cured compound, and use a supplied-air respirator for welding or torch cutting nearby. Read the safety data sheet before use.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Loctite Nordbak Brushable Ceramic White 1Kg
SKU: A0049865 | Model: 42372-1KG-LOC
Loctite 42372-1KG-LOC: loctite PC 7228 Nordbak brushable ceramic-reinforced epoxy coating. Size: 1kg. Type: Ceramic-reinforced epoxy coating.
