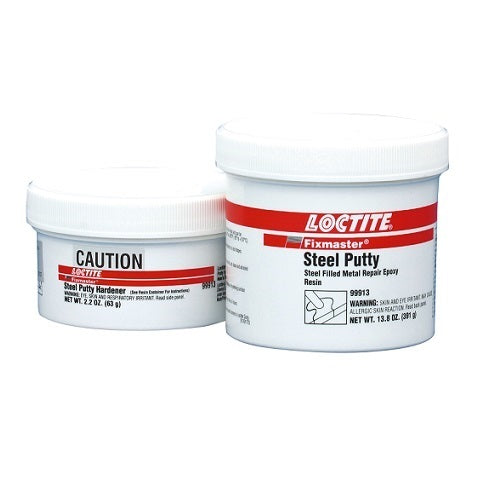

Loctite 3471 Fixmaster Steel Putty 454g

Loctite EA 3471, previously sold as Loctite Fixmaster Steel Putty, is a two-part, steel-reinforced epoxy repair putty that cures to a metal-like finish. The resin is grey and the hardener white; mixed, it is a grey putty.

Henkel lists it for repairing non-structural casting defects, making jigs and fixtures, sealing vessels, tanks and valves, resurfacing worn air seals and filling cavitated areas. Once cured it can be machined, drilled, tapped or filed.

Where this product is used

• Repairing non-structural defects in castings
• Making jigs and fixtures
• Sealing vessels, tanks and valves
• Resurfacing worn air seals
• Filling cavitated areas

Features

• Two-part, steel-reinforced epoxy that cures to a metal-like finish
• Mixed 2.5:1 by volume or 6.25:1 by weight
• Cures at room temperature after mixing
• Working life 30 minutes; gel time 35 to 40 minutes at 21 °C
• Will not sag
• Can be machined, drilled, tapped or filed once cured
• Typical operating range -30 °C to 105 °C

Key specifications

Selecting the right option

For a quick repair stick with a 4 minute working life, see Loctite 3463 Metal Magic Steel (EA 3463 Metal-filled Epoxy Stick). For a ceramic-reinforced brushable coating, see Loctite Nordbak Brushable Ceramic White 1Kg.

Using it

Mix resin and hardener at 2.5:1 by volume or 6.25:1 by weight. Working life is 30 minutes and gel time is 35 to 40 minutes at 21 °C.

Apply at 15 °C to 30 °C, with the ambient temperature above 15 °C and rising, relative humidity below 85 % and the substrate at least 3 °C above the dew point.

Pre-heating the repair surface until it is warm to the touch speeds cure at low temperatures. Once cured the putty can be machined, drilled, tapped or filed.

The current Henkel data sheet includes surface preparation and inspection guidance. Follow it before you apply.

Storage and handling

Store unopened in a dry place. The optimal storage temperature is 8 °C to 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Henkel lists non-structural casting defects among its applications and gives a typical operating range of -30 °C to 105 °C. Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or strong oxidisers. Read the safety data sheet before use.

Frequently asked questions

What is the mix ratio of Loctite EA 3471?

2.5:1 by volume or 6.25:1 by weight (resin to hardener).

How long do I have to work with Loctite EA 3471?

Working life is 30 minutes and gel time is 35 to 40 minutes at 21 °C. Pre-heating the repair surface until it is warm to the touch speeds cure at low temperatures.

Can Loctite EA 3471 be machined after curing?

Yes. It can be machined, drilled, tapped or filed once cured.

What temperature range is Loctite EA 3471 used in?

It is typically used in applications with an operating range of -30 °C to 105 °C. Apply it between 15 °C and 30 °C.

How strong is Loctite EA 3471?

Compressive strength is 61.7 N/mm² (ISO 604), lap shear on grit-blasted mild steel is 9.6 N/mm², and hardness is Shore D 82.

Is Loctite Fixmaster Steel Putty the same as Loctite EA 3471?

Henkel's current data sheet is titled EA 3471 and notes the previous name, Fixmaster Steel Putty. The listed properties are unchanged.
