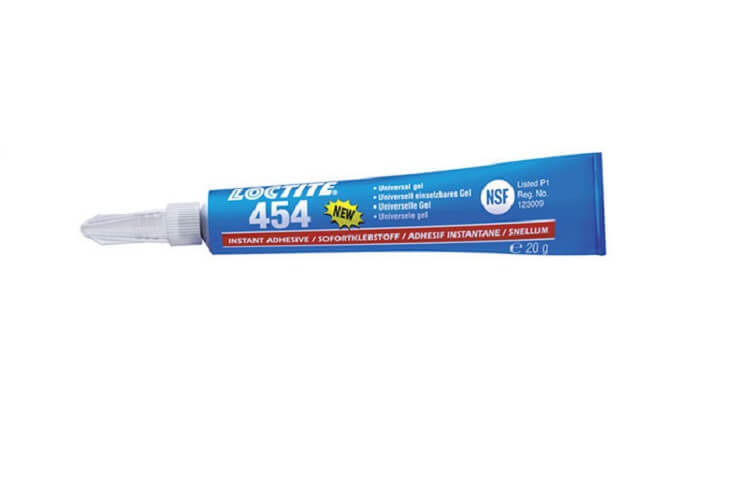

Loctite 454 Instant Adhesive Gel 20g

Loctite 454 is a one-part ethyl cyanoacrylate instant adhesive in the form of a clear to slightly cloudy, high-viscosity gel. It cures with atmospheric moisture and needs no mixing.

The gel consistency stops the adhesive flowing, even on vertical surfaces. Henkel describes it as designed for assembling difficult-to-bond materials, and publishes fixture and strength data for metals, plastics, rubbers, wood, leather, fabric and paper.

Where this product is used

• Vertical bonds where a liquid adhesive would run
• Assembly of difficult-to-bond materials, as described by Henkel
• Steel and aluminium joints (20.9 N/mm² and 17.1 N/mm² lap shear in Henkel testing)
• Rubbers such as nitrile and neoprene, and plastics including ABS, PVC, polycarbonate and phenolic
• Porous materials such as wood, chipboard, leather, fabric and paper

Features

• Clear to slightly cloudy gel, thixotropic, high viscosity class
• One part, no mixing, cures with atmospheric moisture
• Fixtures in under 5 s on ABS, nitrile rubber and phenolic (22 °C, 50% RH)
• Lap shear of 20.9 N/mm² on grit-blasted steel after 72 h at 22 °C
• Registered to NSF Category P1 (regional approval, see specification)
• Heat-ageing data from 60 °C to 120 °C in the Henkel data sheet

Key specifications

Selecting the right option

For a thin liquid grade see Loctite 438 Black Toughened Instant Adhesive 25ml (black, rubber toughened) or Loctite 460 Low Odour Low Bloom Instant Adhesive 25ml (low odour, low bloom).

For other instant adhesive formats see Loctite 410 Black Toughened Instant Adhesive 20g.

Using it

Thin bond lines give fast cure speeds, and increasing the bond gap decreases the cure rate. Henkel advises an activator for large gaps; see Loctite 7452 Cyanoacrylate Accelerator 20g.

To improve bonding on low energy plastic surfaces, Loctite primer may be applied to the bond area.

Curing continues for at least 24 hours before full chemical and solvent resistance develops. Allow full strength to develop before service loads, typically 24 to 72 hours.

Storage and handling

Store unopened in a dry place at 2 °C to 8 °C. Storage below 2 °C or above 8 °C can adversely affect product properties.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. The Henkel data sheet states no operating temperature range; it shows hot-strength and heat-ageing graphs only. Read the safety data sheet before use.

Frequently asked questions

How fast does Loctite 454 fixture?

At 22 °C and 50% RH it reaches 0.1 N/mm² in 30 to 60 seconds on steel and in under 5 seconds on ABS, nitrile rubber and phenolic.

How strong is Loctite 454 on steel?

Lap shear is 20.9 N/mm² on grit-blasted steel after 72 hours at 22 °C (ISO 4587).

How long should Loctite 454 cure before loading?

Allow full strength to develop before service loads, typically 24 to 72 hours depending on bond gap, materials and conditions.

What gap can Loctite 454 fill?

Henkel gives no gap-fill figure. Thin bond lines cure fastest and a larger gap slows the cure, so keep the joint close-fitting.

Is Loctite 454 approved for food areas?

Henkel states it is registered to NSF Category P1 as a sealant where there is no possibility of food contact in and around food processing areas, and notes this is a regional approval. Contact AIMS if you need a certificate for a specific application.

How should Loctite 454 be stored?

Unopened and dry at 2 °C to 8 °C.
