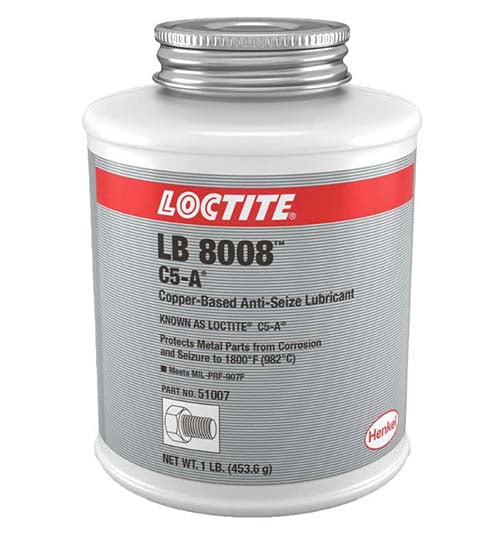

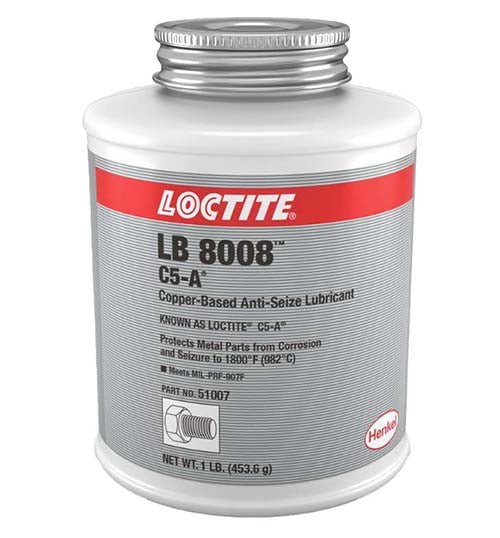

Loctite 51007 C5-A Copper Anti-Seize 454g

Loctite LB 8008 C5-A (part 51007) is a non-curing, copper-coloured anti-seize paste. It shields mated parts from high-temperature seizing and galling, so studs, bolts, flanges and gaskets come apart more easily and in cleaner, better condition.

Henkel lists it for maintenance work in petroleum and chemical plants, steel mills, power plants, marine and foundries. It suits copper, brass, cast iron, steel and all alloys including stainless steel.

Where this product is used

• Studs, bolts, nuts and flanges exposed to high temperature
• Exhaust manifold and brake calliper bolts
• Flanges and gaskets in petroleum and chemical plants
• Fixings in steel mills, power plants and foundries
• Marine fittings

Features

• Shields against high-temperature seizing and galling
• Smooth copper-coloured paste, non-curing
• Typical operating range -29 °C to +982 °C
• Torque coefficient K of 0.16 on 1/2 in grade 8 steel bolts with grade 5 nuts, against 0.27 solvent cleaned and not lubricated
• Helps develop greater clamp load for the same torque, with more uniform clamp load across a series of bolts
• Tested to the requirements of MIL-PRF-907-H; contact Henkel for details
• Suits copper, brass, cast iron, steel and alloys including stainless steel

Key specifications

Selecting the right option

If the joint is stainless steel or a nickel alloy and you need a paste with no lead, copper, sulphur or free metals, see Loctite 51606 Heavy Duty Anti-Seize 510g. For food and beverage plant see Loctite LB 8014 Food Grade Anti-Seize 227g.

Using it

Make sure the mating surfaces are clean and free of grease.

Apply a thin coating to the threads and flats of the nuts and bolts, then assemble.

Torque follows T = K x F x D, where K is the torque coefficient, F the clamp force and D the bolt diameter. Wear a dust mask when grinding or wire brushing.

Storage and handling

Store the unopened container in a dry location, optimally between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidisers. Read the safety data sheet before use.

Frequently asked questions

What temperature range does Loctite C5-A handle?

Henkel gives a typical operating range of -29 °C to +982 °C.

What materials can Loctite C5-A be used on?

Copper, brass, cast iron, steel and all alloys including stainless steel, plus plastics and non-metallic gasketing materials.

Does Loctite C5-A meet a military specification?

Henkel states it is tested to the requirements of MIL-PRF-907-H and asks you to contact Henkel for details.

What is the torque coefficient of Loctite C5-A?

K is 0.16 on 1/2 in steel bolts (grade 8) and nuts (grade 5), against 0.27 solvent cleaned and not lubricated.

How do I apply Loctite C5-A?

Clean the mating surface so it is free of grease, apply a thin coating to the threads and flats of the nuts and bolts, then assemble.

Can Loctite C5-A be used in oxygen systems?

No. Henkel does not recommend it for pure oxygen or oxygen-rich systems.
