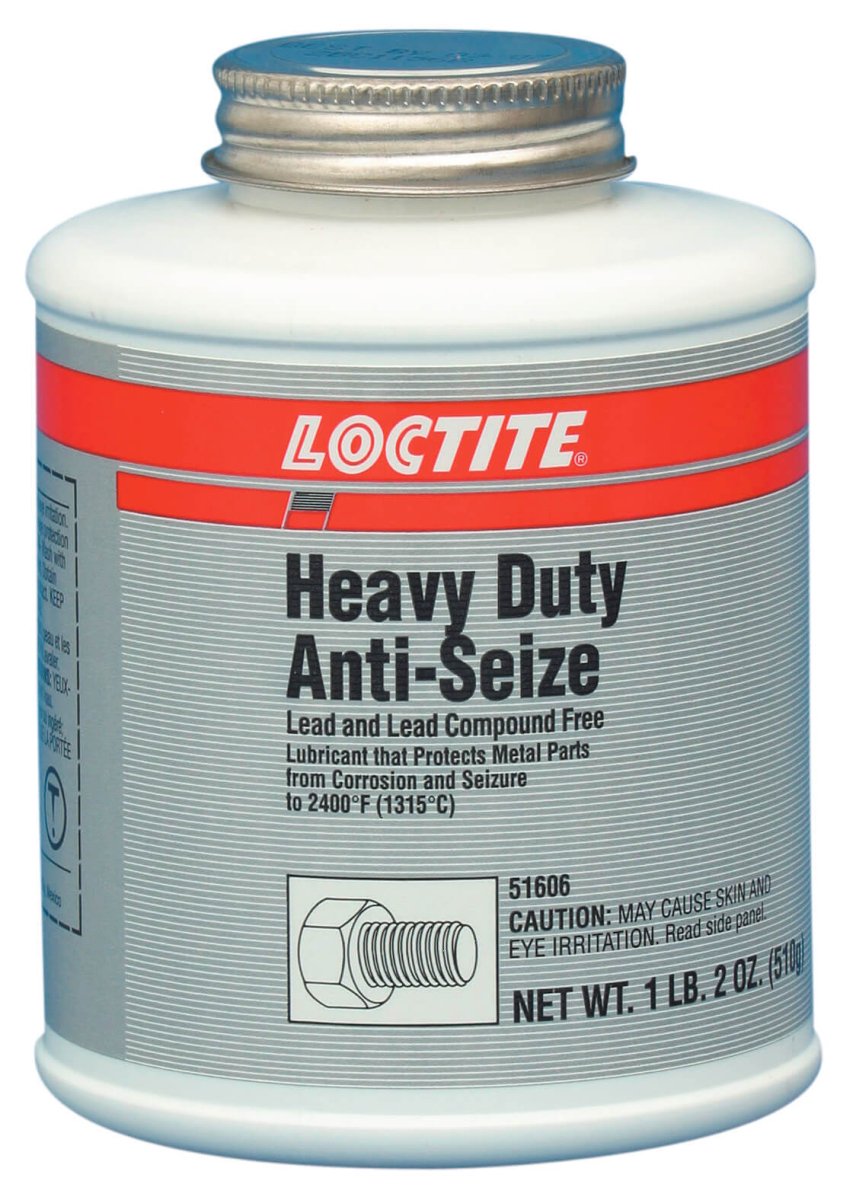

Loctite 51606 Heavy Duty Anti-Seize 510g

Loctite LB 8009 Heavy Duty Anti-Seize (part 51606) is a grey, non-curing paste based on graphite and calcium fluoride. It is free from lead, copper, sulphur and their compounds, and contains no free metals.

It suits bolts, screws, studs, pipe joints, nuts, plugs and bushings, and for heat exchangers, dies, shear blades and mechanical packings. It is compatible with stainless steel and other nickel alloys.

Where this product is used

• Bolts, screws, studs and nuts on stainless steel and nickel alloys
• Pipe joints, plugs and bushings
• Heat exchangers
• Extruding and forming dies, shear blades and metal bending
• Mechanical packings
• Chemical plants, oil refineries, power plants, paper mills, steel mills and foundries

Features

• Graphite and calcium fluoride formulation, grey paste
• No lead, copper, sulphur or their compounds, and no free metals
• Compatible with stainless steel and other nickel alloys
• Operating range -29 °C to +1,315 °C
• Non-curing
• Torque coefficient K of 0.16 on 12.7mm grade 8 steel bolts with grade 5 nuts, against 0.27 solvent cleaned and not lubricated

Key specifications

Choosing the right option

For a copper-based paste see Loctite 51007 C5-A Copper Anti-Seize 454g; for a nickel-based paste see Loctite 771 Nickel Anti-Seize Lubricant 500g. Compare the operating range and composition on each page against your joint.

See also: Loctite 51007 C5-A Copper Anti-Seize 454g, Loctite 771 Nickel Anti-Seize Lubricant 500g, Loctite LB 8014 Food Grade Anti-Seize 227g, Loctite LB 8504 Graphite Synthetic Anti-Seize Lubricant - 454g.

Using it

Make sure the mating surfaces are clean and free of grease.

Apply a thin coating to the mating surfaces and assemble. Do not thin the product.

Torque follows T = K x F x D, where K is the torque coefficient, F the clamp force and D the bolt diameter. Use a dust mask when grinding or wire brushing.

Storage and handling

Store the unopened container in a dry location, optimally between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidisers. Read the safety data sheet before use.
