B-Safe Low Profile Purlin Mounted Anchor, Spandek Roof Sheeting, 15 kN

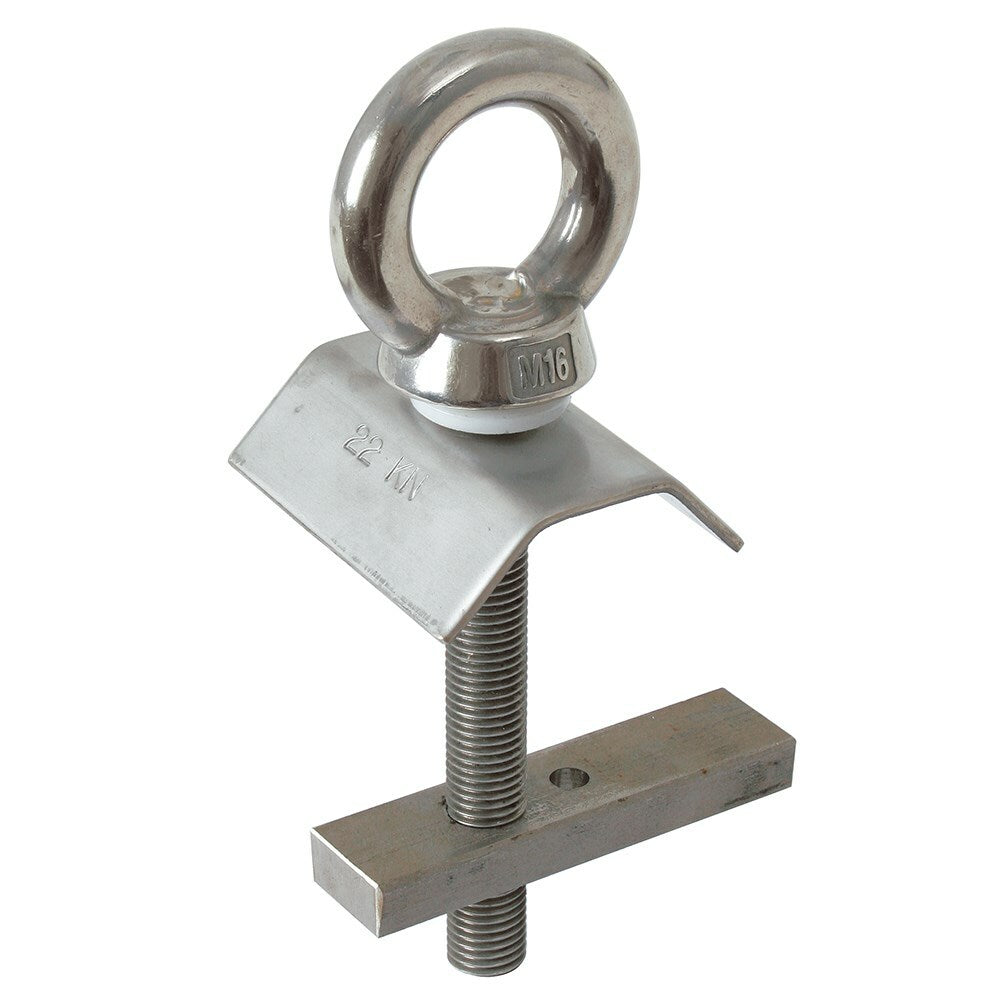

The B-Safe low profile purlin mounted anchor, code BSC5006LSLP-L, is a permanent anchor point made from 316 grade stainless steel with a 16mm x 120mm anchor bolt, for low profile Spandek roof sheeting fixed to steel purlins. B-Safe rates its purlin mounted anchors at 15 kN, or 1 person. They suit commercial, industrial and residential applications and install quickly.

B-Safe also says the structure the anchor is installed in must have sufficient strength to sustain the applied load, and refers to AS/NZS 1891.4. B-Safe's technical guide says an anchorage point must be able to withstand a minimum load of 15 kN for one person and 21 kN for two persons, and the anchorage should be inspected before each connection. This anchor is rated for one person.

Where this product is used

• Permanent anchor point on purlin supported Spandek (low profile trapezoidal) roofs
• Commercial, industrial and residential applications

Features

• 316 grade stainless steel with a 16mm x 120mm anchor bolt
• Rated 15 kN, or 1 person
• Low profile design for Spandek roof sheeting
• Designed as a permanent purlin mounted anchor with quick and easy installation

Key specifications

Choosing the right option

Match the anchor to the roof profile (Spandek, 0.42 BMT), the purlin (steel C purlin 100 x 50 x 1.5mm or heavier) and the purlin spacing (up to 1200mm).
