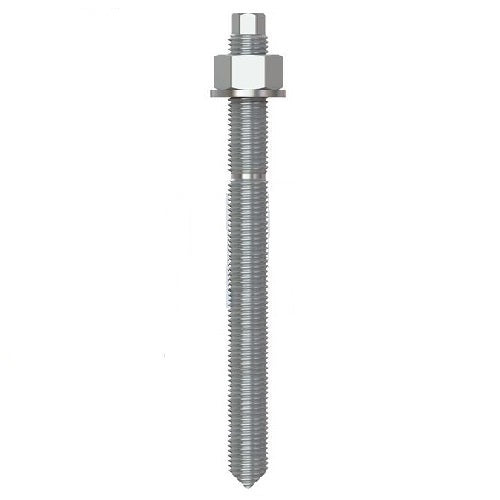

Stud Chemical Anchor Kit Class 5.8 Chisel Point Hot Dip Galvanised

• HEC.
• Class 5.8.
• Hot Dip Galvanised.

About Chemical Anchor

• Hobson Chemical Anchor Studs are single unit non expansion type fasteners that are used in pre-drilled holes.
• They comprise of a chisel point stud available in flat cut or external hexagon type head, a nut and washer.
• Fixing of the stud is achieved by inserting a suitable curing resin into the hole using a glass chemical capsule or injection type adhesive system.
• The stud is then inserted into the hole and rotated either by hammer drill for (glass capsule) or hand for (injection type) to allow for proper setting into the resin.
• Anchor can be loaded once appropriate curing time has been reached.

Features

• Good load capability
• Non expanding type fastener
• Resistant to vibration
• Complete sealing of hole
• Can be installed close to edge
• Reduced spacing between anchors
• Excellent holding power in weak base materials

Applications

• Ideally used in applications that requires a light, medium or heavy-duty anchor for fixing into concrete, brick or block base materials.
• Typically used by contractors in the construction, building and engineering trades.
• Commonly used in applications which require a non expansion type fastener.
• Can be used in a range of applications such as internal and external residential fixings, holding down fixtures such as machinery, pumps, motors, fabrication and suspension work, railing, stairs, balconies, etc.
