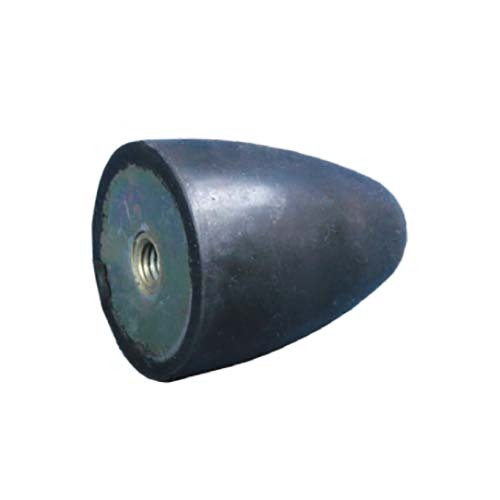

Mackay Conical buffer, M10

Mackay conical buffers give inexpensive and effective control of machinery vibration, shock and acoustic noise, are used for controlling impact, and may be used as snubbing rubbers where excessive shock loads are met in resiliently mounted equipment. Mackay designs them specifically to control impact and torque reaction loads.

Available as five sizes with M6, M8, M10, M12 and M16 threads, from the 19 x 25mm M115008 to the 80 x 95mm M115015. It has a max dynamic deflection of 8 to 37mm and a max energy absorption of 3 to 120 joules across the sizes. The range uses Multicushion Studs, and M12 studs are not available from Mackay.

Where this product is used

• Inexpensive and effective control of machinery vibration, shock and acoustic noise
• Controlling impact, and snubbing rubbers where excessive shock loads are met in resiliently mounted equipment
• Controlling impact and torque reaction loads

Features

• Designed specifically to control impact and torque reaction loads
• Five sizes with M6, M8, M10, M12 and M16 threads
• Load must be placed on the metal surface and not on the stud
• Max energy absorption of 3 to 120 joules, depending on size

Key specifications

Choosing the right option

Choose by thread and by the load, deflection and energy you need. Load must be placed on the metal surface and not on the stud. All properties are nominal.
