Mackay Conical buffer

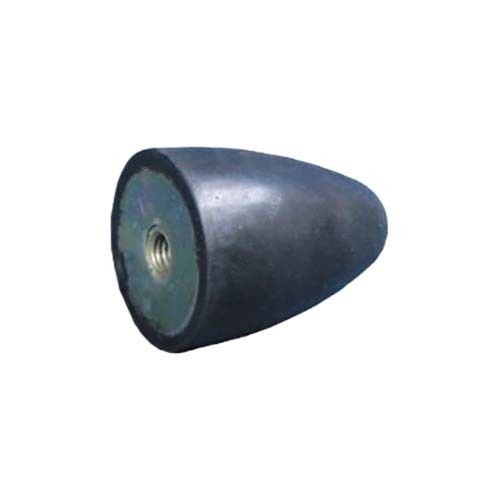

Mackay M172M8 is a conical buffer. Conical buffers give inexpensive and effective control of machinery vibration, shock and acoustic noise, are used for controlling impact, and may be used as snubbing rubbers where excessive shock loads are met in resiliently mounted equipment. They are designed specifically to control impact and torque reaction loads.

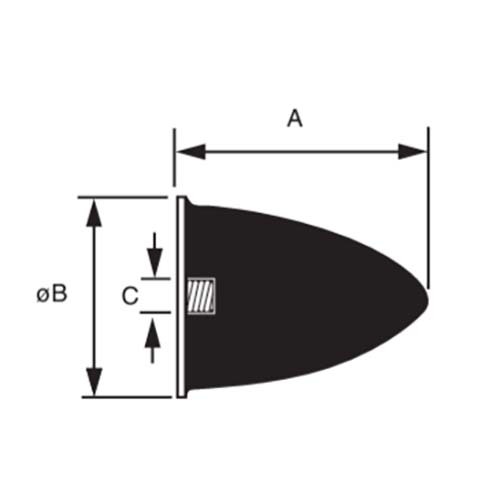

The M172M8 is 50mm long (A) and 42mm in diameter (B) with an M8 thread (C). It has a max dynamic deflection of 24mm and max energy absorption of 16 joules. This range uses Multicushion Studs.

Where this product is used

• Inexpensive and effective control of machinery vibration, shock and acoustic noise
• Controlling impact, and snubbing rubbers where excessive shock loads are met in resiliently mounted equipment
• Controlling impact and torque reaction loads

Features

• Designed specifically to control impact and torque reaction loads
• Uses Multicushion Studs
• Load must be placed on the metal surface and not on the stud
• Max dynamic deflection of 24mm and max energy absorption of 16 joules

Key specifications

Choosing the right option

Ask Mackay which applies before you rely on either. Load must be placed on the metal surface and not on the stud. All properties are nominal.
