M2 Flat Round Washer, 316 Stainless Steel - FWAA4M2

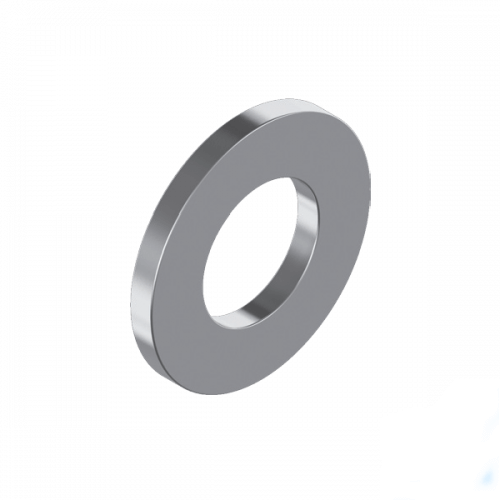

Made in 316 (A4) stainless steel, the Metric Flat Round Washer is a flat ring that spreads the clamping load of a nut or bolt head and protects the surface being fixed.

You can choose from 18 variants, covering sizes M2 to M48. Pack quantities depend on size: packs of 10 to 200.

The A4 (316) grade is stainless steel with added molybdenum, which helps it hold up where salt, pool chemicals or washdown chemicals are present. It is the more corrosion-resistant of the two common stainless grades, at a higher cost than 304. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Bulk jobs and trade or maintenance stores buying in larger packs
• Under nuts and bolt heads to spread the load
• Protecting soft or painted surfaces
• Small sizes for enclosures, instruments and light fittings
• Bridging oversize or slotted holes
• Food and beverage processing equipment

Features

• Supplied in packs of 10 to 200
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• Range covers M2 to M48 in 18 variants
• Spreads clamping load under bolts and nuts
• Protects the surface from damage

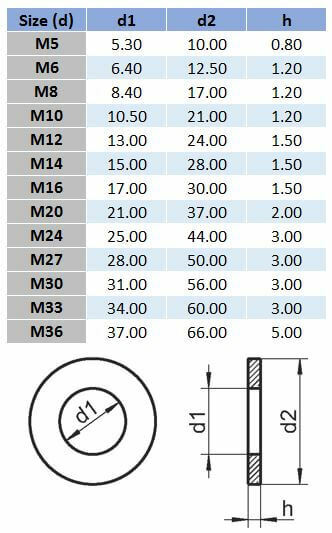

Key specifications

Selecting the right option

Match the washer to the fastener size, and check outer diameter and thickness for the load. Washers are listed by the size of bolt they suit. Use stainless washers with stainless bolts to avoid mixed-metal corrosion. For indoor and general outdoor use where chlorides are not a concern, the A2 (304) version is the lower-cost option: Inox Standard Flat Round Washer - 304 Stainless Steel.

Related products

Also available: Metric Flat Round Washer - 304 Stainless Steel and Flat Round Washer DIN125A Stainless Steel. Often used with: Metric Hex Bolt - 316 Stainless Steel, Metric Hex Set Bolt (Full Thread) - 316 Stainless Steel and Metric Standard Hex Nut - 316 Stainless Steel.
