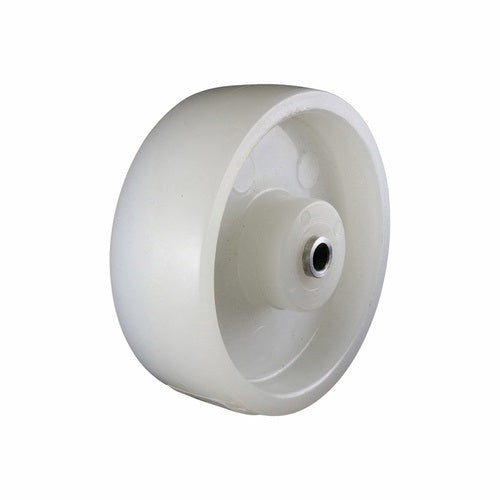

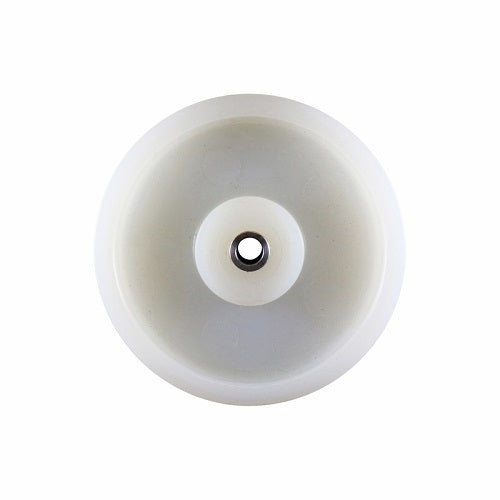

EasyRoll Nylon Wheel, Plain Bearing, White, 75 mm | W48G75SS
Available
The EasyRoll white nylon wheel is available in 75 to 125 mm diameters, with plain bearings. The load capacity is 80 to 100 kg per wheel, depending on the size (manufacturer-stated).
EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Ratings are EHI general guidance for the wheel material (manufacturer-stated).
Where this product is used
- Heavy loads on smooth concrete floors
- Replacing wheels on trolleys and carts
- Workshop, warehouse and factory equipment
Features
- 75 to 125 mm diameter, 32 to 34 mm tread
- Load capacity 80 to 100 kg per wheel (manufacturer-stated)
- Plain bearings
- Nylon wheel material, rated by EHI for shock absorbency, load capacity and floor protection (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Wheel material | Nylon |
| Colour | White |
| Wheel diameter | 75 to 125 mm |
| Hub | 40 mm |
| Tread width | 32 to 34 mm |
| Bore ID | 12 mm |
| Bush ID | 8 mm |
| Load capacity per wheel | 80 to 100 kg |
| Bearing | Plain bearing |
Options and part numbers
| Option | Part number | Wheel diameter (mm) | Hub (mm) | Tread (mm) | Bore ID | Bush ID | Load capacity (kg) |
|---|---|---|---|---|---|---|---|

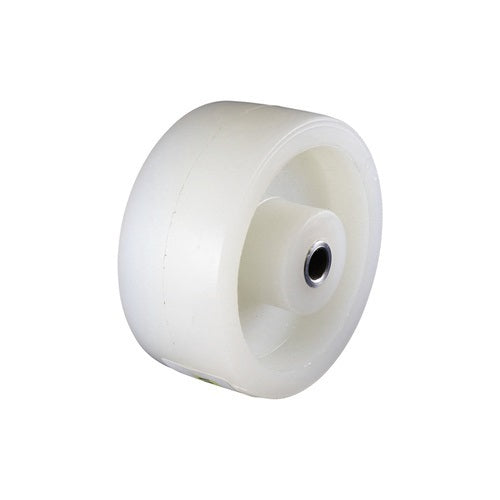

| 75 mm | W48G75SS | 75 | 40 | 32 | 12 mm | 8 mm | 80 |
| 100 mm | W48G100SS | 100 | 40 | 34 | 12 mm | 8 mm | 100 |

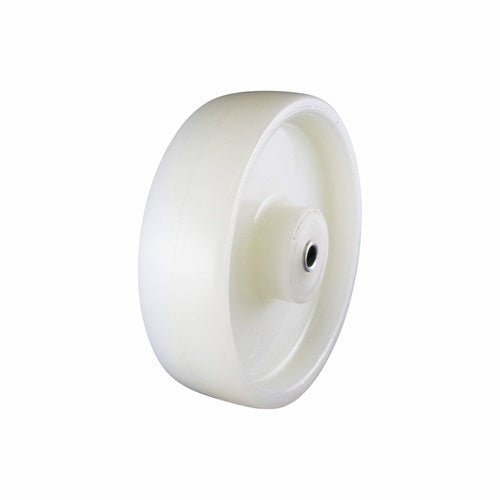

| 125 mm | W48G125SS | 125 | 40 | 34 | 12 mm | 8 mm | 100 |
Selecting the right option
Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. The bore ID and bush ID are as listed by EHI, so confirm the axle size you need with AIMS before ordering. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Plain bearings consist of a bearing shell solidly connected with the wheel, which turns around an axle tube bolted to the housing. EHI states that under normal conditions they are maintenance free and corrosion resistant (manufacturer-stated). Load capacity is shown per wheel (manufacturer-stated). For castors on a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries (manufacturer-stated). If you are unsure which wheel suits your application, contact AIMS with the load, the floor type and how the equipment is used.
