EasyRoll Nylon Wheel, Dual Ball Bearing, Black, 100 mm | W87K100
Available
The EasyRoll black nylon wheel is available in 100 to 200 mm diameters, with dual ball bearings. The load capacity is 400 to 550 kg per wheel, depending on the size (manufacturer-stated).
EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Ratings are EHI general guidance for the wheel material (manufacturer-stated).
Where this product is used
- Heavy loads on smooth concrete floors
- Replacing wheels on trolleys and carts
- Workshop, warehouse and factory equipment
Features
- 100 to 200 mm diameter, 38 to 42 mm tread
- Load capacity 400 to 550 kg per wheel (manufacturer-stated)
- Dual ball bearings (manufacturer-stated)
- Nylon wheel material, rated by EHI for shock absorbency, load capacity and floor protection (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Wheel material | Nylon |
| Colour | Black |
| Wheel diameter | 100 to 200 mm |
| Hub | 62 mm |
| Tread width | 38 to 42 mm |
| Bore ID | 20 mm |
| Bush ID | 12 mm |
| Load capacity per wheel | 400 to 550 kg |
| Bearing | Dual ball bearing |
Options and part numbers
| Option | Part number | Wheel diameter (mm) | Hub (mm) | Tread (mm) | Bore ID | Bush ID | Load capacity (kg) |
|---|---|---|---|---|---|---|---|

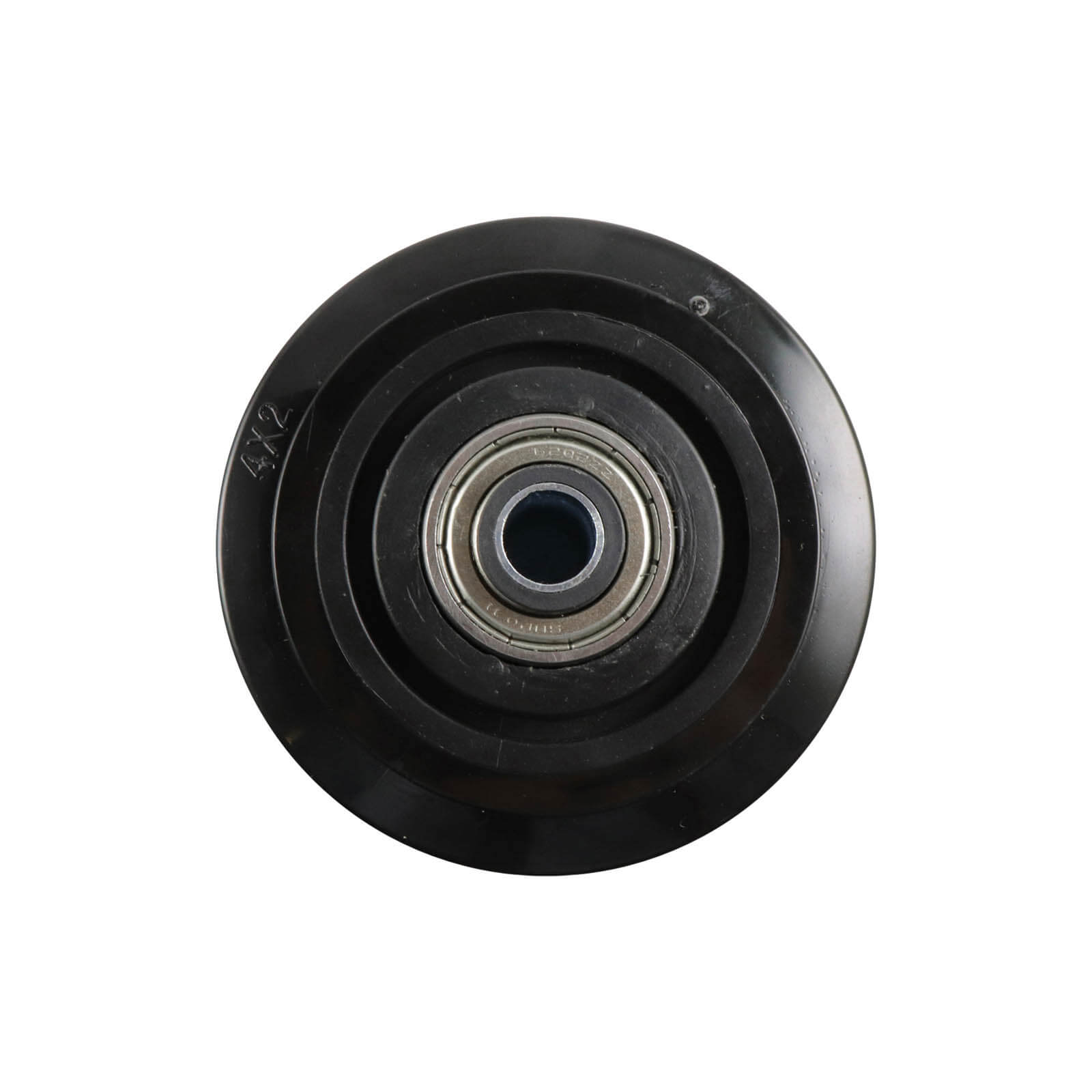

| 100 mm | W87K100 | 100 | 62 | 42 | 20 mm | 12 mm | 400 |

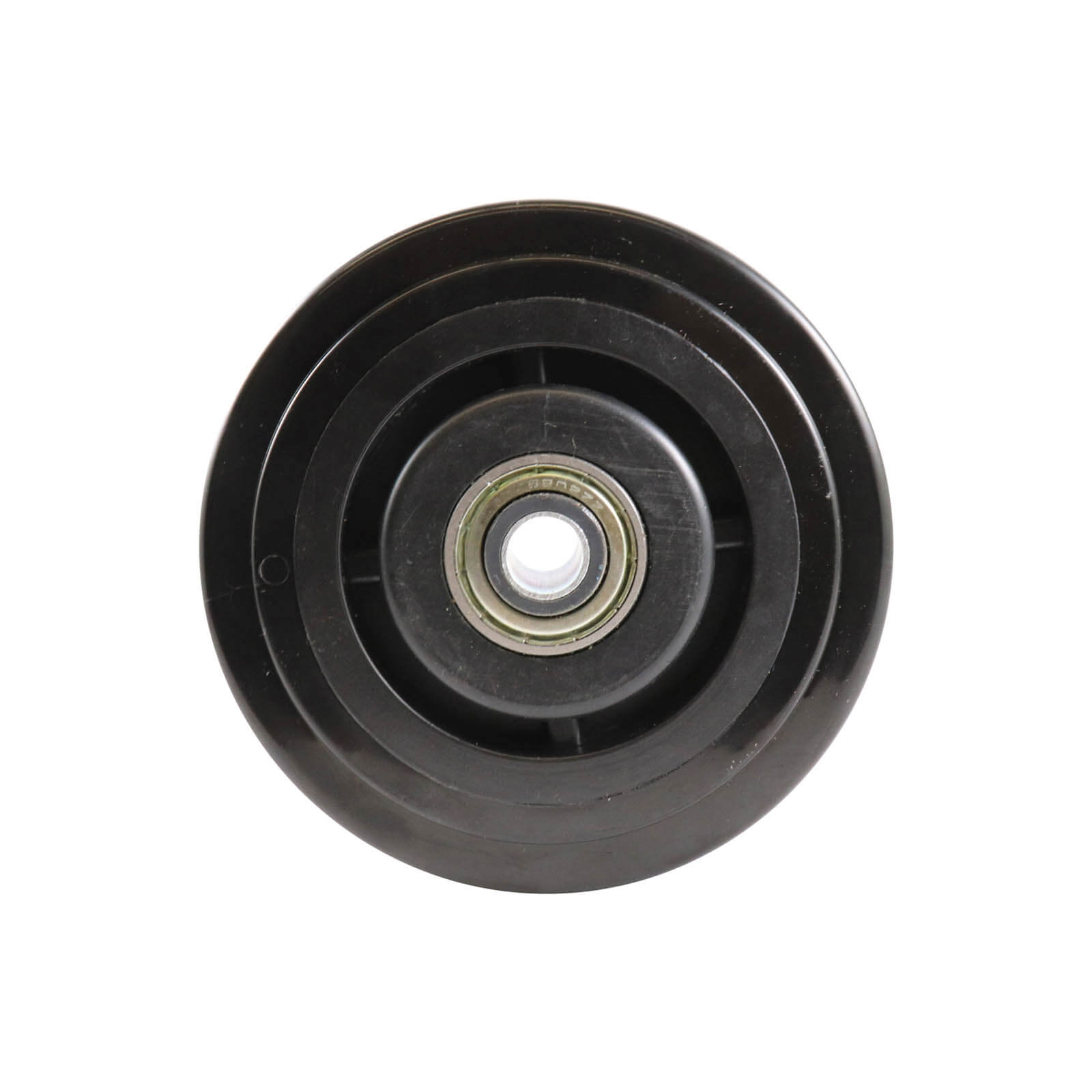

| 125 mm | W87K125 | 125 | 62 | 42 | 20 mm | 12 mm | 450 |

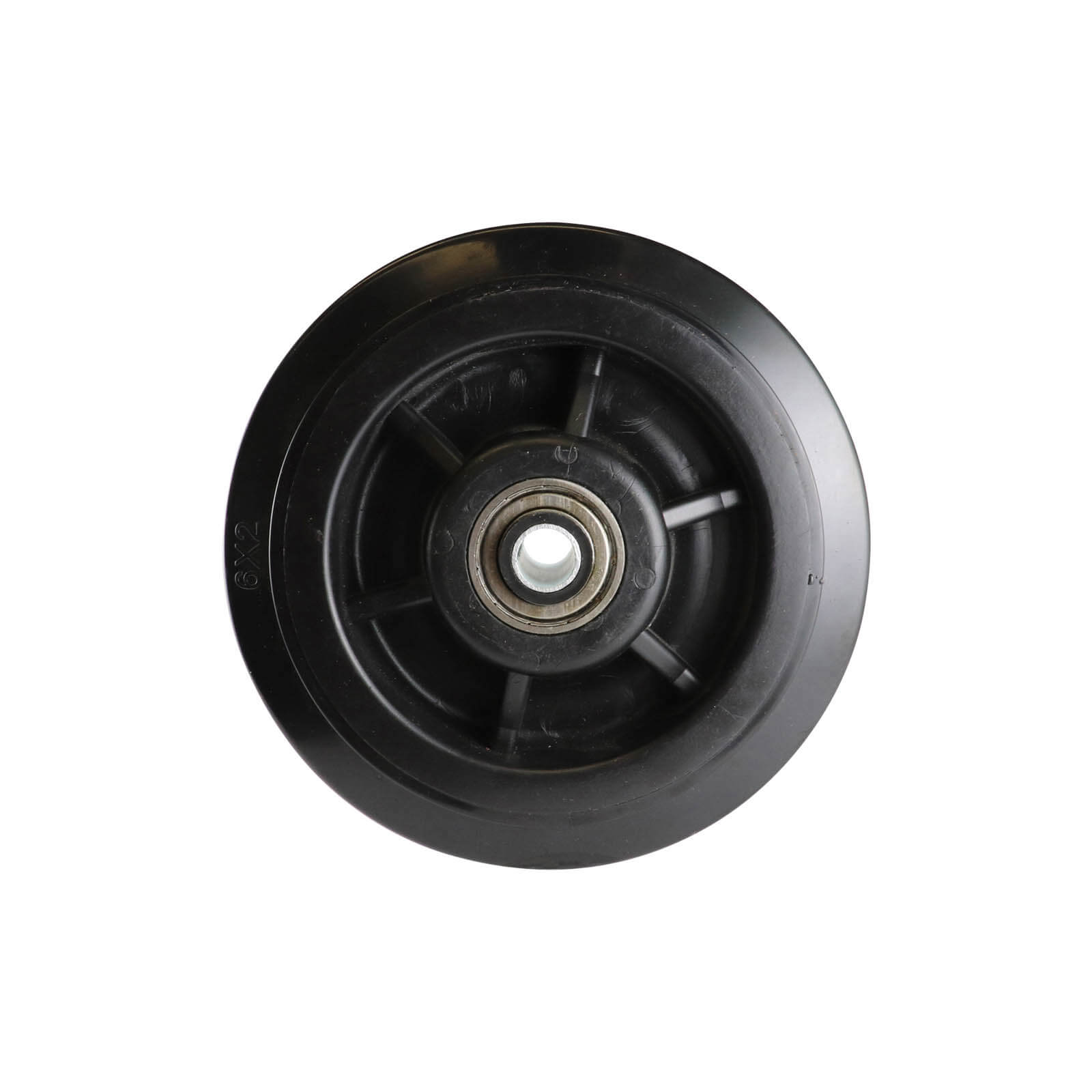

| 150 mm | W87K150 | 150 | 62 | 38 | 20 mm | 12 mm | 500 |

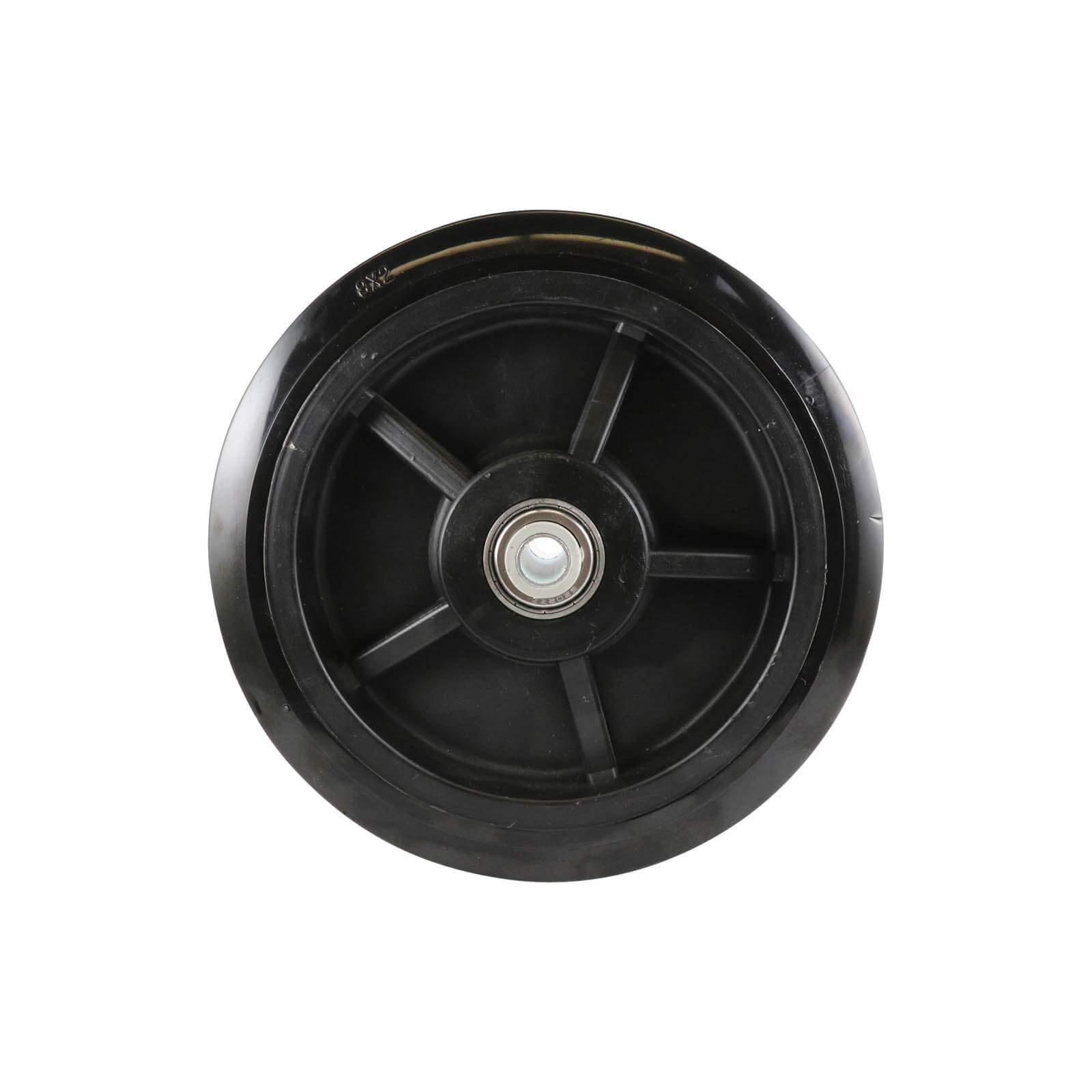

| 200 mm | W87K200 | 200 | 62 | 41 | 20 mm | 12 mm | 550 |
Selecting the right option
Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. The bore ID and bush ID are as listed by EHI, so confirm the axle size you need with AIMS before ordering. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Ball bearings are compact, simple bearing units, with balls rolling between the inner and outer rings in a moulded sheet metal housing (manufacturer-stated). EHI lists these wheels with dual ball bearings. Load capacity is shown per wheel (manufacturer-stated). For castors on a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries (manufacturer-stated). If you are unsure which wheel suits your application, contact AIMS with the load, the floor type and how the equipment is used.
Related products
See also EasyRoll Nylon Wheel - Plain Bearing, White, 75 to 125 mm, EasyRoll Polypropylene Wheel - Plain Bearing, Nylon Centre, Black, 80 to 100 mm and EasyRoll Grey Rubber Wheel - Roller Bearing, Nylon Centre, 160 to 200 mm.
