Brady M4-125-075-342 PermaSleeve B-342 Heat-Shrink Wire
Available

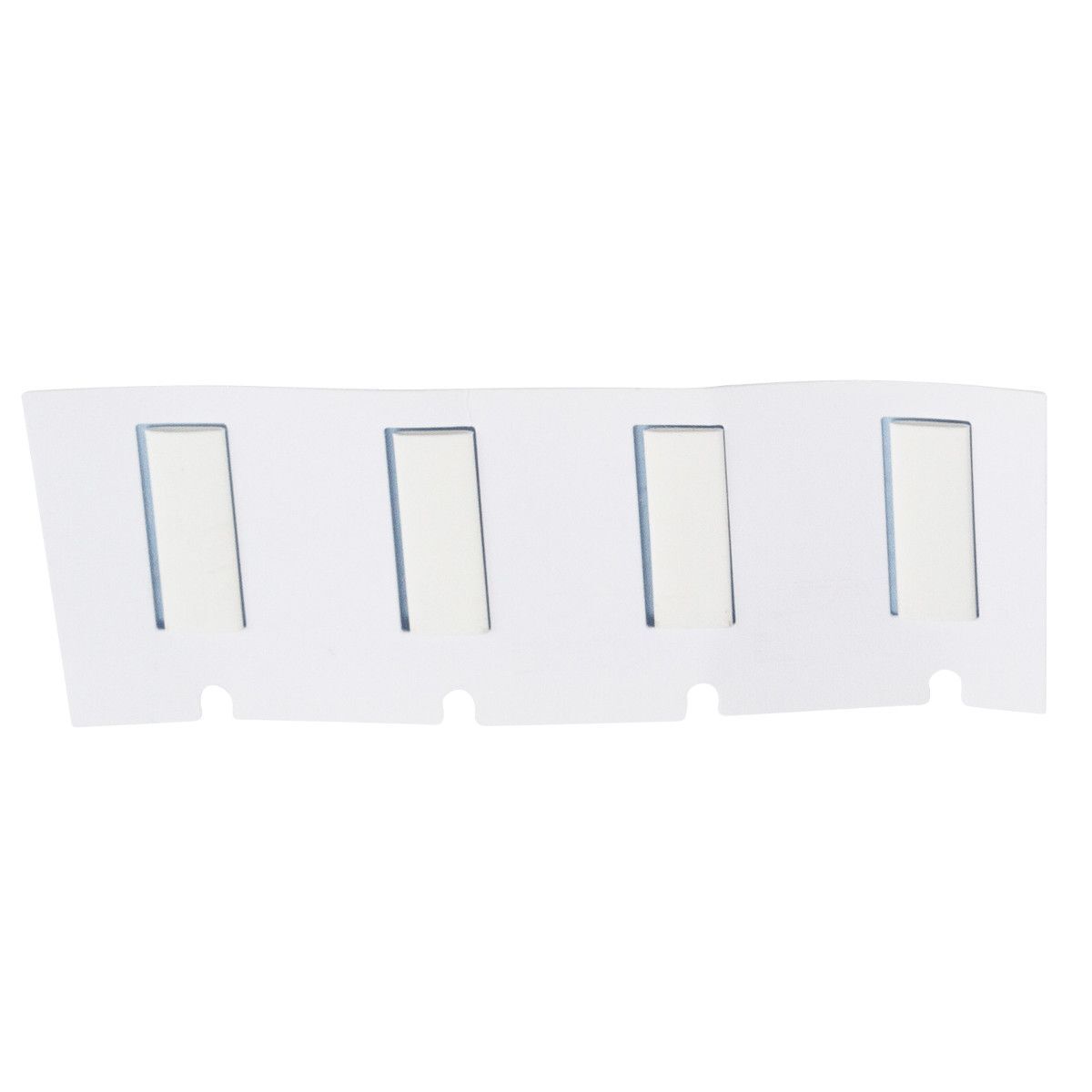

Brady PermaSleeve B-342 is a flame-retardant heat-shrink polyolefin wire marking sleeve for Brady M4 and M5 cartridge printers. The range has 15 cartridges: eight die-cut cartridges of 80 sleeves each (M4 sleeves 19.05mm wide and M5 sleeves 25.4mm wide, each in four diameters from 3.18 to 9.53mm), and seven M4C continuous cartridges of 2.13 m (7 ft) in white or yellow.
The sleeves suit the BMP41, BMP51, BMP53, M410, M510 and M511 printers (M4 and M4C cartridges) and the BMP51, BMP53, M510 and M511 (M5 cartridges). Also available: the [Brady M511 label printer](/products/brady-m511-label-printer-880964). B-342 shrinks 3:1, has a matte finish and a service temperature of -55 to 135 °C (-67 to 275 °F). It is a self-extinguishing polyolefin that resists extreme temperatures, UV light, chemicals, fuel and oil, is military grade, and is designed for military, aerospace, defence and transit wire marking. Meets UL 224 (UL Recognized), SAE AS23053/5 (Class 4) and AS-5942, SAE AS-81531 and MIL-STD-202, and is RoHS compliant to 2011/65/EU.
Where this product is used

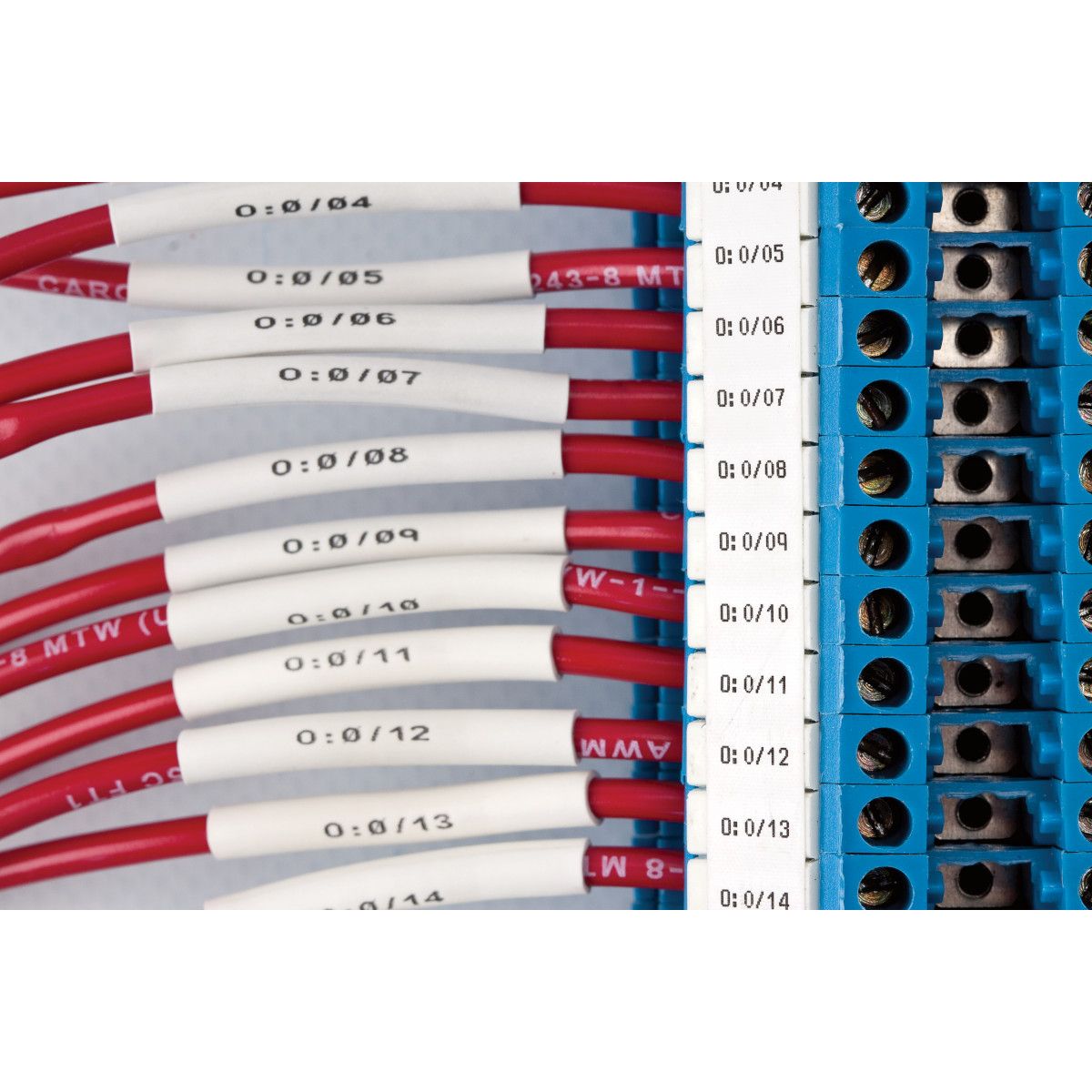

- Wire and cable labelling
- Electrical labelling of conductors

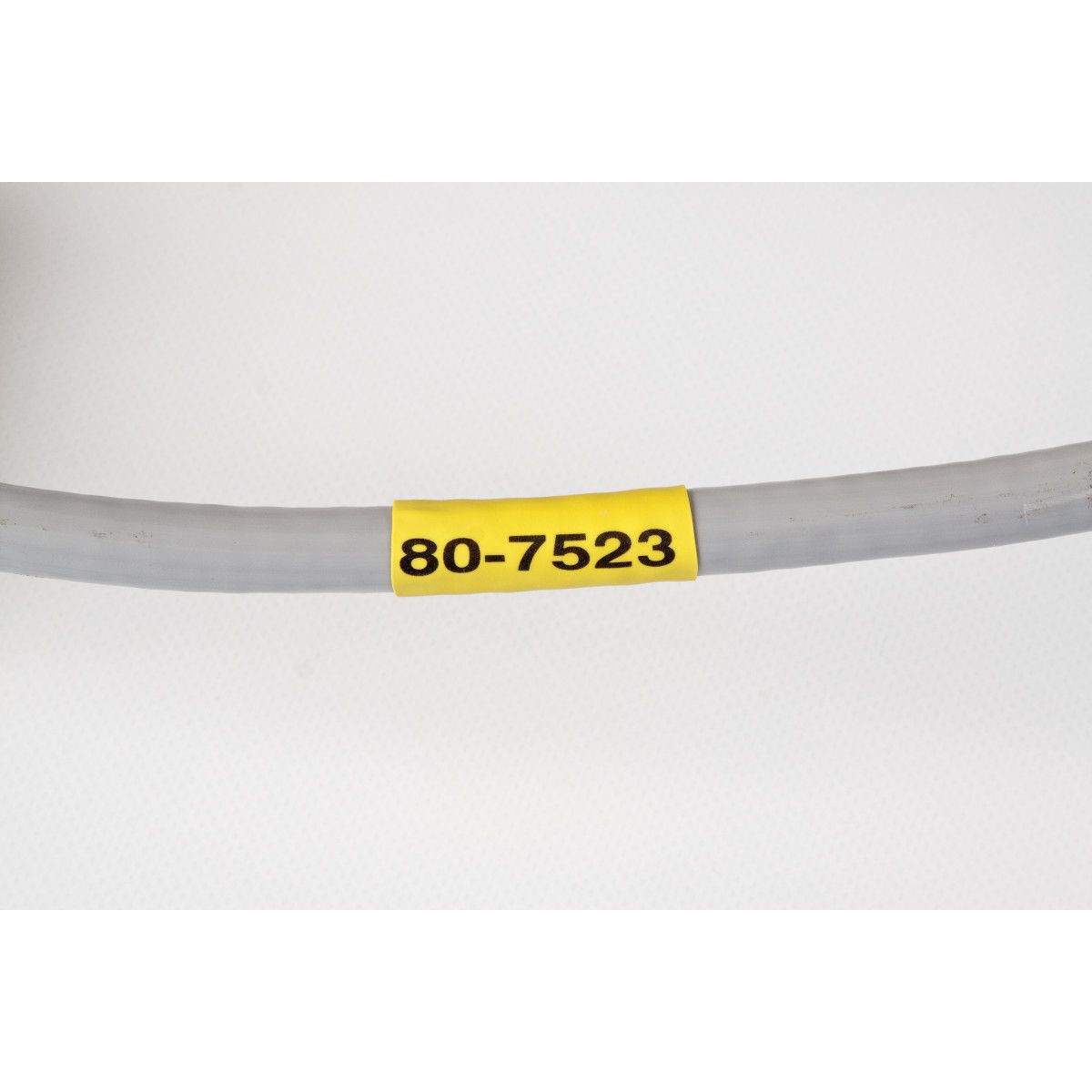

- Wire marking in military, aerospace, defence and transit applications
- Marking conductors from 1.17 to 8.13mm diameter with a size matched to the wire
Features
- 3:1 shrink ratio for a tight fit around the conductor
- Flame-retardant polyolefin with a matte finish
- Service temperature -55 to 135 °C
- Resists abrasion, fading, UV light, chemicals, fuel and oil
- Military grade
- Die-cut M4 and M5 cartridges of 80, and M4C continuous cartridges of 2.13 m
- Four sleeve diameters, 3.18 to 9.53mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | PermaSleeve B-342 Heat-Shrink Wire Marking Sleeves for M4 and M5 Printers, 3.18 to 9.53mm Dia |
| Material | Heat-shrink polyolefin, B-342, flame-retardant, matte |
| Service temperature | -55 to 135 °C (-67 to 275 °F) |
| Print method | Thermal transfer |
| Colour | Black print on white or yellow |
| Form | M4 and M5: die-cut, 80 sleeves per cartridge. M4C: continuous, 2.13 m (7 ft) per cartridge |
| Wire diameter range | 1.17 to 8.13mm across the four sizes |
| Printer compatibility | M4 and M4C: BMP41, BMP51, BMP53, M410, M510, M511. M5: BMP51, BMP53, M510, M511 |
| Standards and approvals listed | UL Recognized to UL 224, RoHS compliant to 2011/65/EU, SAE AS23053/5 (Class 4) and AS-5942, SAE AS-81531 and MIL-STD-202 |
| 3.18 | wire diameter range (mm) 1.17 to 2.79; wire gauge range 22 AWG - 16 AWG; sleeve width (mm) 19.05, 25.4 |
| 4.75 | wire diameter range (mm) 1.57 to 3.81; wire gauge range 20 AWG - 10 AWG; sleeve width (mm) 19.05, 25.4 |
| 6.35 | wire diameter range (mm) 2.39 to 5.46; wire gauge range 16 AWG - 8 AWG; sleeve width (mm) 19.05, 25.4 |
| 9.53 | wire diameter range (mm) 3.18 to 8.13; wire gauge range 12 AWG - 4 AWG; sleeve width (mm) 19.05, 25.4 |
Choosing the right option
Choose the sleeve by the diameter of the wire, not the cable's rating: 3.18mm sleeves fit 1.17 to 2.79mm wire (22 to 16 AWG), 4.75mm fit 1.57 to 3.81mm (20 to 10 AWG), 6.35mm fit 2.39 to 5.46mm (16 to 8 AWG) and 9.53mm fit 3.18 to 8.13mm (12 to 4 AWG). Then choose the cartridge: M4 cartridges (19.05mm wide) and M5 cartridges (25.4mm wide) hold 80 die-cut sleeves, and M4C cartridges are continuous so you cut each sleeve to length. For sleeves for the B33 printers see the B-342 single-sided heat-shrink sleeves for B33 printers, B-342 double-sided heat-shrink sleeves for B33 printers and B-345 PVDF high-temperature sleeves for B33 printers.
Related Brady products: Brady M511 label printer, B-342 single-sided heat-shrink sleeves for B33 printers, B-342 double-sided heat-shrink sleeves for B33 printers, B-345 PVDF high-temperature sleeves for B33 printers and Durasleeve 15mm wire marking carrier.
| Option | Part number | SKU |
|---|---|---|

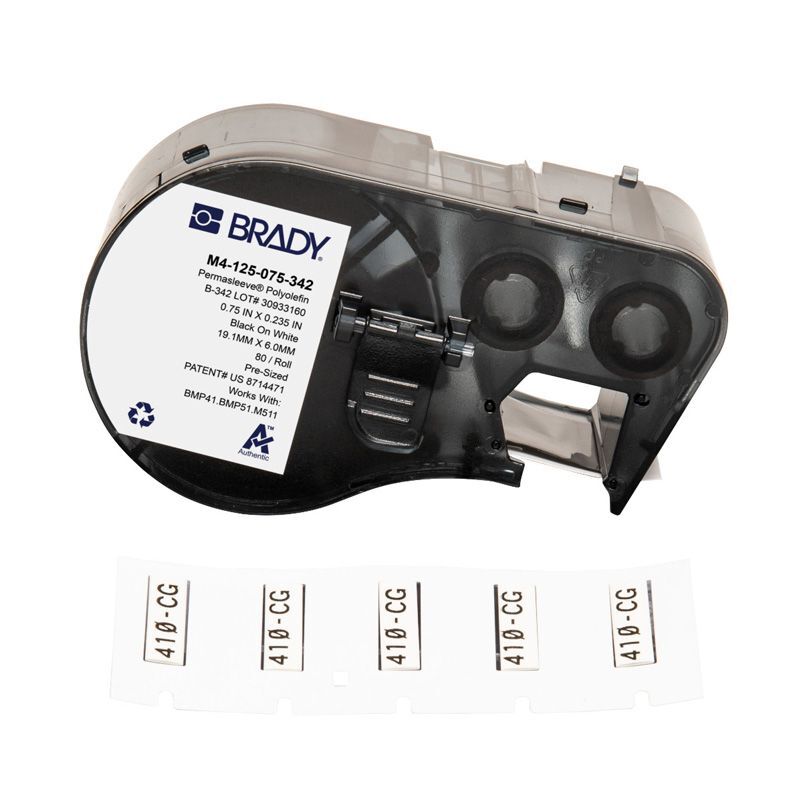

| 5.97 x 19.05mm / Black on White | M4-125-075-342 | A0204798 |

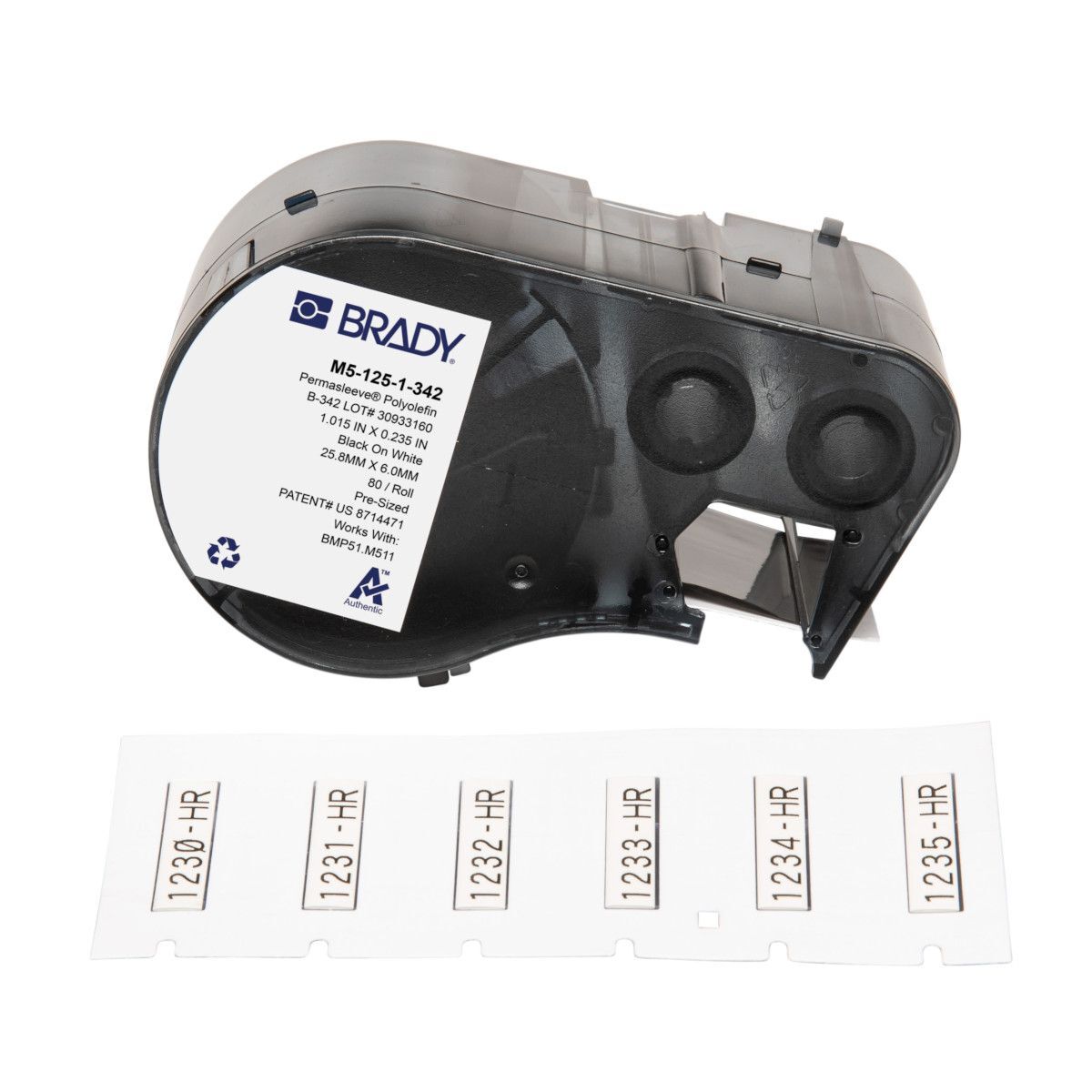

| 5.97 x 25.4mm / Black on White | M5-125-1-342 | A0204802 |

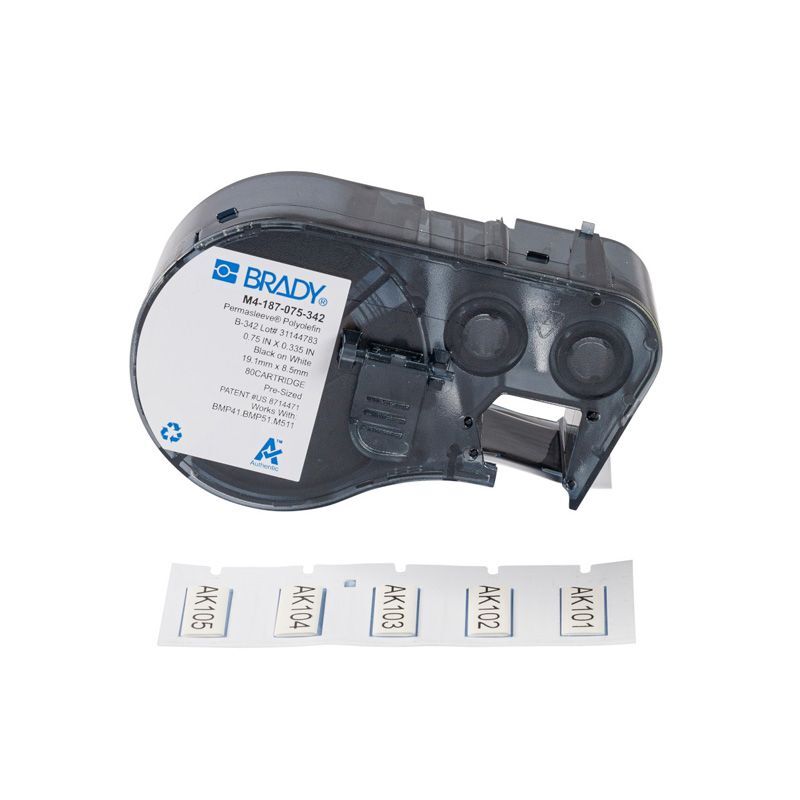

| 8.5 x 19.05mm / Black on White | M4-187-075-342 | A0204799 |

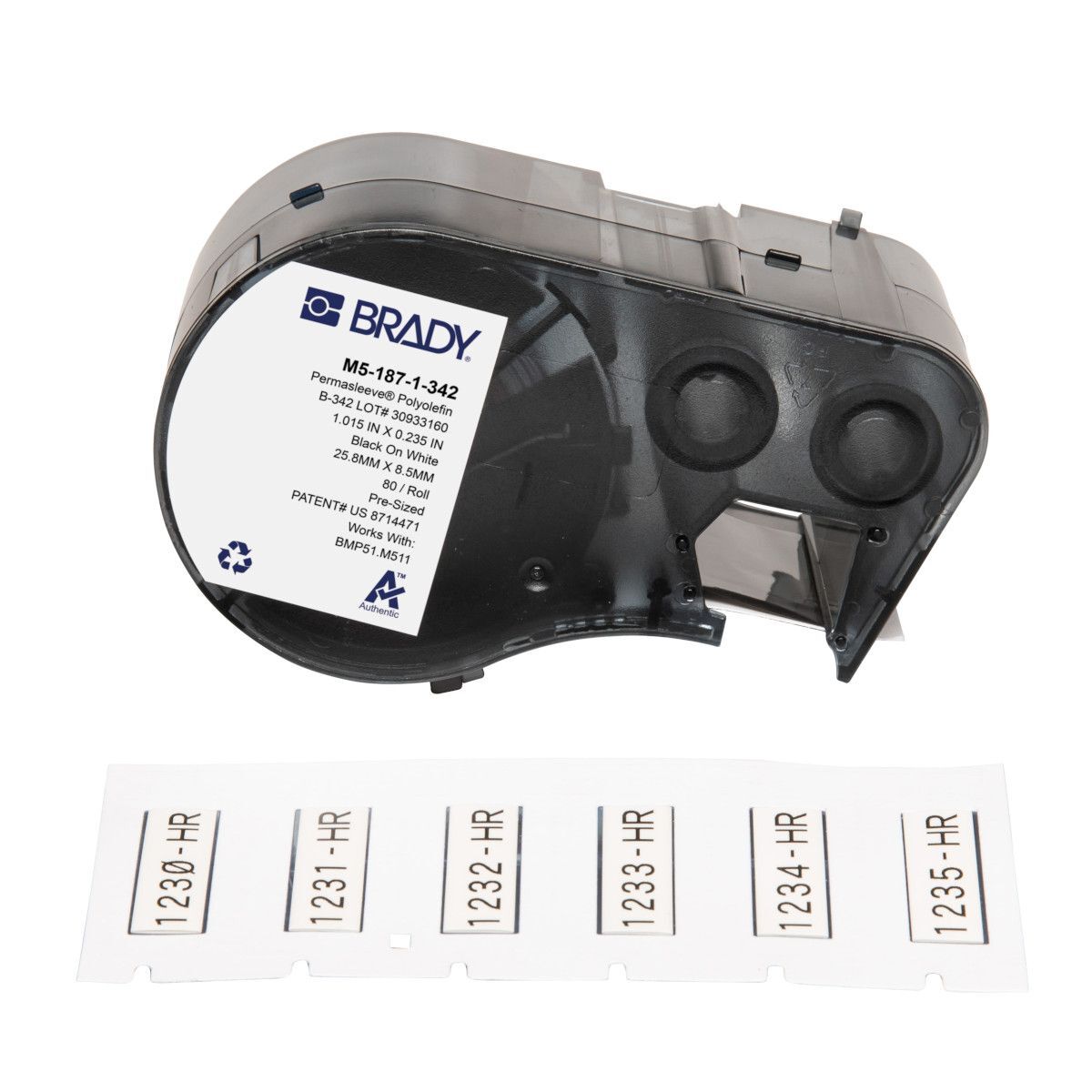

| 8.5 x 25.4mm / Black on White | M5-187-1-342 | A0204803 |

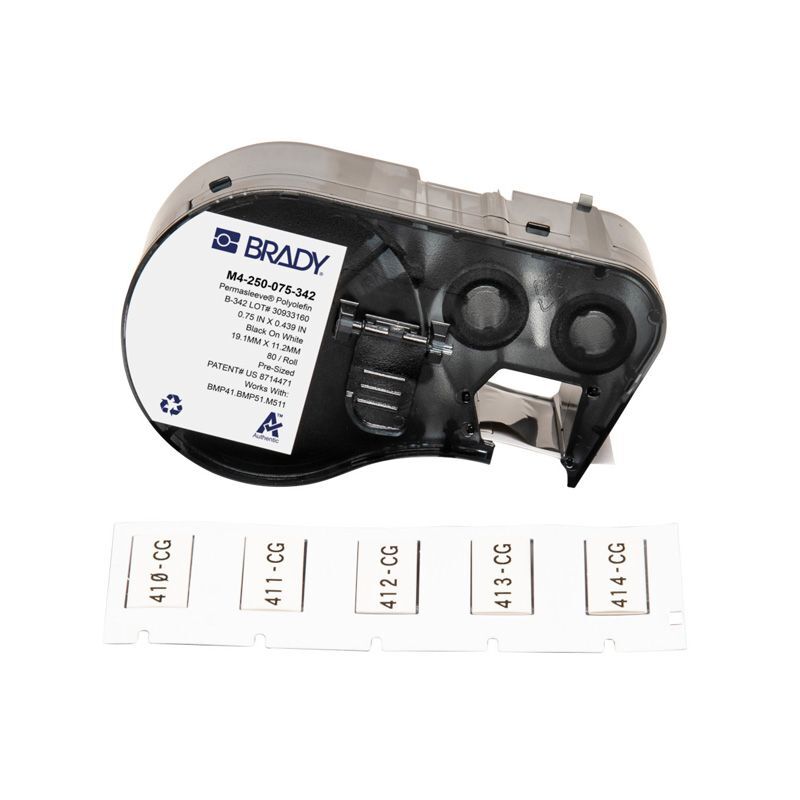

| 11.15 x 19.05mm / Black on White | M4-250-075-342 | A0204800 |

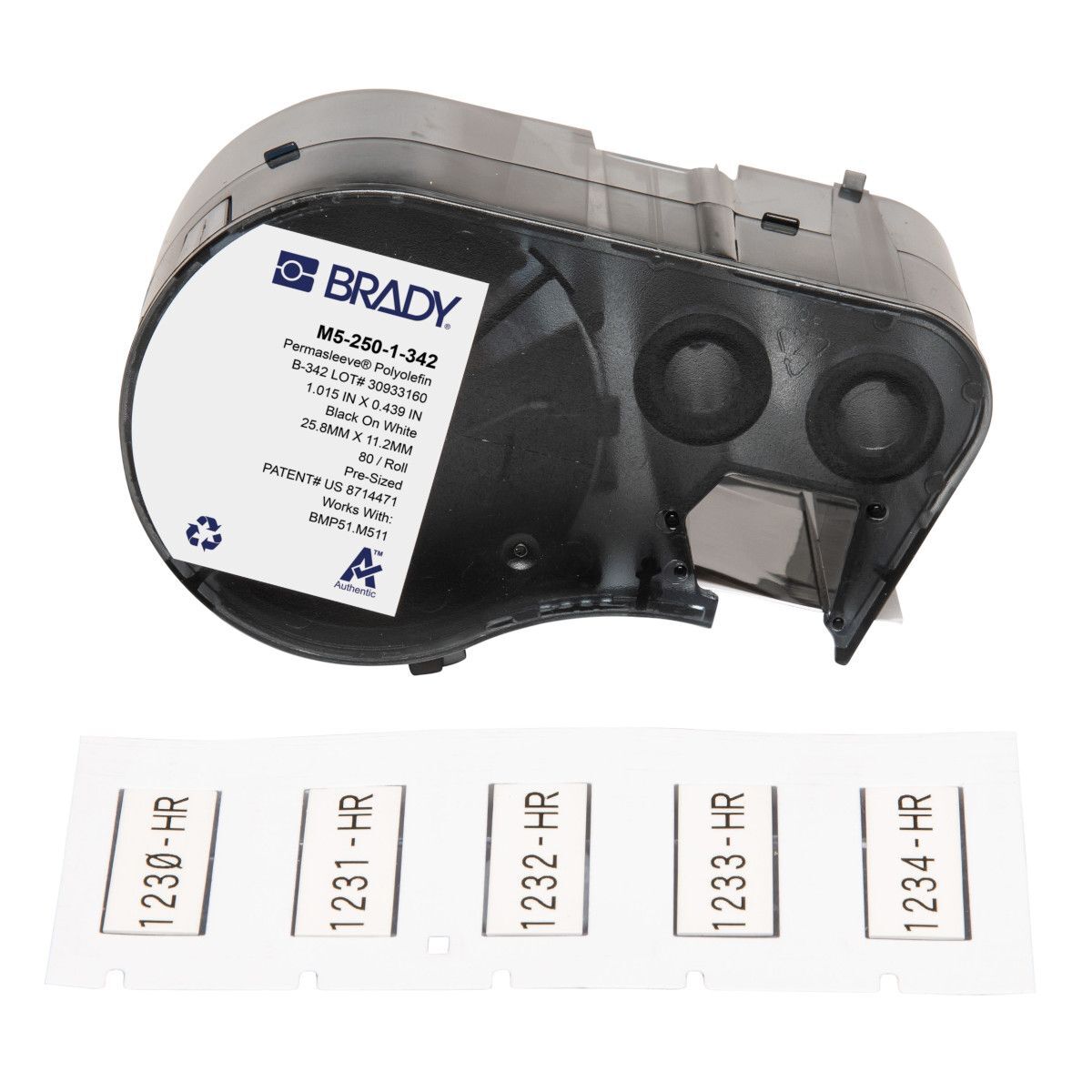

| 11.15 x 25.4mm / Black on White | M5-250-1-342 | A0204804 |

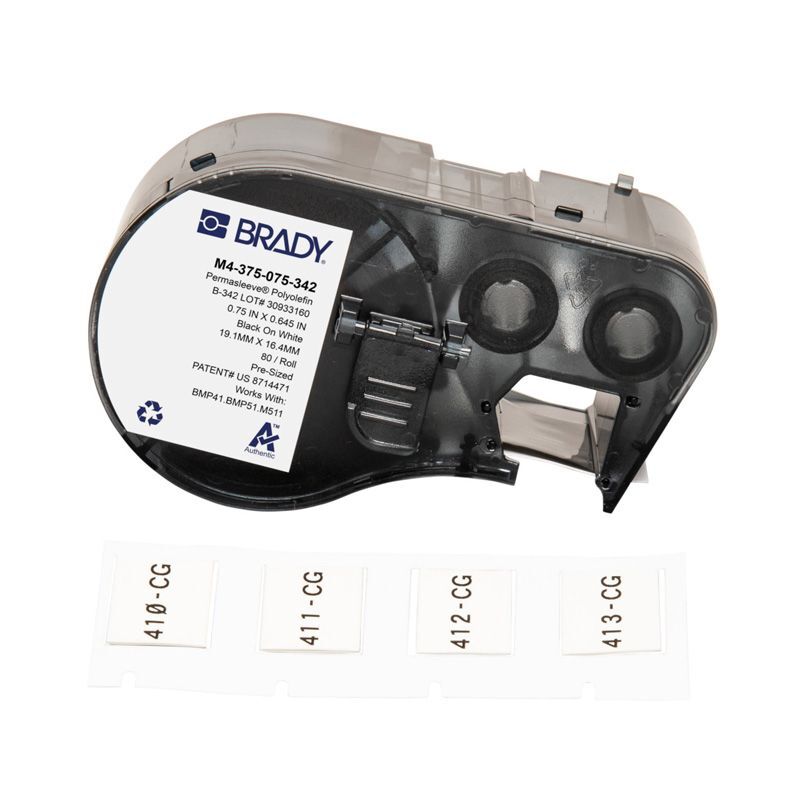

| 16.38 x 19.05mm / Black on White | M4-375-075-342 | A0204801 |

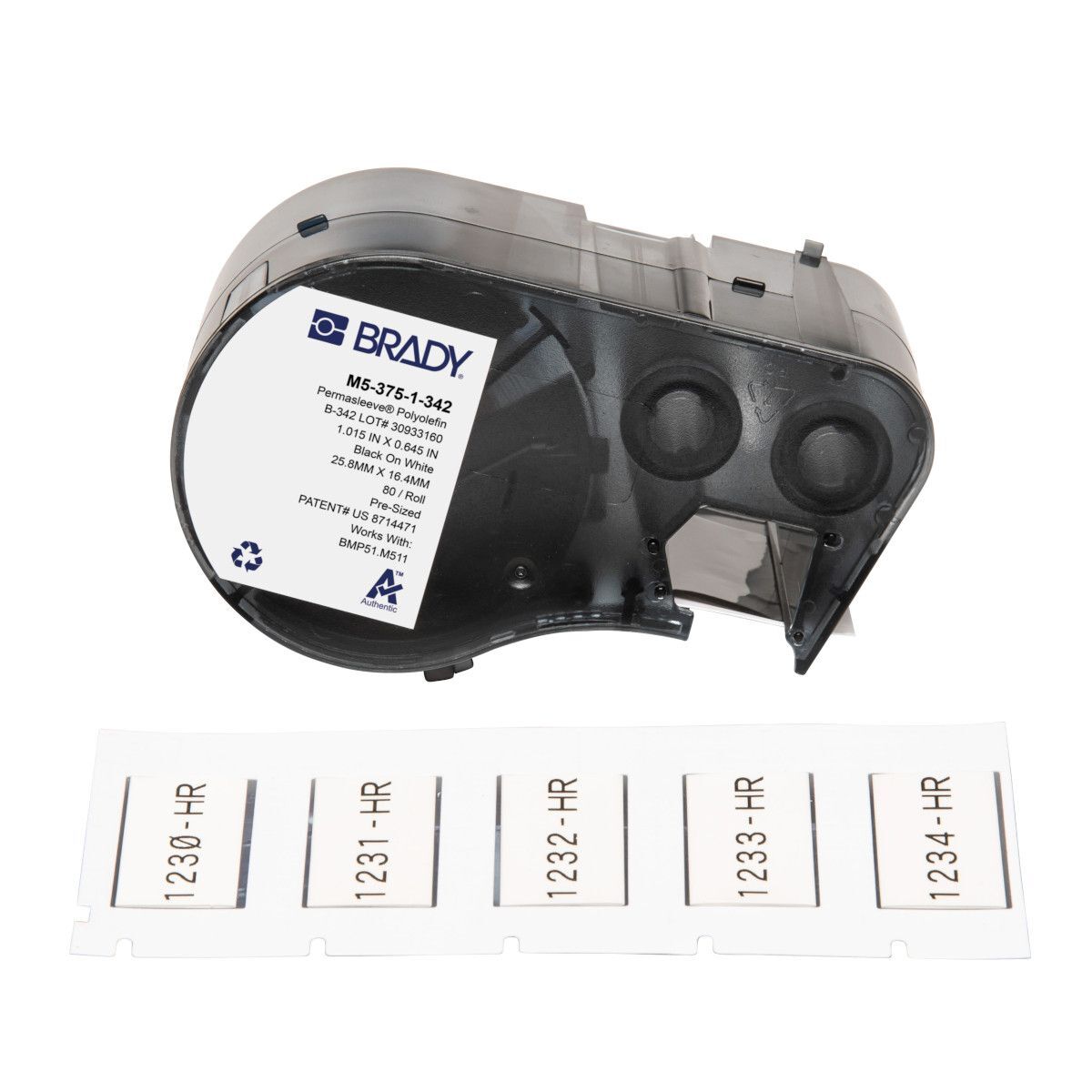

| 16.38 x 25.4mm / Black on White | M5-375-1-342 | A0204805 |

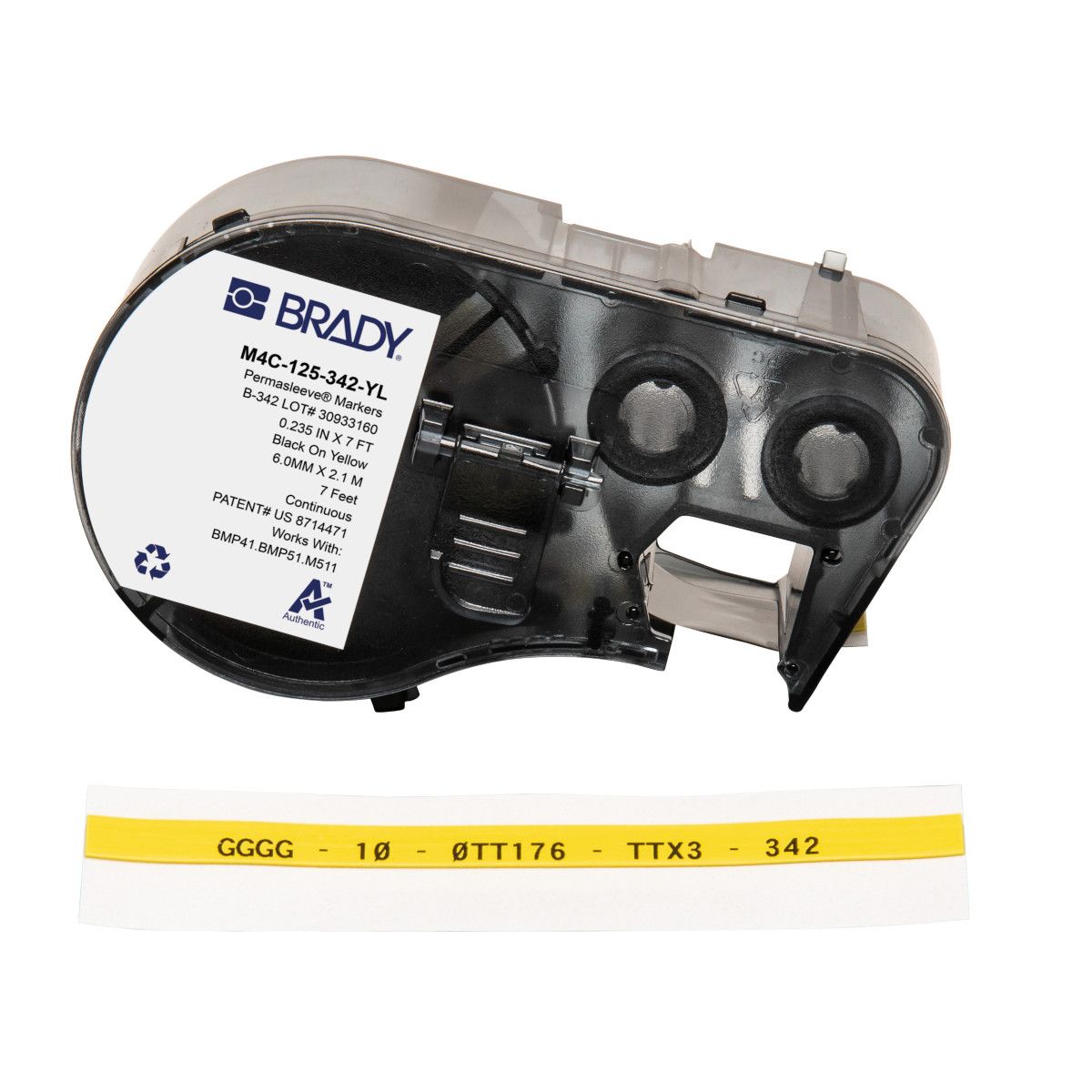

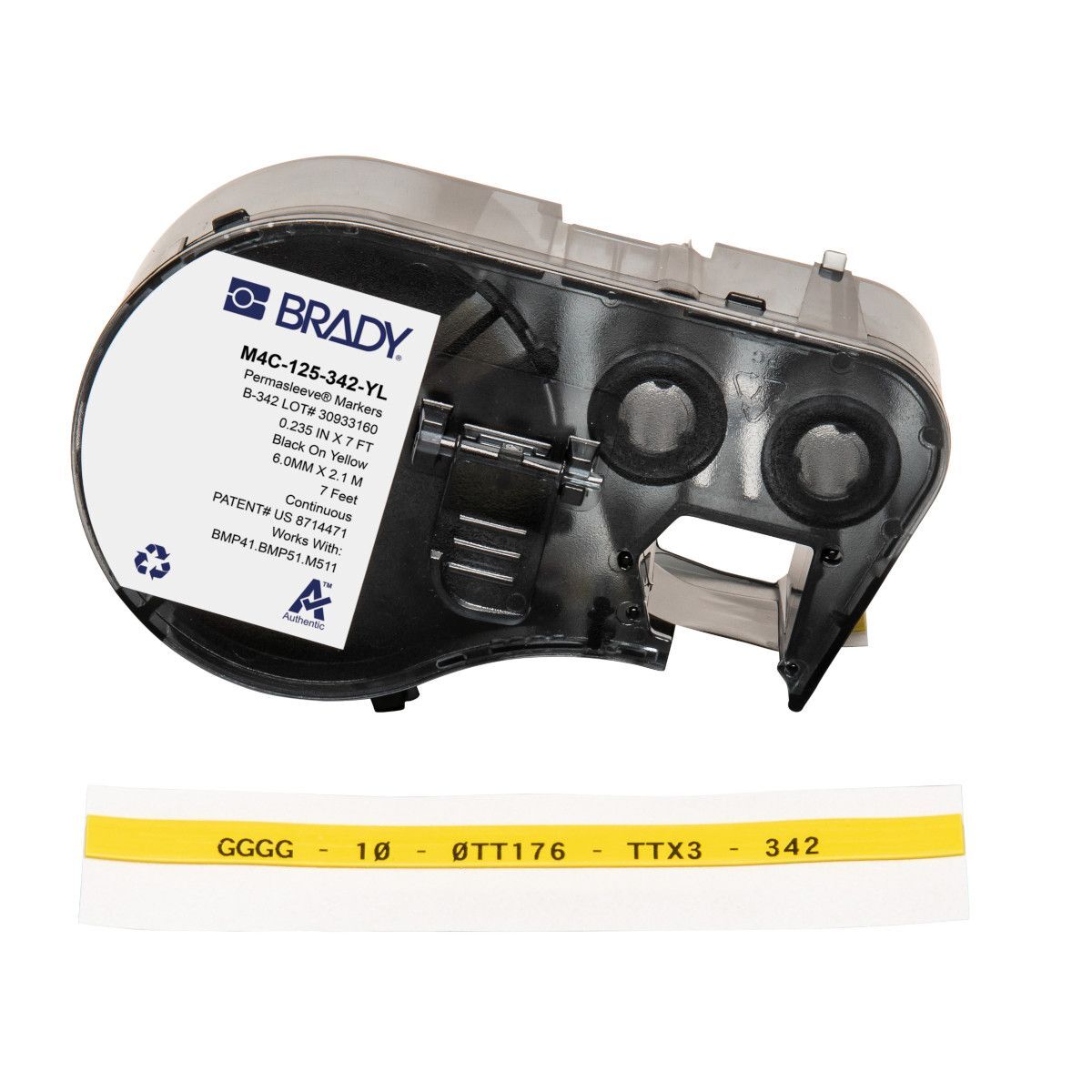

| 5.97mm x 2.13 m / Black on Yellow | M4C-125-342-YL | A0204807 |

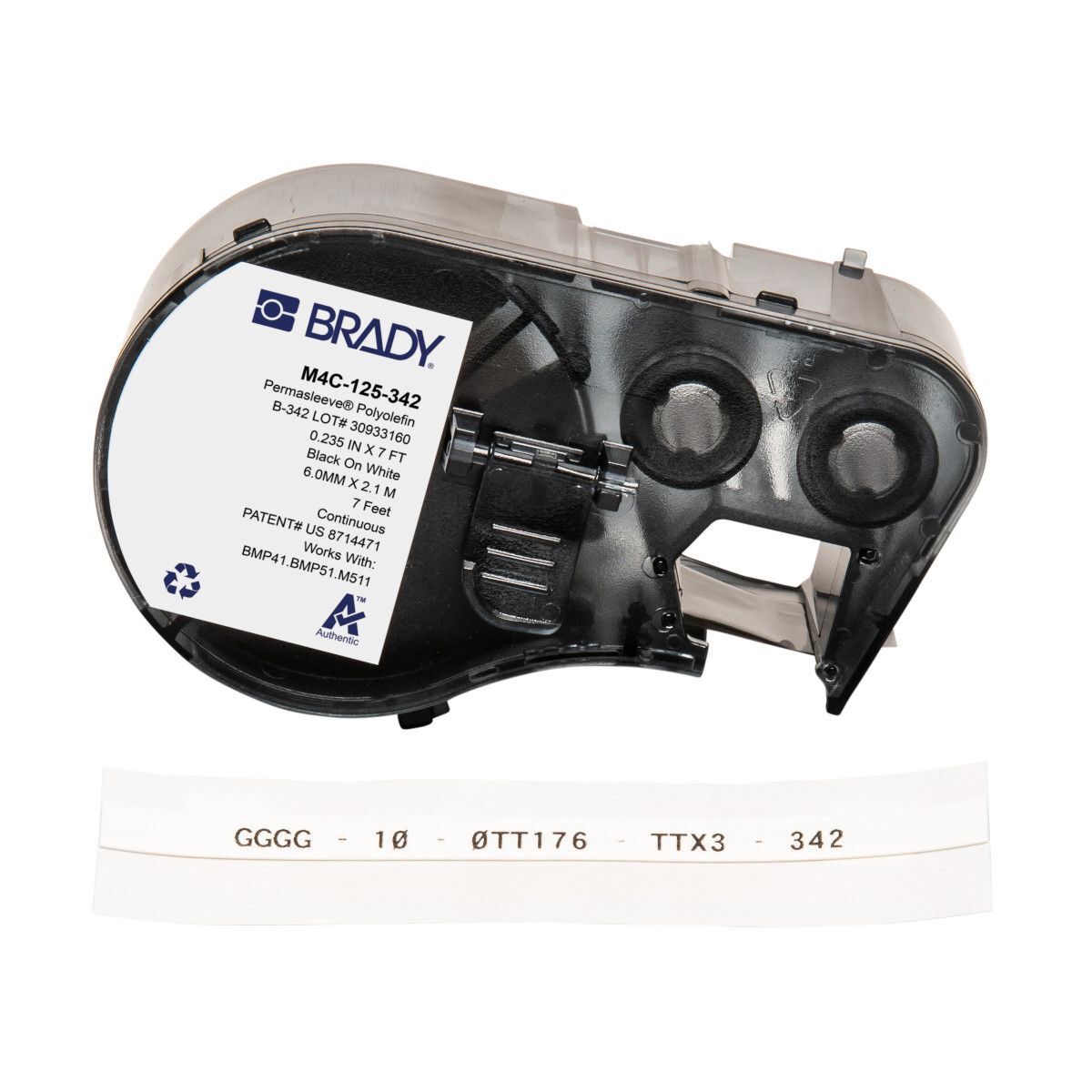

| 5.97mm x 2.13 m / Black on White | M4C-125-342 | A0204806 |

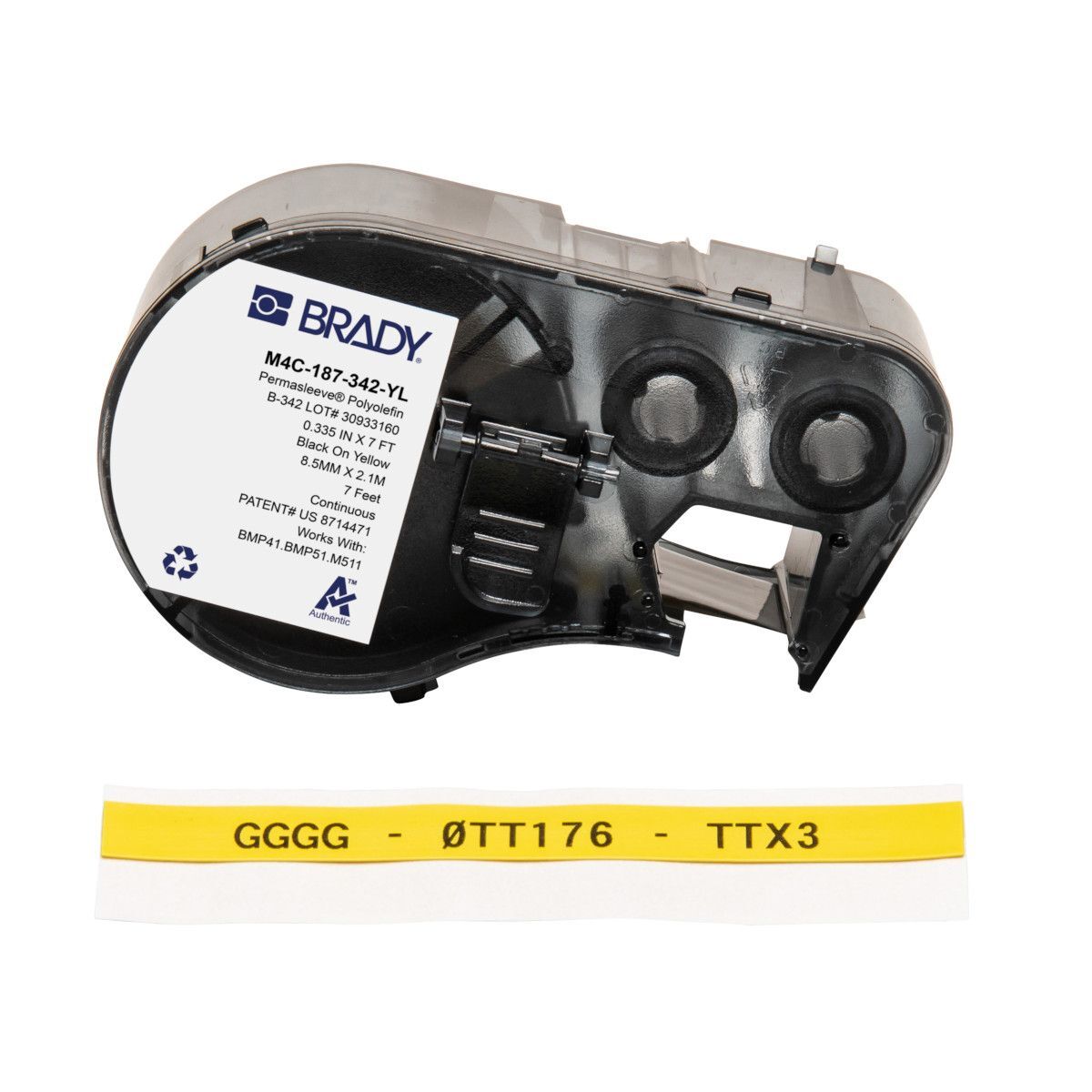

| 8.51mm x 2.13 m / Black on Yellow | M4C-187-342-YL | A0204809 |

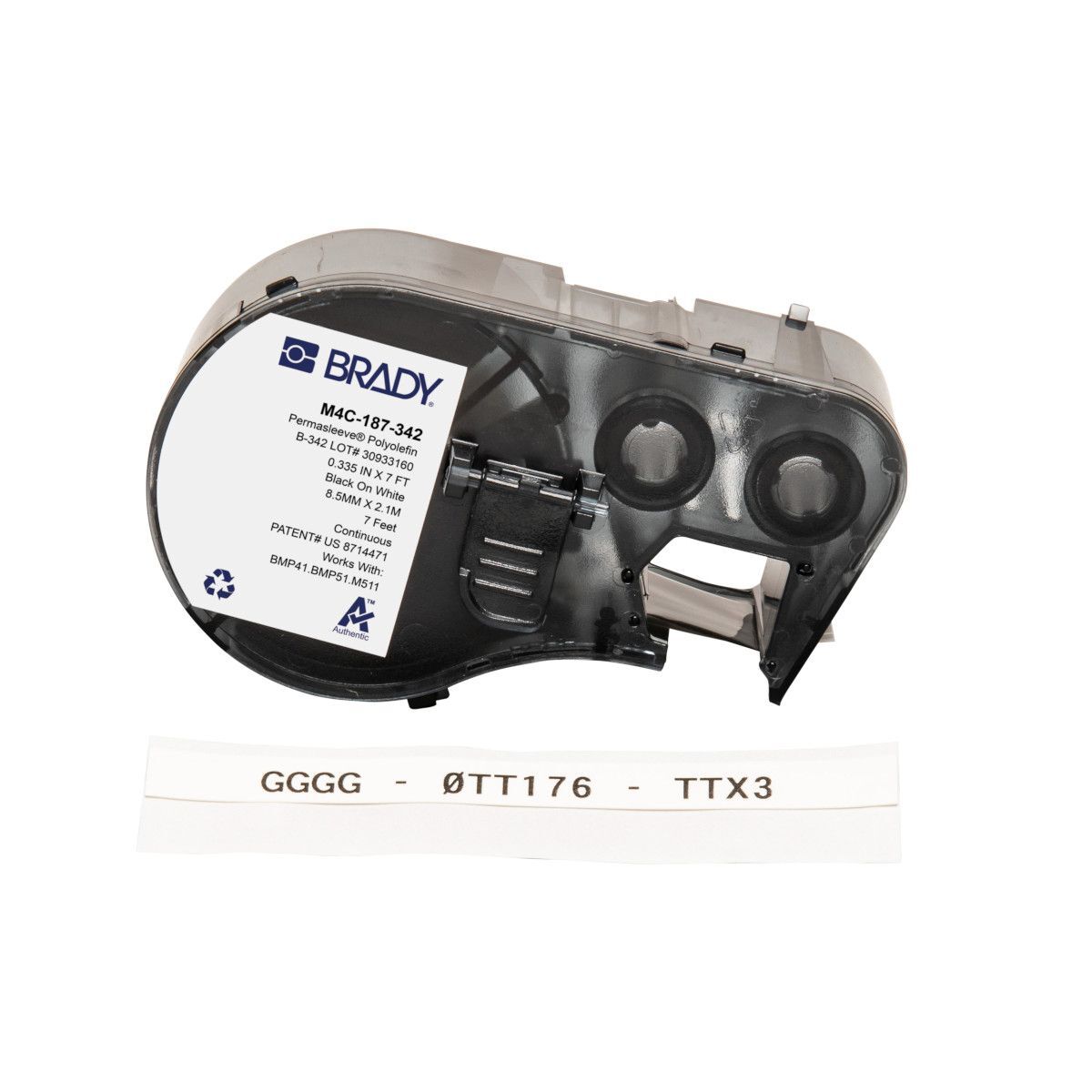

| 8.51mm x 2.13 m / Black on White | M4C-187-342 | A0204808 |

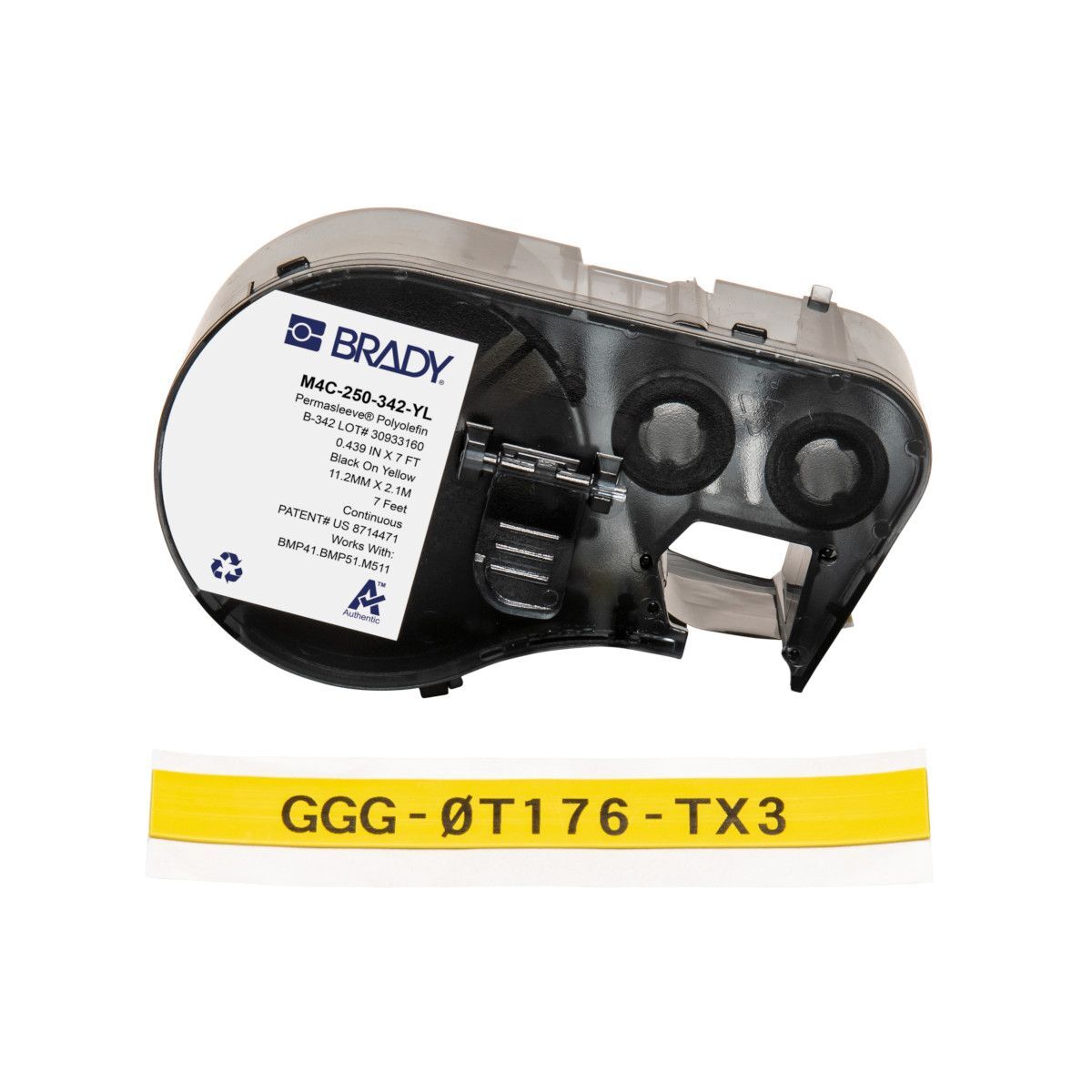

| 11.15mm x 2.13 m / Black on Yellow | M4C-250-342-YL | A0204811 |

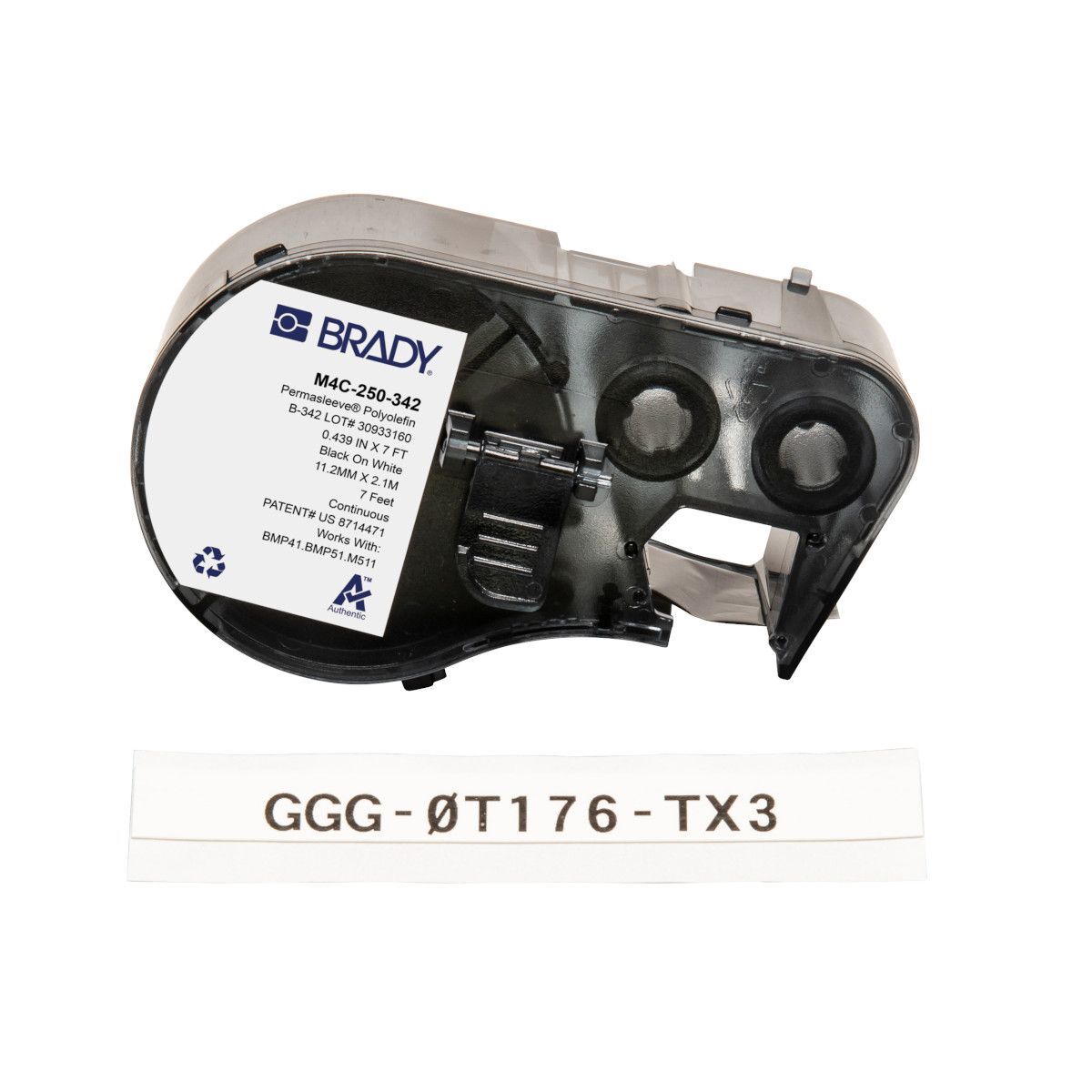

| 11.15mm x 2.13 m / Black on White | M4C-250-342 | A0204810 |

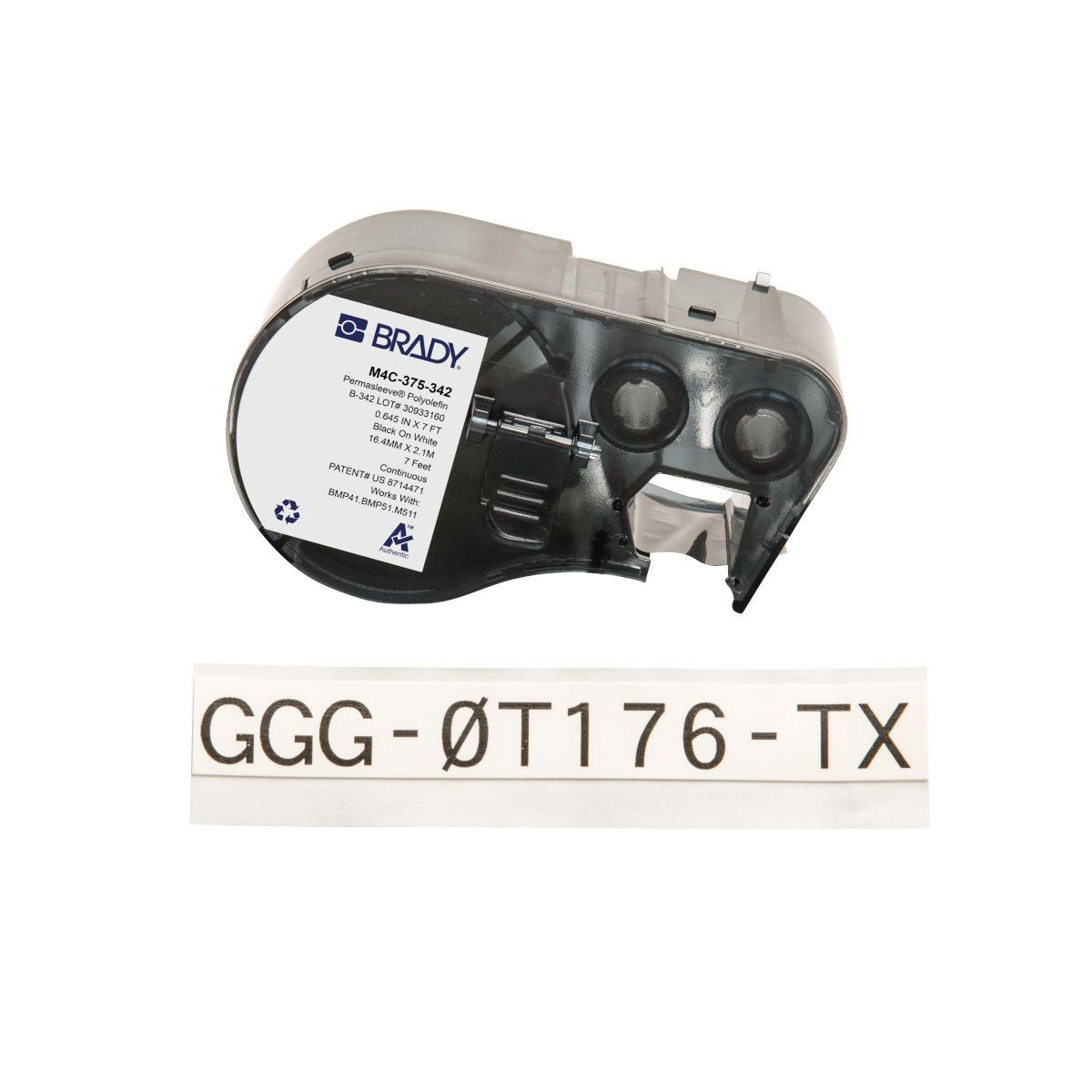

| 16.38mm x 2.13 m / Black on White | M4C-375-342 | A0204812 |
