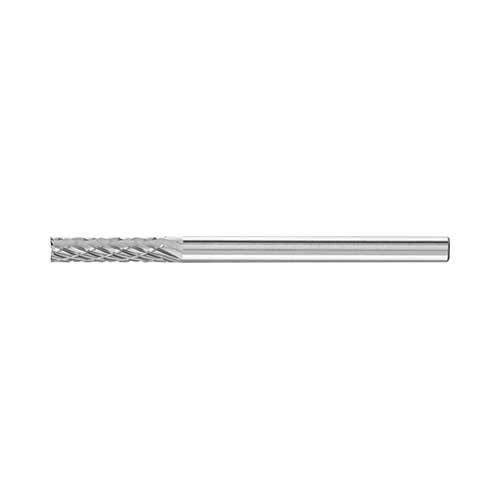

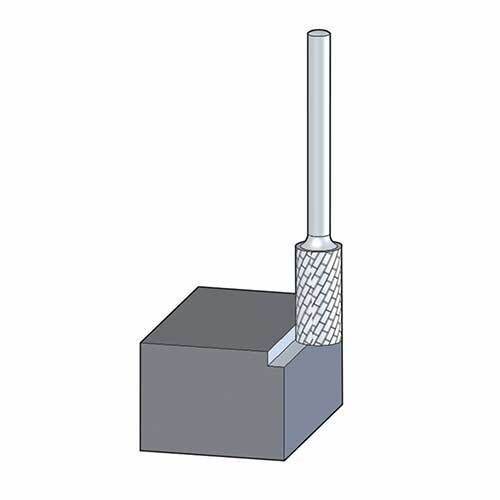

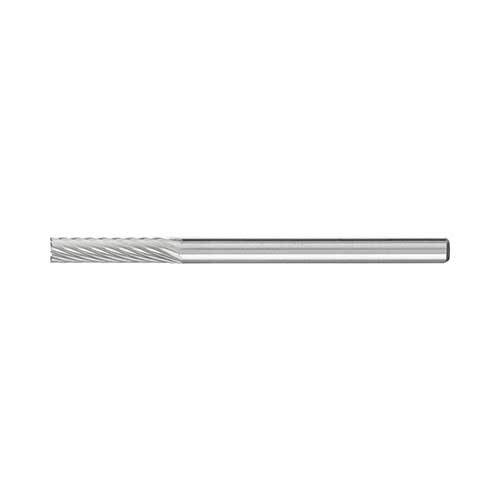

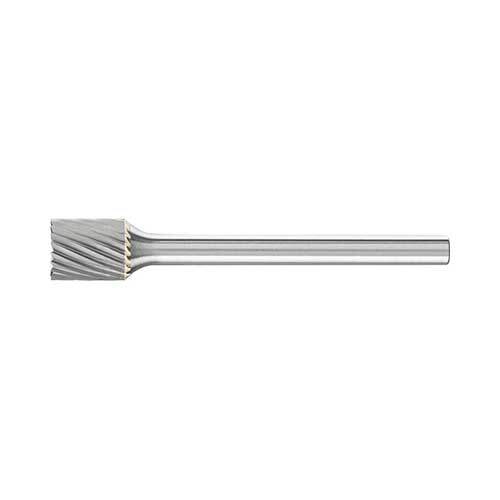

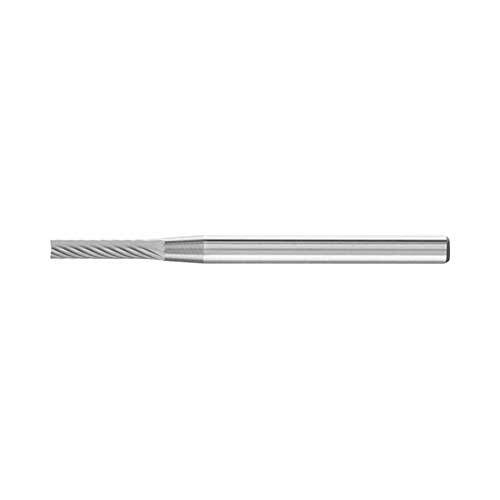

Pferd Burr Miniature Shank Cylindrical End Cut ZYAS C5

• Miniature Burr ZYAS Shank - Cylindrical End Cut ZYAS

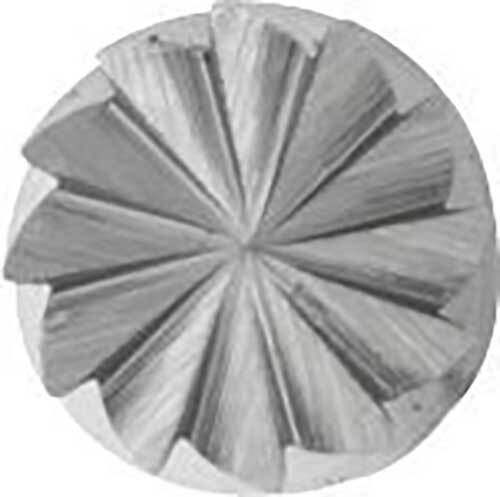

• Cylindrical burr according to DIN 8032 with circumferential and end cut according to DIN 8033.
• GL = total length (solid tungsten carbide)

Materials that can be worked:

• Hard aluminium alloys
• Hard non-ferrous metal
• Bronze
• Other non-ferrous metals
• Titanium
• Titanium alloys
• Stainless steel (INOX)
• Steel, cast steel
• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• Case-hardened steels
• Tool steels
• Steel
• Steels up to 1,200 N/mm≈í_ (< 38 HRC)
• Cast steel

Drive types:

• Flexible shaft drive
• Straight grinder
• Stationary machines
• Robot applications
• Machine tool

Classification

profi class 5.0
AAC147c013
eclass 8.1
21180609
eclass 7.0
21180609
eclass 4.1
21010504

Cut Applications

• Fine machining of cast iron, steel < 60 HRC, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys

Burr Applications

• Deburring
• Contouring
• Edge chamfering/rounding
• Milling out in preparation for build up welding
• Preparation of weld seams/weld dressing
• Cleaning cast material
• Modification of workpiece geometry

Applications:

• Milling out
• Leveling
• Deburring
• Cutting out holes
• Surface work
• Milling
• Weld dressing
