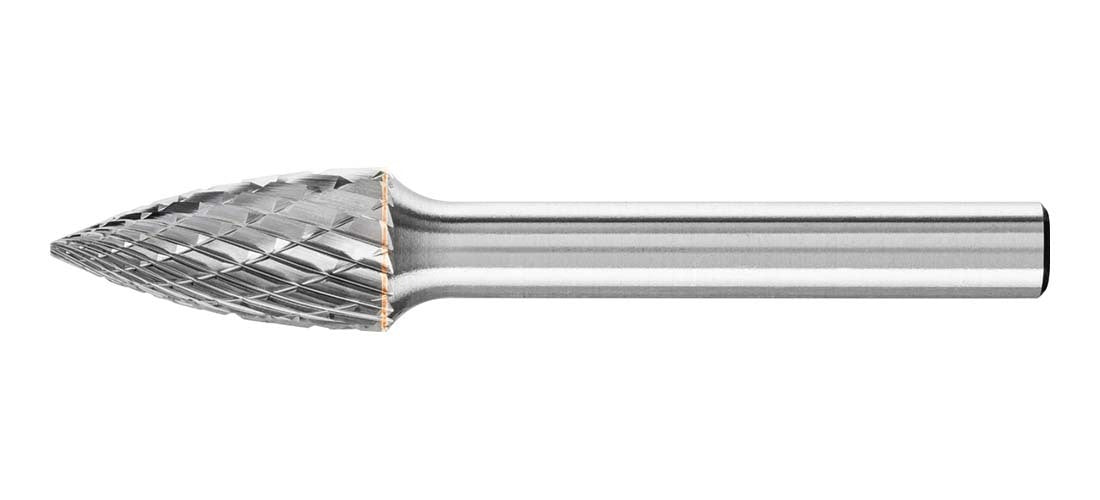

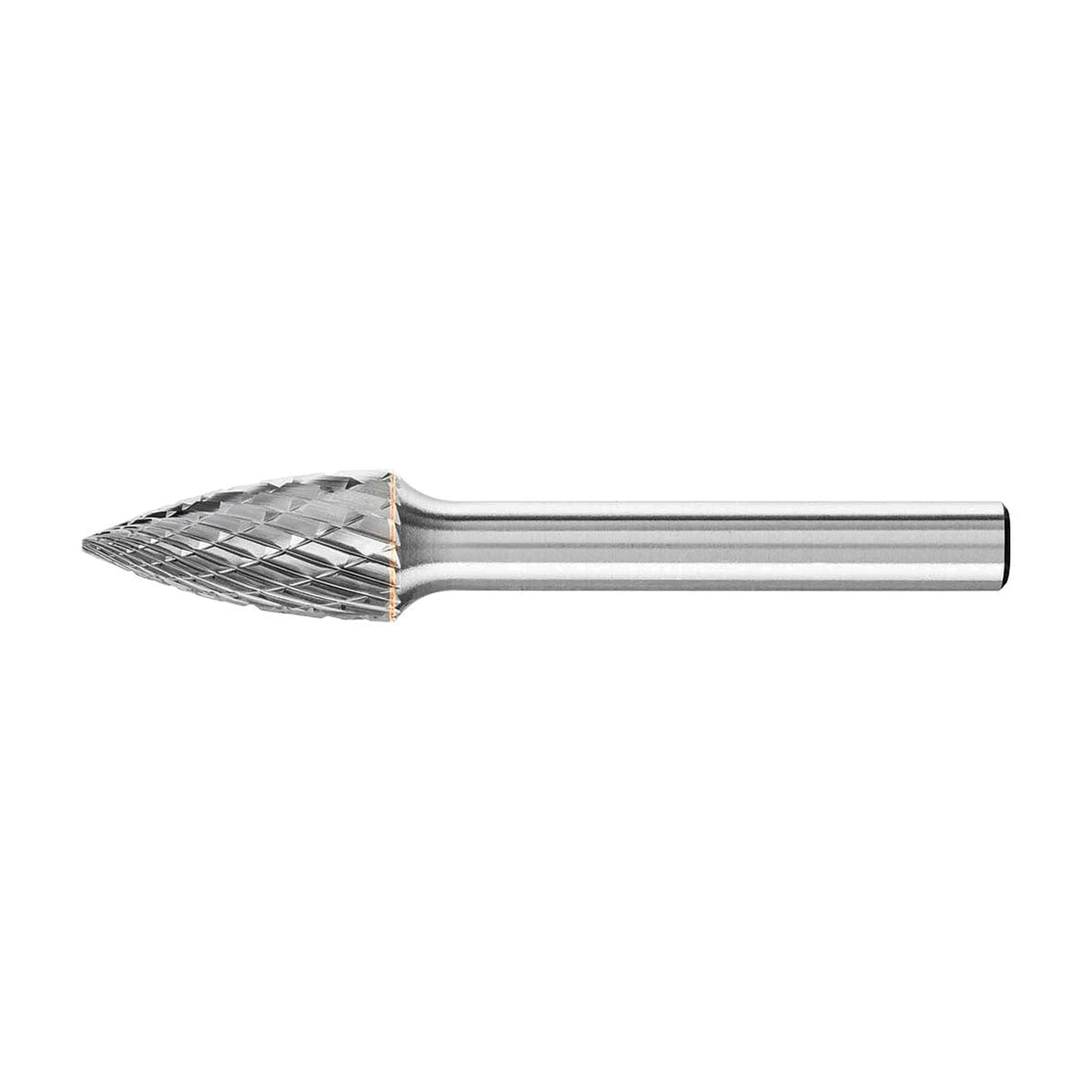

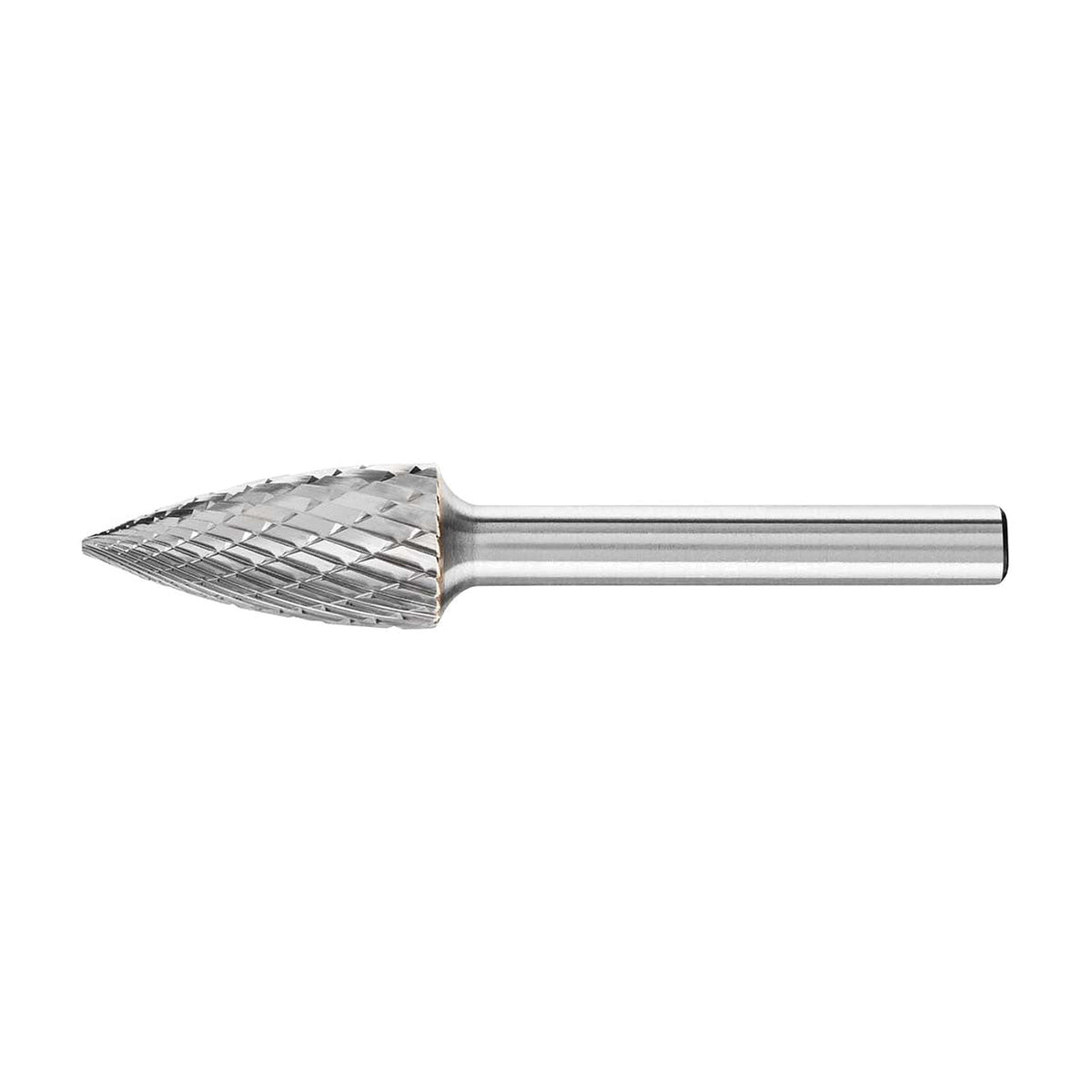

Pferd 21000095 Pointed Tree Burr SPG 1020/6 TOUGH, 10 x 20 mm, 6 mm Shank

This page lists 2 Pferd pointed tree burrs: shank-mounted tungsten carbide burrs with the TOUGH cut, all on a 6 mm shank. Head sizes (diameter x cut length) run from 10 x 20 to 12 x 25 mm.

The catalogue describes this SPG family as a pointed tree-shaped burr with a flattened tip for tough applications in dockyards, foundries and steel construction (manufacturer-stated).

The catalogue lists the TOUGH cut for cast iron and steel below 54 HRC; it is impact-resistant, minimizes tooth chipping and breakage, and can also be used at low rotational speeds and under impact loads (manufacturer-stated).

Where this product is used

• Tough applications in dockyards, foundries and steel construction (manufacturer-stated)
• Cast iron and steel below 54 HRC (manufacturer-stated)

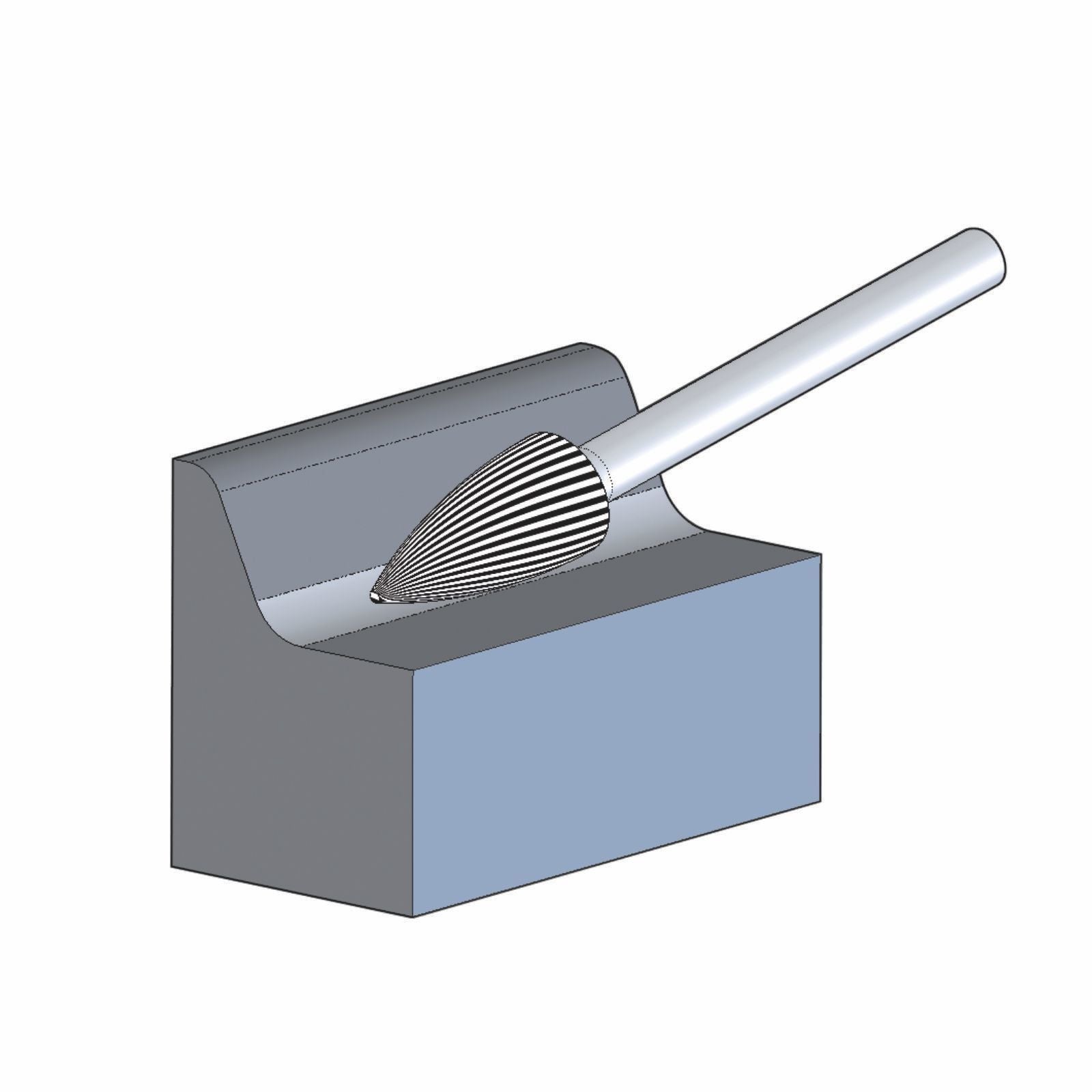

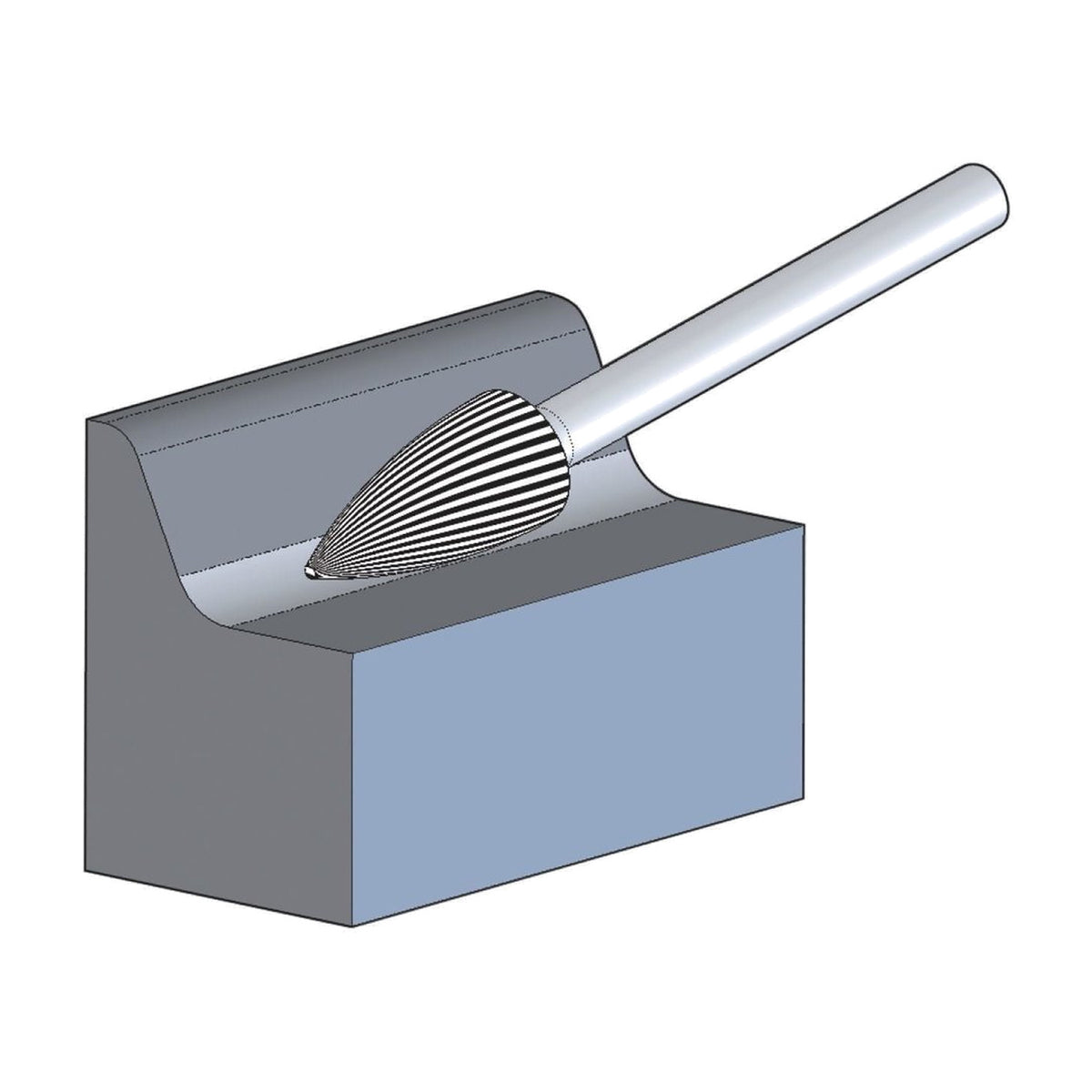

• Deburring, chamfering, milling out for build-up welding preparation, machining weld seams and machining contours, and cleaning cast material (manufacturer-stated)

Features

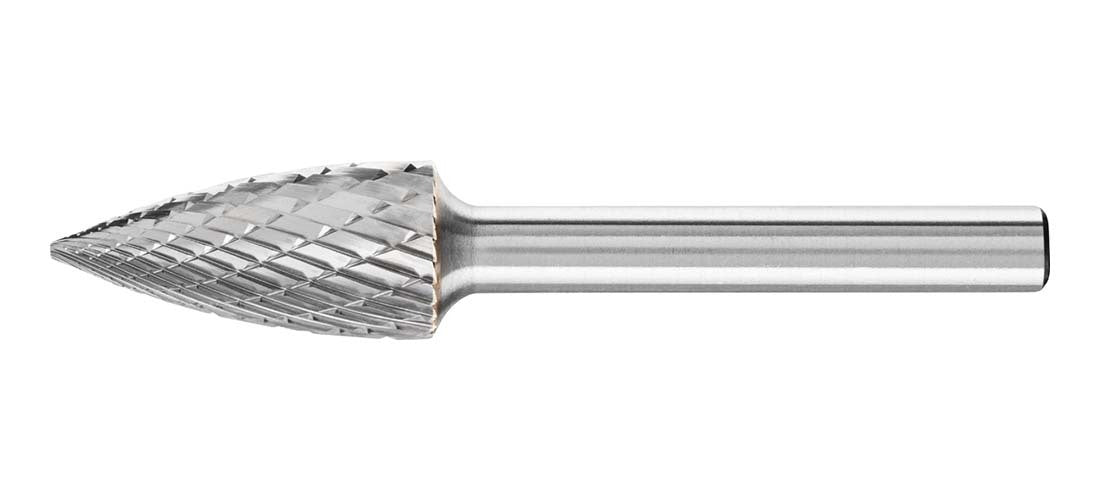

• Head sizes (diameter x cut length): 10 x 20 to 12 x 25 mm
• 6 mm shank (manufacturer-stated)
• Impact-resistant TOUGH cut (manufacturer-stated)
• Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity (manufacturer-stated)
• Can also be used at low rotational speeds (manufacturer-stated)

Common specifications

Key specifications

Each item number is one head size; the cut and shank are shown above and in the table.

Selecting the right option

Match the shank to your tool: this page lists a 6 mm shank. Choose the head size for the feature you are cutting; the table shows the cut length and overall length of each item. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks (manufacturer-stated).
