APPLIED BOLTING squirter DTI Washer, M20
The price shown is for the pack.
Available
There are 6 sizes of the Applied Bolting Squirter DTI (direct tension indicator) washer, Class 10.9, mechanical galvanised: M12 to M36.

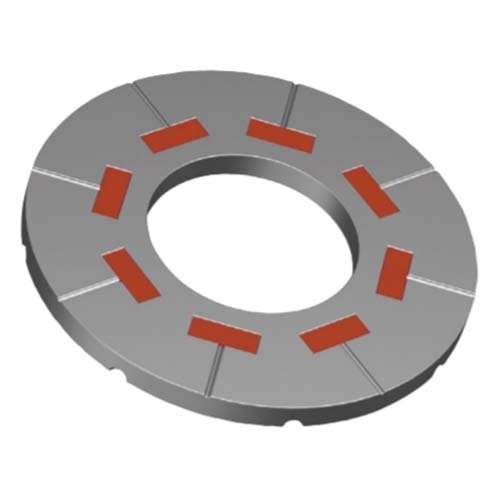

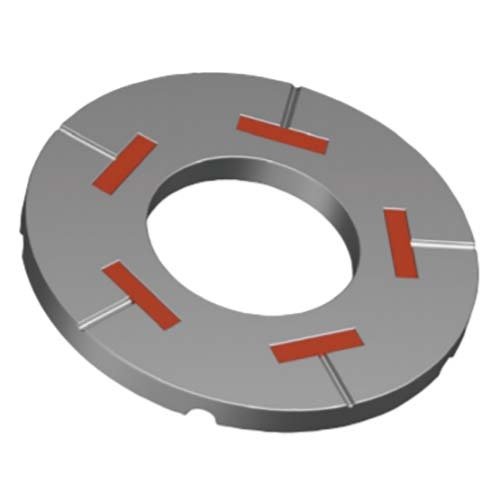

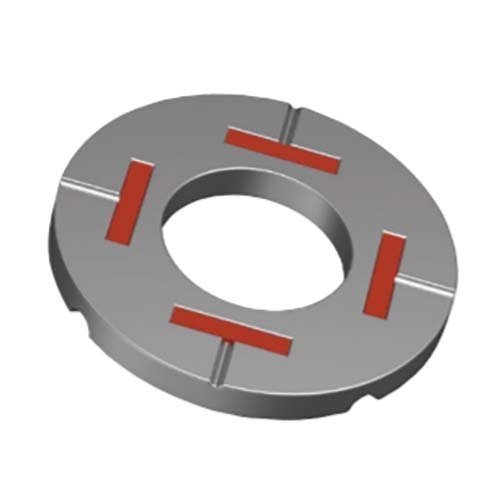

A Squirter DTI has a flexible silicone embedded in the depressions under its bumps, and the bolt is tightened until the calibrated amount of orange silicone appears from under the squirt locations. Squirter DTIs deliver visual verification of bolt tension. Pack quantity changes with size: pack of 100 for M12 to M24; pack of 50 for M30 and M36.
Where this product is used
- Tightening a structural bolt assembly until the calibrated amount of orange silicone appears
- Matching the washer size to the bolt size and class or grade of the assembly
Features
- Class 10.9
- Finish: Mechanical galvanised
- Direct tension indicator washer with orange silicone indication
- Pack quantity for each size
Key specifications
| Specification | Detail |
|---|---|
| Brand | APPLIED BOLTING |
| Sizes | M12 to M36 |
| Class | 10.9 |
| Finish | Mechanical galvanised |
| Size | M12, M16, M20, M24, M30, M36 |
| Size | M12 x 30.2 x 3mm, M16 x 36.8 x 3.6mm, M20 x 46 x 3.6mm, M24 x 55.2 x 4mm, M30 x 69 x 4.8mm, M36 x 82.8 x 4.8mm |
| Supplied as | Pack of 100, Pack of 50 |
Choosing the right option
Match the washer size to the bolt in your assembly, and the class with the assembly.
Related products: Applied Bolting Squirter DTI Washer, Class 10.9, Plain Black, M12 to M36, Applied Bolting Squirter DTI Washer, Class 8.8, Mechanical Galvanised, M16, M27 and M36, Applied Bolting Squirter DTI Washer, Grade 5, Mechanical Galvanised, 1/2" to 1".
| Option | Part number | SKU |
|---|---|---|
| M12 | A0141265 | |
| M16 | A0141266 | |
| M20 | A0141267 | |
| M24 | A0141268 | |
| M30 | A0141269 | |
| M36 | A0141270 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Applied Bolting Squirter DTI Washer, Class 10.9, Mechanical Galvanised, M12 to M36: M20
SKU: A0141267 | Model: WD10MM20
Applied Bolting WD10MM20: M20 Squirter DTI washer, Class 10.9, mechanical galvanised, pack of 100.
