Stahlwille SW4734 PH2 Stubby Phillips Screwdriver, 25 mm Blade
Available

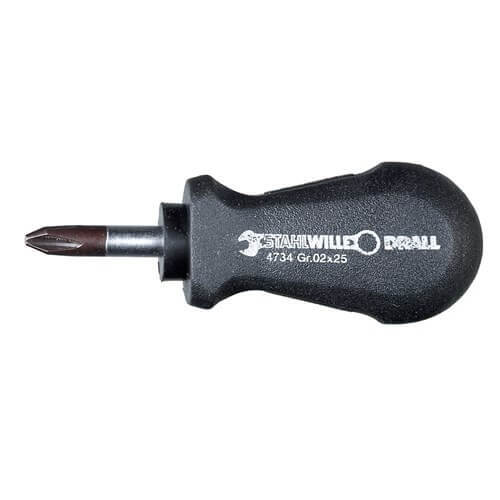

The Stahlwille 4734 is a Drall stubby Phillips screwdriver in 2 sizes, PH1 and PH2. Each has a 25 mm blade and is 80 mm overall, weighing 27 g and 31 g (manufacturer-stated).
The blade is Chrome Alloy Steel, matt chrome-plated, with a black tip, and Stahlwille lists the range to ISO 8764 (manufacturer-stated).
Where this product is used
- Phillips screws with little clearance above the head
- Maintenance work inside machines and enclosures
- A short screwdriver for a service kit
Features
- 2 Phillips sizes: PH1 and PH2 (manufacturer-stated)
- 25 mm blade, 80 mm overall (manufacturer-stated)
- Chrome Alloy Steel, matt chrome-plated, black tip (manufacturer-stated)
- Listed to ISO 8764 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Sizes in this range | 2 |
| Profile | Phillips (PH) |
| Blade length (L1) | 25 mm |
| Overall length | 80 mm |
| Weight | 27 g to 31 g |
| Standard | ISO 8764 (manufacturer-stated) |
| Material | Chrome Alloy Steel, matt chrome-plated, black tip |
Key specifications
| Size | Order no. | Blade length (L1) | Overall length (L2) | Weight |
|---|---|---|---|---|
| PH1 | 47341001 | 25 mm | 80 mm | 27 g |
| PH2 | 47341002 | 25 mm | 80 mm | 31 g |
Lengths and weights are manufacturer-stated. A dash means the figure is not published on this page.
Selecting the right option
Match the tip to the recess size. The slotted version is the Stahlwille 4724 Drall stubby slotted screwdrivers. For more reach see the Stahlwille 4630 Drall+ Phillips screwdrivers and the Stahlwille 4830 3K Drall Phillips screwdrivers.
Related products
Related Stahlwille products: Stahlwille 4724 Drall stubby slotted screwdrivers, Stahlwille 4630 Drall+ Phillips screwdrivers, Stahlwille 4830 3K Drall Phillips screwdrivers, Stahlwille 4632 Drall+ Phillips screwdrivers with hexagon and Stahlwille 4692/8 Drall+ screwdriver set.
