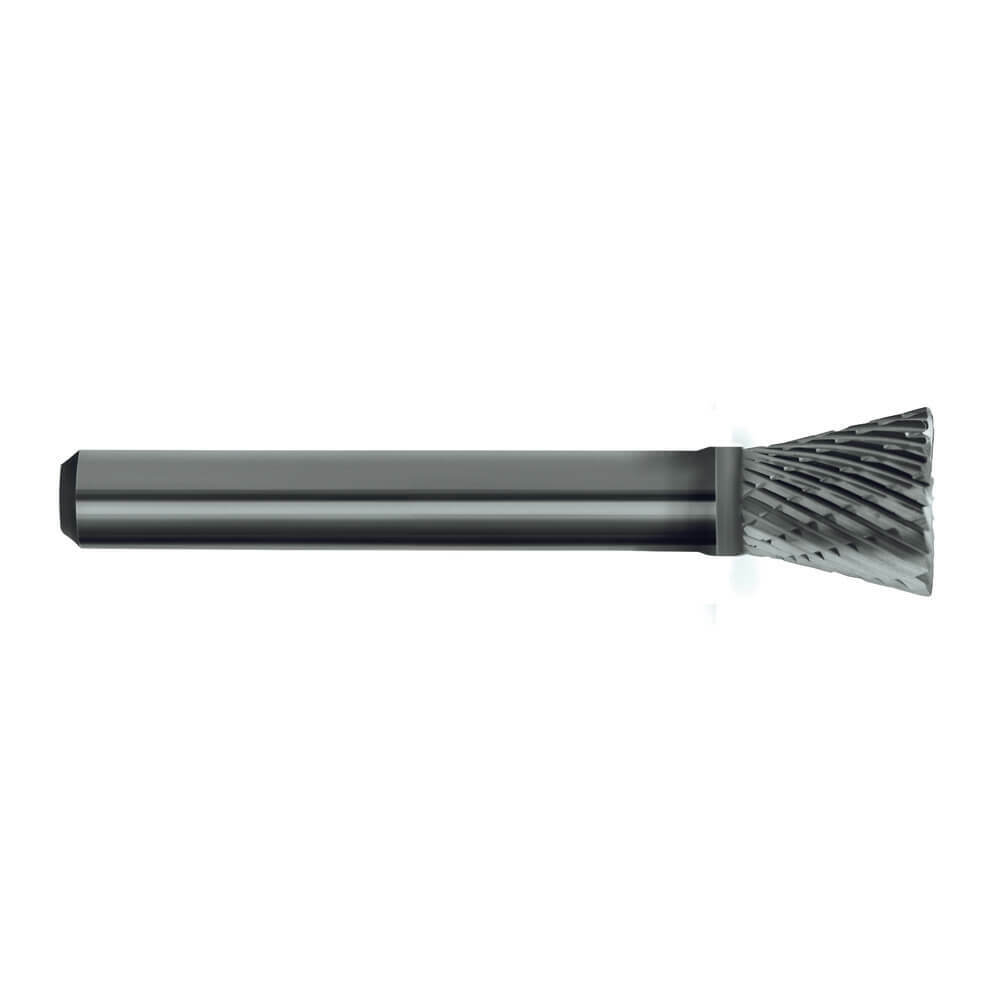

Sutton B209SN700 19 x 15.9 x 6.3mm Shank Carbide Burr Inverted Cone Shape
Sutton B209 Carbide Burr - Inverted Cone Shape - Double Cut1
Sutton B209 Carbide Burr - Inverted Cone Shape - Double Cut2
Sutton B209SN100 6.3 x 6.3 x 6.3mm Shank Carbide Burr Inverted Cone Shape
Sutton B209SN200 9.5 x 9.5 x 6.3mm Shank Carbide Burr Inverted Cone Shape
Sutton B209SN400 12.7 x 12.7 x 6.3mm Shank Carbide Burr Inverted Cone Shape
Sutton B209SN420 3.2 x 3.2 x 3.2 Shank Carbide Burr Inverted Cone Shape
Sutton B209SN510 6.3 x 6.3 x 3.2 Shank Carbide Burr Inverted Cone Shape
Sutton B209SN600 15.9 x 19 x 6.3mm Shank Carbide Burr Inverted Cone Shape
Sutton B209SN700 19 x 15.9 x 6.3mm Shank Carbide Burr Inverted Cone Shape

Sutton B209 Carbide Burr - Inverted Cone Shape - Double Cut

Sutton B209 Carbide Burr - Inverted Cone Shape - Double Cut

SKU: A0002519

Type: Burr

$23.78
$23.78
Inc. GST
Buy It Now

Available

The Sutton B209 Carbide Burr has an inverted cone shape for precise machining. Its chisel tooth pattern reduces tool chatter and granulates chips in many materials. It's adept at quickly removing soft materials like aluminium and plastics.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

Features

  • Inverted Cone Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminum, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Brt
  • Type: Inverted Cone
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) ‚Äì Ferritic
  • Cast Iron, Malleable ‚Äì Ferritic
  • Cast Iron, Malleable - Pearlitic

Specifications

  • Material: VHM
  • Finish: Brt
  • Type: Inverted Cone
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) ‚Äì Ferritic
  • Cast Iron, Malleable ‚Äì Ferritic
  • Cast Iron, Malleable - Pearlitic

Features

  • Inverted Cone Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminum, Brass, Copper, Plastics that would normally load other cuts
