Sutton B900SCB100 Carbide Burr Set, 5 Piece, 1/4" Heads, ABS Case
Available

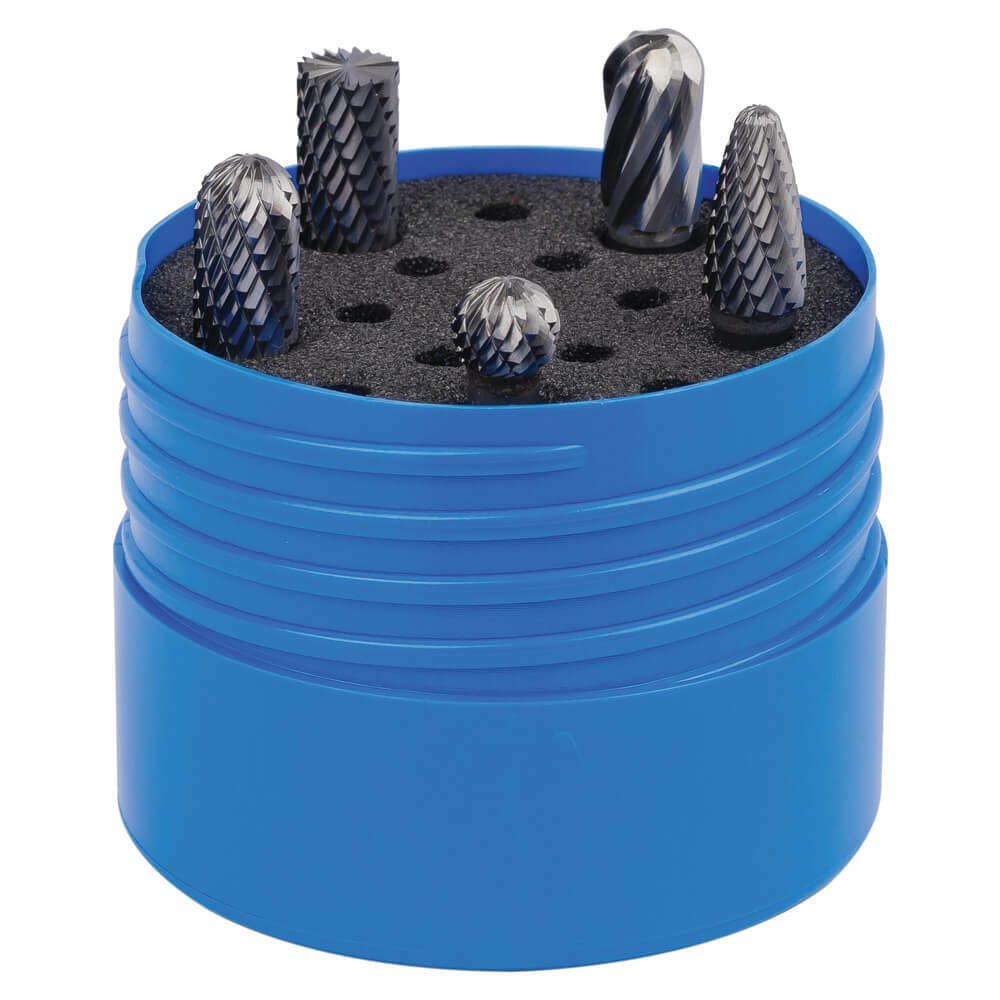

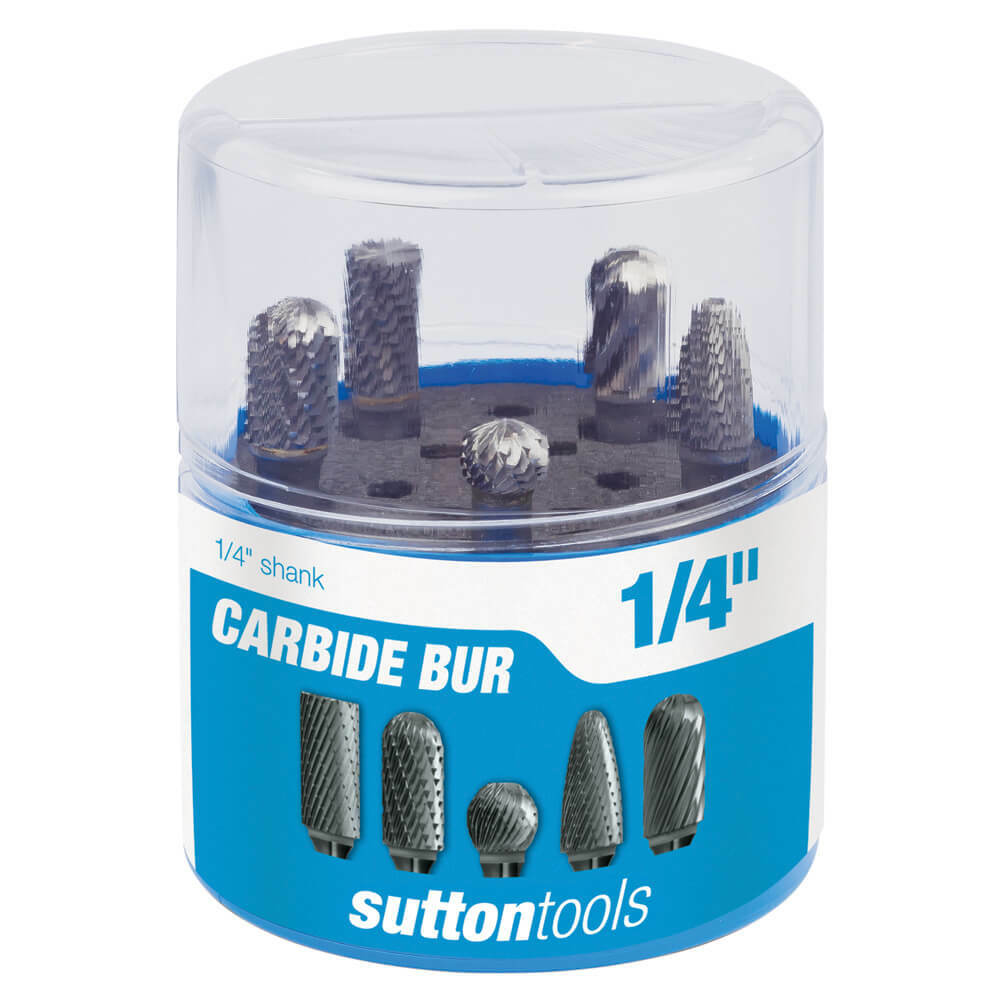

The Sutton B900SCB100 is a 5 piece carbide burr set in an ABS case, holding cylindrical square end, cylindrical radius end, ball shape and tree shape radius end double cut burrs, plus one aluminium cut burr (SC1AC). All five burrs have a solid carbide (VHM) head, bright finish and 1/4" (6.35 mm) shank, and are the same burrs as the individual items listed in the table below.
The double cut burrs are for rapid stock removal in the harder materials; the chisel tooth pattern is designed to minimise tool chatter and reduce the chip to a granular shape in most materials. The aluminium cut burr is for soft materials such as aluminium, brass, copper and plastics that would normally load other cuts.
Fit the burrs to a die grinder or other high-speed rotary tool with a 1/4" collet, and keep to the recommended speeds for each head diameter.
Where this set is used
- Grinding, shaping, deburring and weld cleanup on steel and stainless steel with the double cut burrs
- Working into corners, along edges and into pockets with the different head shapes in the set
- Cleaning up and shaping soft materials with the aluminium cut burr
- Workshop, fabrication, toolroom and maintenance (MRO) kits: one case holds five burrs
Design features
- 5 piece set in an ABS case (industrial grade plastic)
- Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
- Bright finish
- 1/4" (6.35 mm) shank on every burr
- 1/4" head diameter on every burr
What's in the set
Dimensions for the five burrs in the B900SCB100 set: d1 is the head diameter, l2 the cut length, l1 the overall length and d2 the shank diameter. The metric equivalent is in brackets.
| Item no. | Shape | Cut | Head diameter d1 | Cut length l2 | Overall length l1 | Shank d2 |
|---|---|---|---|---|---|---|
| B200SA100 | Cylindrical Square End | Double Cut | 1/4" (6.35 mm) | 5/8" (15.9 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B201SC100 | Cylindrical Radius End | Double Cut | 1/4" (6.35 mm) | 5/8" (15.9 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B202SD100 | Ball Shape | Double Cut | 1/4" (6.35 mm) | - | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B204SF100 | Tree Shape Radius End | Double Cut | 1/4" (6.35 mm) | 5/8" (15.9 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B216SC1AC | Cylindrical Radius End | Aluminium Cut | 1/4" (6.35 mm) | 5/8" (15.9 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
Recommended cutting speeds
Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs. Use the steels and alloys or stainless steel column for the double cut burrs and the aluminium column for the aluminium cut burr.
| Head diameter | Steels and alloys (RPM) | Stainless steel (RPM) | Aluminium cut (RPM) | Maximum (RPM) |
|---|---|---|---|---|
| 1/4" (6.35 mm) | 15,000 | 22,000 | 30,000 | 33,000 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Item number | B900SCB100 |
| Type | Carbide burr set |
| Pieces | 5 |
| Case | ABS case |
| Material | Solid carbide (VHM) |
| Finish | Bright |
| Shank | 1/4" (6.35 mm) |
| Head diameter | 1/4" |
| System of measurement | Imperial |
Related Sutton carbide burrs
Buy individual burrs or compare other sets: B200 cylindrical square end carbide burrs, B201 cylindrical radius end carbide burrs, B202 ball shape carbide burrs, B204 tree shape radius end carbide burrs, B216 cylindrical radius end carbide burrs, B900SCB300 carbide burr set (5 piece), B900SCB500 carbide burr set (5 piece), B900SCB5 carbide burr set (5 piece).
