Sutton B201 Cylindrical Radius End Carbide Burr, 1/8" x 1/2", 1/8" Shank, Double Cut
Available

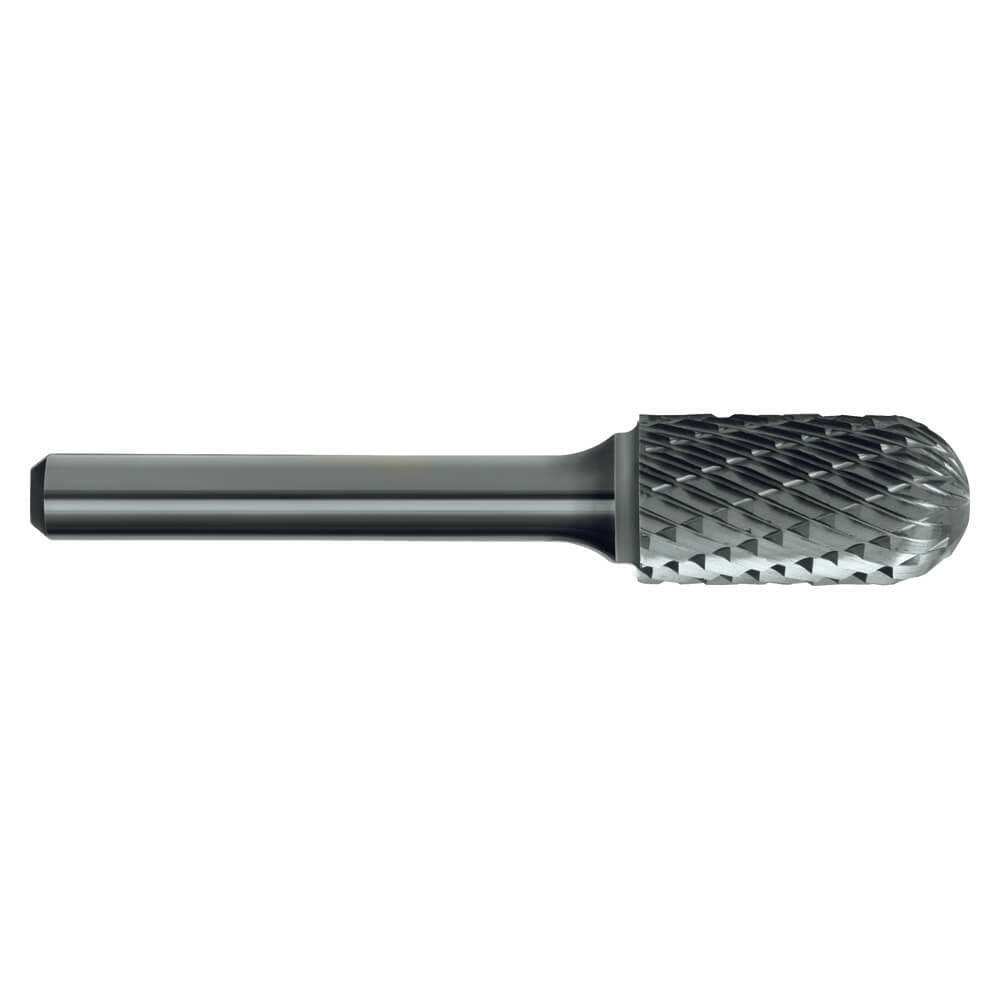

The Sutton B201 is a double cut, cylindrical radius end carbide burr with a solid carbide (VHM) head and bright finish, supplied with 1/4" (6.35 mm) shanks on 9 sizes and 1/8" (3.2 mm) shanks on the 3 smallest.
The double cut (chisel tooth) pattern is for rapid stock removal in the harder materials. The chisel tooth pattern is designed to minimise tool chatter and reduce the chip to a granular shape in most materials.
This listing covers 12 sizes, with head diameters from 3/32" (2.4 mm) to 3/4" (19.1 mm) and overall lengths of 1-1/2" (38.1 mm) to 2-3/4" (69.9 mm). Dimensions are as published in Sutton's catalogue.
Fit it to a die grinder or other high-speed rotary tool with a collet that matches the shank, and keep to the recommended speeds for the head diameter shown below.
Where this burr is used
- Side grinding and shaping, where the radiused end helps the burr avoid digging into the workpiece
- Contouring and blending flat and curved surfaces
- Deburring machined edges and removing weld spatter and flash
- Steel and stainless steel: recommended speeds are given below for steels and alloys and for stainless steel
- Weld cleanup, deburring and shaping in fabrication, toolroom, foundry, engineering workshop and maintenance (MRO) work
Design features
- Double cut (chisel tooth) pattern: for rapid stock removal in the harder materials, with minimal tool chatter and a granular chip in most materials
- Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
- Bright finish
- Head profile: cylinder with a radiused end
- Shank sizes: 1/4" (6.35 mm) on 9 sizes, 1/8" (3.2 mm) on the 3 smaller sizes
Sizes

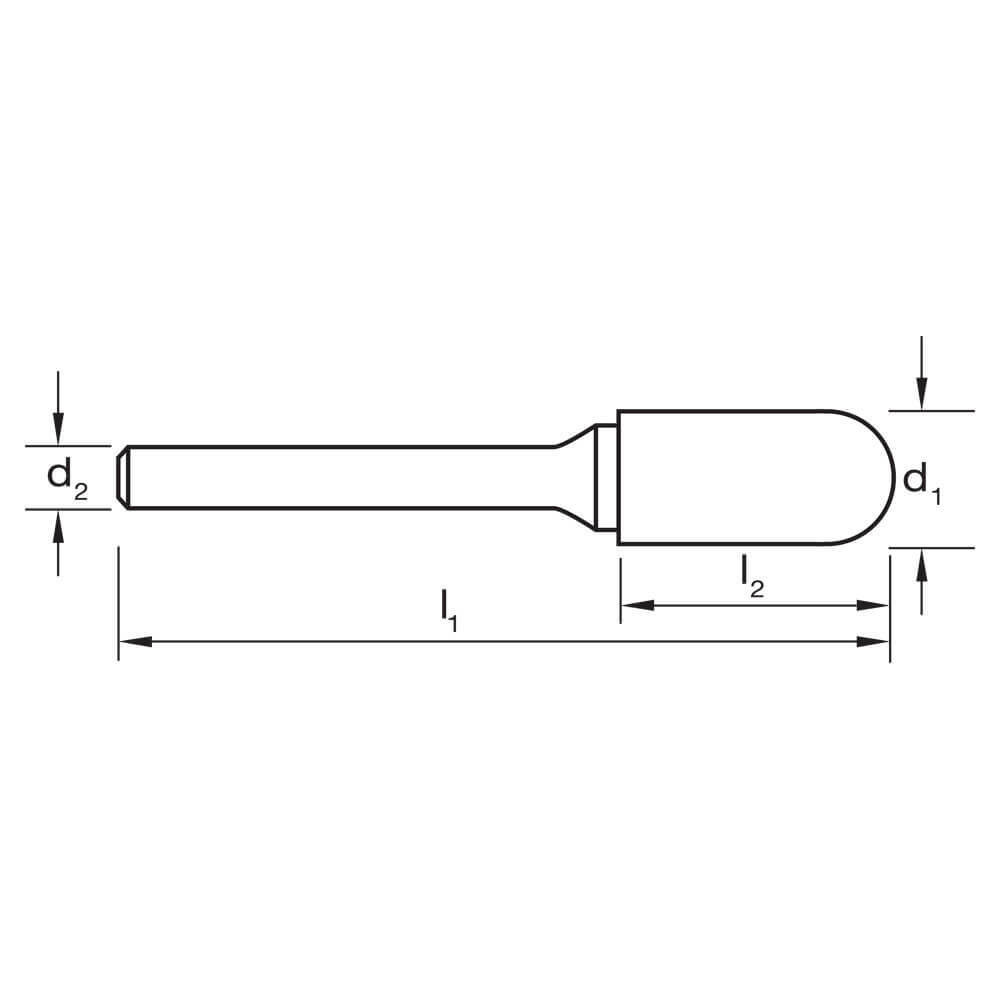

Dimensions: d1 is the head diameter, l2 the cut length, l1 the overall length and d2 the shank diameter. Imperial sizes are shown with the metric equivalent in brackets.
| Item no. | Head diameter d1 | Cut length l2 | Overall length l1 | Shank d2 |
|---|---|---|---|---|
| B201SC410 | 3/32" (2.4 mm) | 1/2" (12.7 mm) | 1-1/2" (38.1 mm) | 1/8" (3.2 mm) |
| B201SC420 | 1/8" (3.2 mm) | 1/2" (12.7 mm) | 1-1/2" (38.1 mm) | 1/8" (3.2 mm) |
| B201SC120 | 1/8" (3.2 mm) | 1/2" (12.7 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B201SC140 | 3/16" (4.8 mm) | 5/8" (15.9 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B201SC510 | 1/4" (6.35 mm) | 1/2" (12.7 mm) | 2" (50.8 mm) | 1/8" (3.2 mm) |
| B201SC100 | 1/4" (6.35 mm) | 5/8" (15.9 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B201SC200 | 5/16" (7.9 mm) | 3/4" (19.1 mm) | 2-1/2" (63.5 mm) | 1/4" (6.35 mm) |
| B201SC300 | 3/8" (9.5 mm) | 3/4" (19.1 mm) | 2-1/2" (63.5 mm) | 1/4" (6.35 mm) |
| B201SC400 | 7/16" (11.1 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
| B201SC500 | 1/2" (12.7 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
| B201SC600 | 5/8" (15.9 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
| B201SC700 | 3/4" (19.1 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
Recommended cutting speeds
Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs.
| Head diameter | Steels and alloys (RPM) | Stainless steel (RPM) | Maximum (RPM) |
|---|---|---|---|
| 3/32" (2.4 mm) | 26,000 | 40,000 | 60,000 |
| 1/8" (3.2 mm) | 23,000 | 35,000 | 53,000 |
| 3/16" (4.8 mm) | 17,000 | 25,000 | 38,000 |
| 1/4" (6.35 mm) | 15,000 | 22,000 | 33,000 |
| 5/16" (7.9 mm) | 13,000 | 20,000 | 30,000 |
| 3/8" (9.5 mm) | 12,000 | 18,000 | 27,000 |
| 7/16" (11.1 mm) | 11,500 | 17,000 | 26,000 |
| 1/2" (12.7 mm) | 11,000 | 16,000 | 24,000 |
| 5/8" (15.9 mm) | 10,000 | 15,000 | 23,000 |
| 3/4" (19.1 mm) | 9,000 | 14,000 | 21,000 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Catalogue code | B201 |
| Head shape | Cylindrical Radius End |
| Cut | Double Cut |
| Material | Solid carbide (VHM) |
| Finish | Bright |
| Shank | 1/4" (6.35 mm) on 9 sizes, 1/8" (3.2 mm) on 3 sizes |
| Head diameter | 3/32" to 3/4" |
| Overall length | 1-1/2" to 2-3/4" |
| System of measurement | Imperial |
| Sizes in this listing | 12 |
Related Sutton carbide burrs
Compare other shapes and lengths in this range: B211 cylindrical radius end carbide burrs (double cut, long reach), B216 cylindrical radius end carbide burrs (aluminium cut), B301 cylindrical radius end carbide burrs (metric, 6 mm shank, double cut), B316 cylindrical radius end carbide burrs (metric, 6 mm shank, aluminium cut), B900SCB100 carbide burr set (5 piece), B900SCB300 carbide burr set (5 piece).
