Sutton B316 Carbide Burr - Cylindrical Radius End - Aluminium Cut

Sutton B316 Carbide Burr - Cylindrical Radius End - Aluminium Cut

SKU: A0002599

Type: Burr

$81.76
$81.76
Inc. GST
Buy It Now

Available

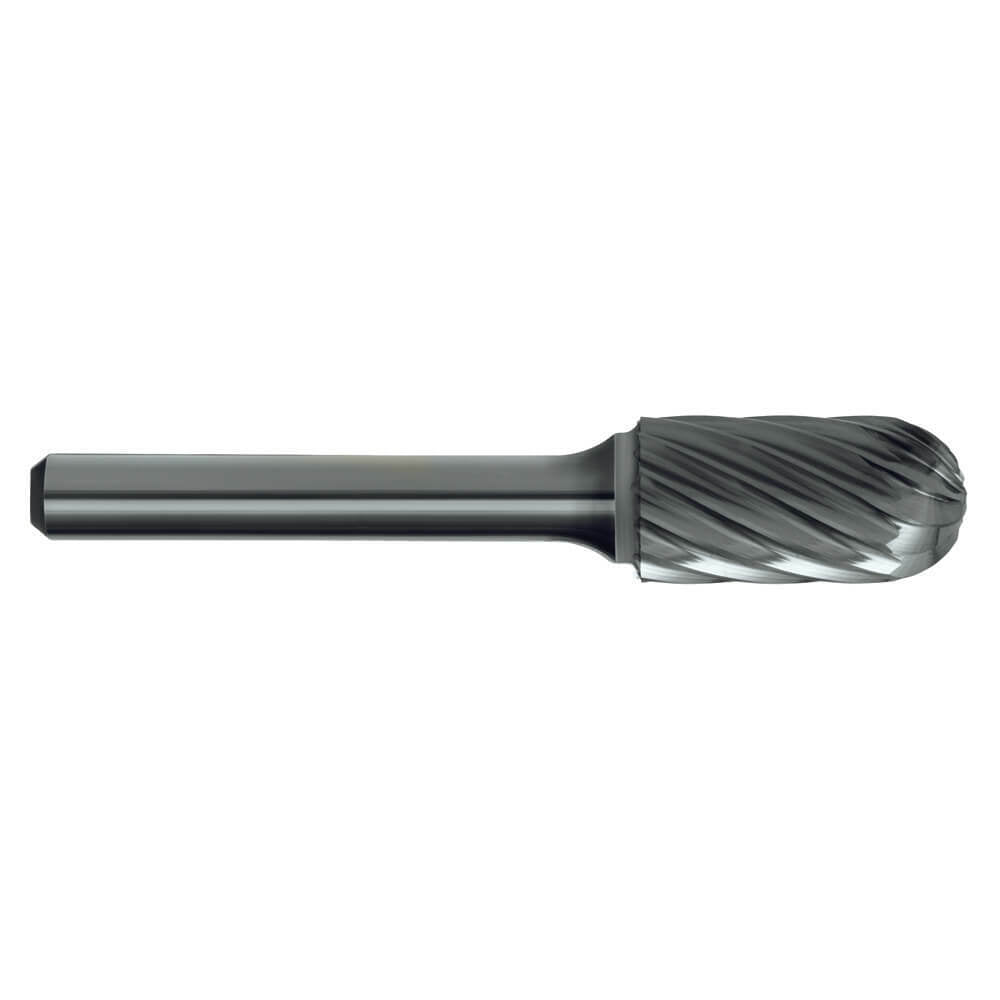

The Sutton B316 Carbide Burr - Cylindrical Radius End - Aluminium Cut by Sutton Tools features a bright finish and is made from VHM material. It has a shank diameter of 6 mm and is designed for rapid material removal in soft materials such as aluminium and brass.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

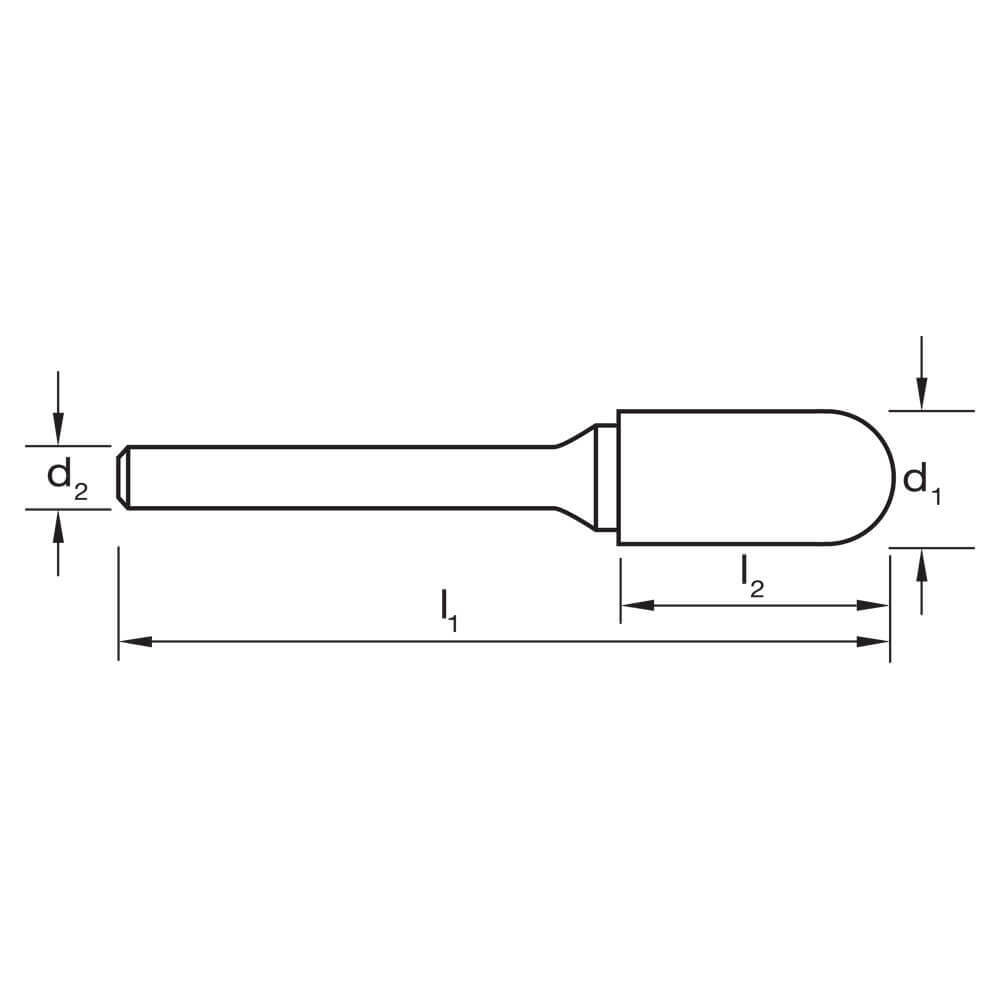

Dimensions

  • d1 (mm): 9.6
  • d2 (mm): 6
  • l1 (mm): 63.5
  • l2 (mm): 19
  • Shank (mm): 6

Features

  • Cylindrical Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Cylindrical Radius End
  • Application: Aluminium

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Dimensions

  • d1 (mm): 9.6
  • d2 (mm): 6
  • l1 (mm): 63.5
  • l2 (mm): 19
  • Shank (mm): 6

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Cylindrical Radius End
  • Application: Aluminium

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features

  • Cylindrical Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
