Sutton B214SL3L6 Taper Radius End Carbide Burr, 3/8" x 1-1/16", Double Cut, Long Reach

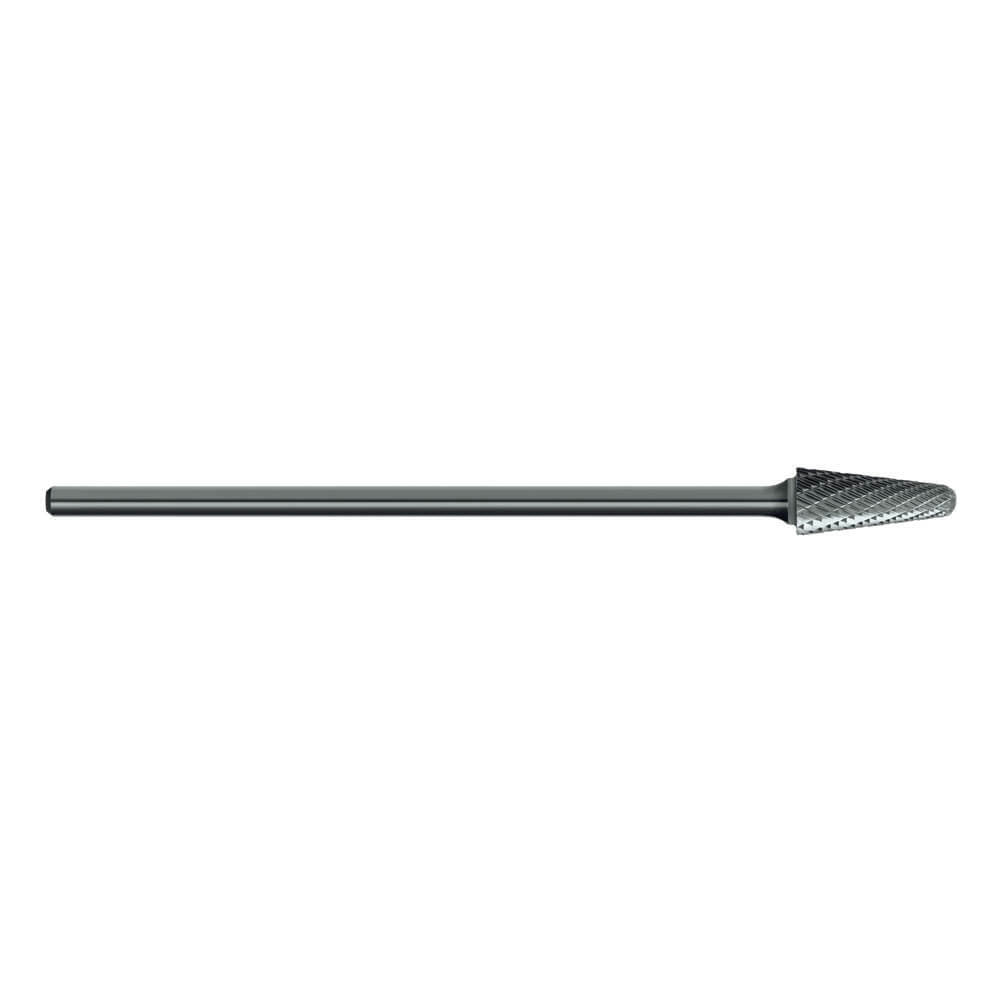

The Sutton B214SL3L6 is a long reach, double cut, taper shape radius end carbide burr with a solid carbide (VHM) head and bright finish, supplied with a 1/4" (6.35 mm) shank. Head diameter is 3/8" (9.5 mm), cut length is 1-1/16" (27 mm), overall length is 7-1/16" (179.4 mm) and the shank diameter is 1/4" (6.35 mm).

The double cut (chisel tooth) pattern is for rapid stock removal in the harder materials. The chisel tooth pattern is designed to minimise tool chatter and reduce the chip to a granular shape in most materials.

Fit it to a die grinder or other high-speed rotary tool with a collet that matches the shank, and cut at a reduced speed, with cutting speeds reduced by 50% for long shank carbide burrs.

Where this burr is used

• Deburring, blending and finishing in tapered, angled and tight areas
• Cleaning up weld in Vee joints and corners
• Finishing recesses, where the radiused tip avoids leaving a sharp corner
• Steel and stainless steel: recommended speeds are given below for steels and alloys and for stainless steel
• Weld cleanup, deburring and shaping in fabrication, toolroom, foundry, engineering workshop and maintenance (MRO) work

Design features

• Double cut (chisel tooth) pattern: for rapid stock removal in the harder materials, with minimal tool chatter and a granular chip in most materials
• Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
• Bright finish
• Head profile: tapered, with a radiused end
• Shank: 1/4" (6.35 mm), for standard 1/4" die grinder collets
• Long reach: 7-1/16" (179.4 mm) overall length for reaching into deeper recesses

Dimensions

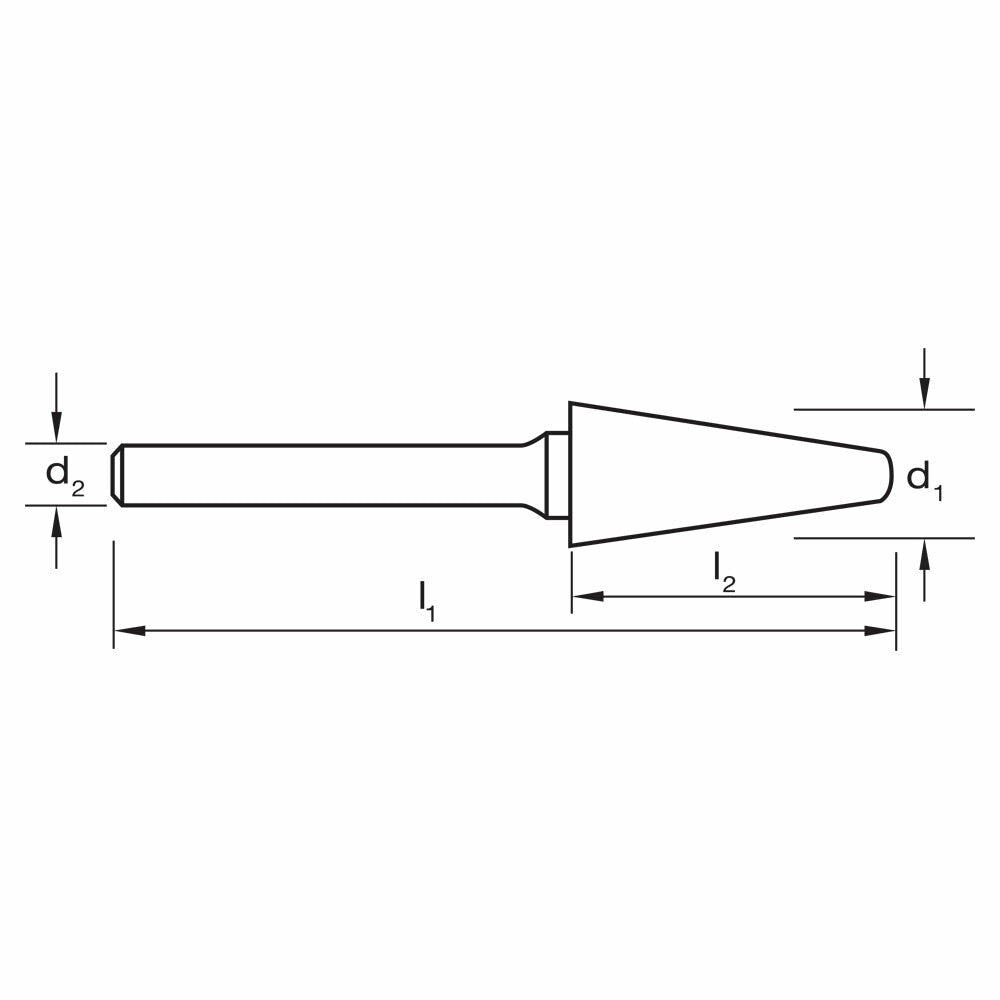

Dimensions: d1 is the head diameter, l2 the cut length, l1 the overall length and d2 the shank diameter, with the angle where the catalogue gives one. Imperial sizes are shown with the metric equivalent in brackets.

Recommended cutting speeds

Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs. These burrs are long reach, so reduce the speeds shown by 50%.

Key specifications

Related Sutton carbide burrs

Compare other shapes and lengths in this range: B207 taper shape radius end carbide burrs (double cut), B220 taper shape radius end carbide burrs (aluminium cut), B307 taper shape radius end carbide burrs (metric, 6 mm shank, double cut), B900SCB100 carbide burr set (5 piece), B900SCB300 carbide burr set (5 piece).
