Sutton B220 Taper Radius End Carbide Burr, 1/2" x 1-1/8", 1/4" Shank, Aluminium Cut
Available

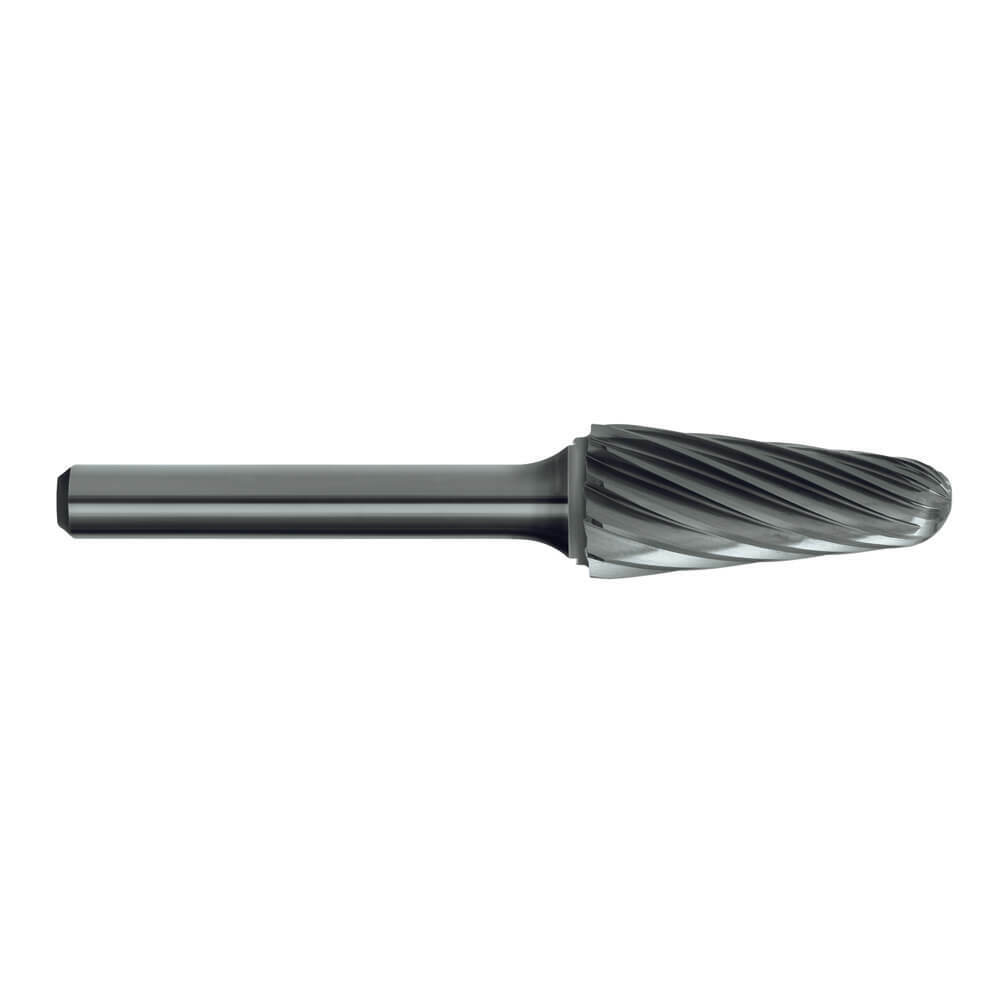

The Sutton B220 is an aluminium cut, taper shape radius end carbide burr with a solid carbide (VHM) head and bright finish, supplied with a 1/4" (6.35 mm) shank.
The Al Cut pattern is for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts.
This listing covers 3 sizes, with head diameters from 1/2" (12.7 mm) to 3/4" (19.1 mm) and overall lengths of 2-7/8" (73 mm) to 3-1/4" (82.6 mm). Dimensions are as published in Sutton's catalogue.
Fit it to a die grinder or other high-speed rotary tool with a collet that matches the shank, and keep to the recommended speeds for the head diameter shown below.
Where this burr is used
- Deburring, blending and finishing in tapered, angled and tight areas
- Cleaning up weld in Vee joints and corners
- Finishing recesses, where the radiused tip avoids leaving a sharp corner
- Aluminium, brass, copper and plastics: soft materials that tend to load a standard cut
- Weld cleanup, deburring and shaping in fabrication, toolroom, foundry, engineering workshop and maintenance (MRO) work
Design features
- Al Cut pattern: for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts
- Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
- Bright finish
- Head profile: tapered, with a radiused end
- Shank: 1/4" (6.35 mm), for standard 1/4" die grinder collets
Sizes
Dimensions: d1 is the head diameter, l2 the cut length, l1 the overall length and d2 the shank diameter, with the angle where the catalogue gives one. Imperial sizes are shown with the metric equivalent in brackets.
| Item no. | Head diameter d1 | Cut length l2 | Overall length l1 | Shank d2 | Angle |
|---|---|---|---|---|---|
| B220SL4AC | 1/2" (12.7 mm) | 1-1/8" (28.6 mm) | 2-7/8" (73 mm) | 1/4" (6.35 mm) | 14° |
| B220SL6AC | 5/8" (15.9 mm) | 1-5/16" (33.3 mm) | 3-1/16" (77.8 mm) | 1/4" (6.35 mm) | 14° |
| B220SL7AC | 3/4" (19.1 mm) | 1-1/2" (38.1 mm) | 3-1/4" (82.6 mm) | 1/4" (6.35 mm) | 14° |
Recommended cutting speeds
Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs.
| Head diameter | Aluminium cut (RPM) | Maximum (RPM) |
|---|---|---|
| 1/2" (12.7 mm) | 15,000 | 24,000 |
| 5/8" (15.9 mm) | 12,000 | 23,000 |
| 3/4" (19.1 mm) | 10,000 | 21,000 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Catalogue code | B220 |
| Head shape | Taper Shape Radius End |
| Cut | Aluminium Cut |
| Material | Solid carbide (VHM) |
| Finish | Bright |
| Shank | 1/4" (6.35 mm) |
| Head diameter | 1/2" to 3/4" |
| Overall length | 2-7/8" to 3-1/4" |
| System of measurement | Imperial |
| Angle | 14° |
| Sizes in this listing | 3 |
Related Sutton carbide burrs
Compare other shapes and lengths in this range: B207 taper shape radius end carbide burrs (double cut), B214 taper shape radius end carbide burrs (double cut, long reach), B307 taper shape radius end carbide burrs (metric, 6 mm shank, double cut), B900SCB100 carbide burr set (5 piece), B900SCB300 carbide burr set (5 piece).
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton B220 Carbide Burr - Taper Shape Radius End - Aluminium Cut: 1/2
SKU: A0002553 | Model: B220SL4AC
Burr Diameter (inch) 1/2. Features
Taper Shape Carbide Burs
The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
Applications
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤ 12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤ 12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
