Sutton E100 1mm Slot Drill 2 Flute - 8% Cobalt HSS - Regular
Available

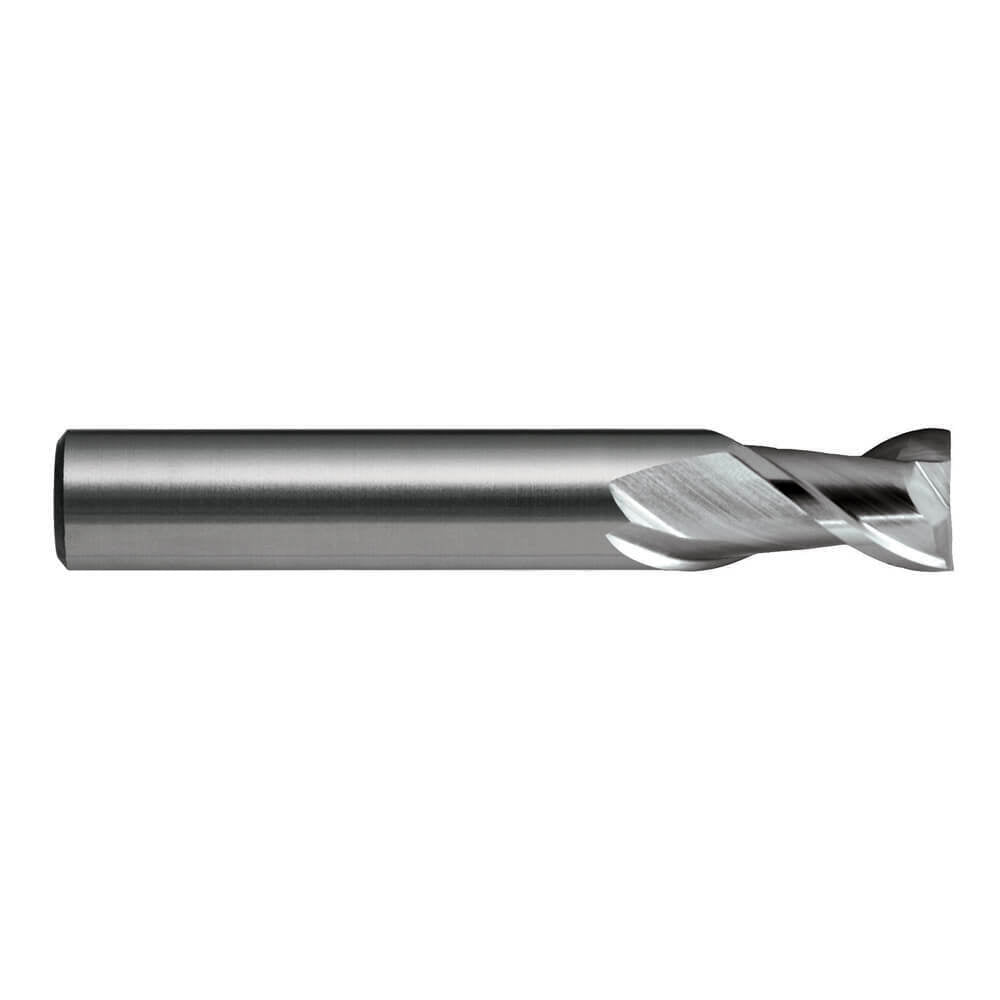

The Sutton E100 is a 2 flute slot drill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the regular length series. This listing covers 35 metric sizes from 1 mm to 32 mm.
The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and e8 cutting diameter tolerance.
Where this product is used
- Precision milling of slots and cavities in soft steels and non-ferrous materials, up to 1000 N/mm2.

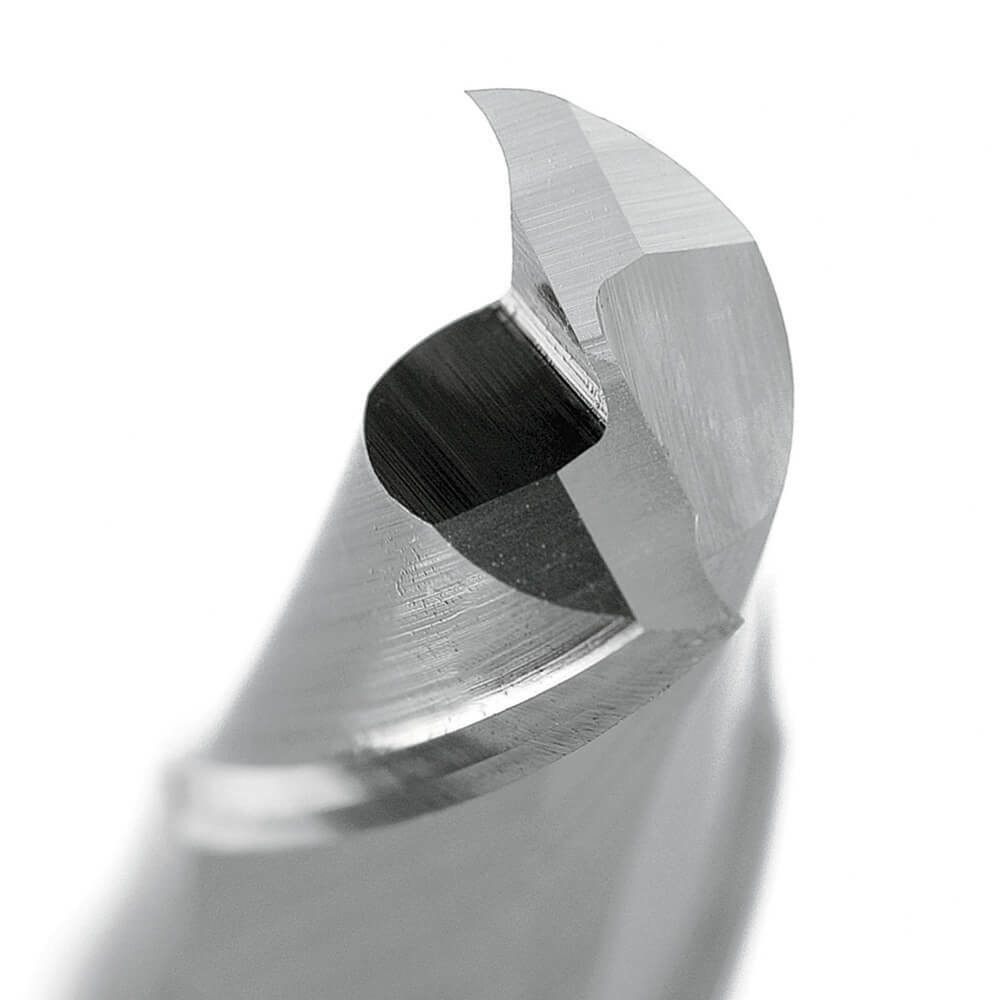

- Plunging straight into the workpiece before slotting, because a slot drill cuts on its end face.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- Bright finish.
- 2 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

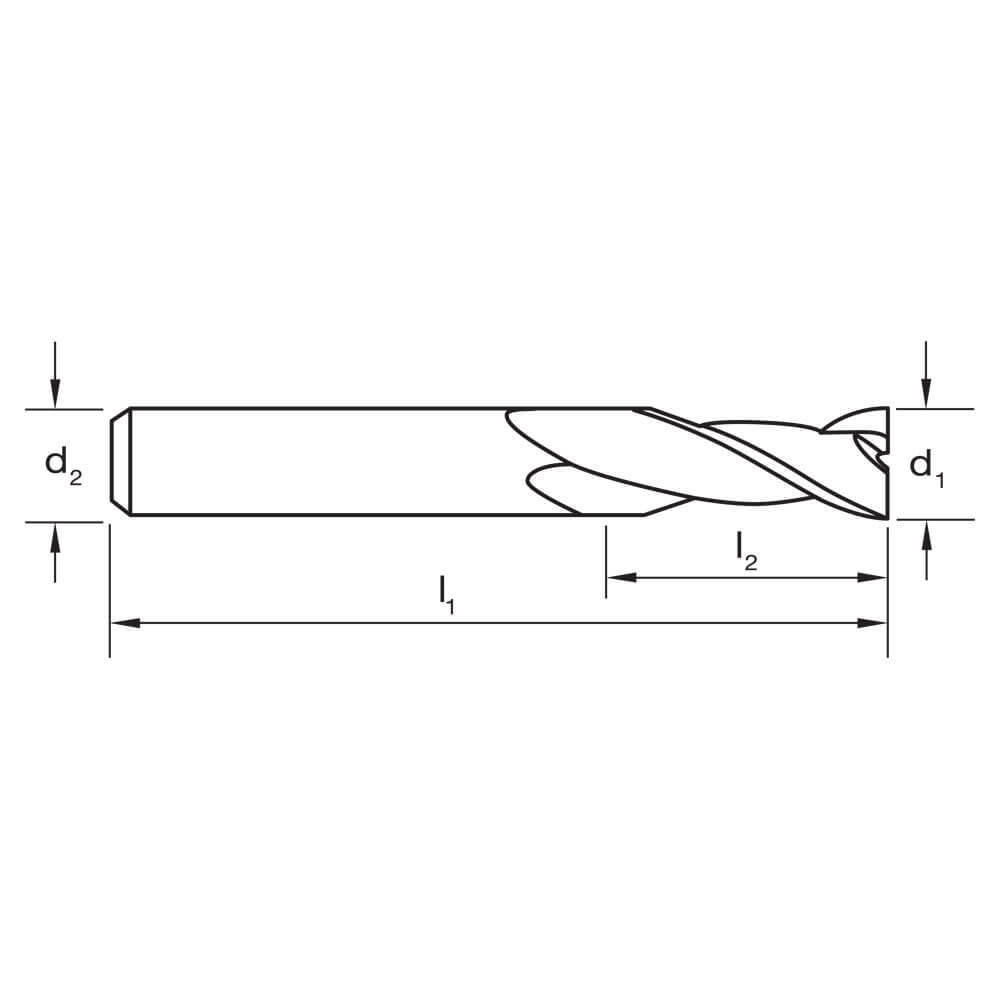

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E100 0100 | 1 | 50 | 3 | 6 | 2 |
| E100 0150 | 1.5 | 50 | 4.5 | 6 | 2 |
| E100 0200 | 2 | 50 | 7 | 6 | 2 |
| E100 0250 | 2.5 | 50 | 7 | 6 | 2 |
| E100 0300 | 3 | 50 | 9 | 6 | 2 |
| E100 0350 | 3.5 | 60 | 12 | 8 | 2 |
| E100 0400 | 4 | 60 | 12 | 8 | 2 |
| E100 0450 | 4.5 | 60 | 15 | 8 | 2 |
| E100 0500 | 5 | 60 | 15 | 8 | 2 |
| E100 0550 | 5.5 | 60 | 15 | 8 | 2 |
| E100 0600 | 6 | 60 | 15 | 8 | 2 |
| E100 0650 | 6.5 | 65 | 20 | 10 | 2 |
| E100 0700 | 7 | 65 | 20 | 10 | 2 |
| E100 0750 | 7.5 | 65 | 20 | 10 | 2 |
| E100 0800 | 8 | 65 | 20 | 10 | 2 |
| E100 0850 | 8.5 | 75 | 25 | 10 | 2 |
| E100 0900 | 9 | 75 | 25 | 10 | 2 |
| E100 0950 | 9.5 | 75 | 25 | 10 | 2 |
| E100 1000 | 10 | 75 | 25 | 10 | 2 |
| E100 1100 | 11 | 80 | 30 | 12 | 2 |
| E100 1200 | 12 | 80 | 30 | 12 | 2 |
| E100 1300 | 13 | 90 | 35 | 16 | 2 |
| E100 1400 | 14 | 90 | 35 | 16 | 2 |
| E100 1500 | 15 | 95 | 40 | 16 | 2 |
| E100 1600 | 16 | 95 | 40 | 16 | 2 |
| E100 1700 | 17 | 105 | 40 | 20 | 2 |
| E100 1800 | 18 | 105 | 40 | 20 | 2 |
| E100 1900 | 19 | 110 | 45 | 20 | 2 |
| E100 2000 | 20 | 110 | 45 | 20 | 2 |
| E100 2200 | 22 | 110 | 45 | 20 | 2 |
| E100 2400 | 24 | 120 | 50 | 25 | 2 |
| E100 2500 | 25 | 120 | 50 | 25 | 2 |
| E100 2800 | 28 | 125 | 55 | 25 | 2 |
| E100 3000 | 30 | 125 | 55 | 25 | 2 |
| E100 3200 | 32 | 145 | 60 | 32 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E100 |
| Type | Slot Drill, 2 flute, regular length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Sizes in this listing | 35 sizes, 1 to 32 mm |
Related products
Related Sutton slot drills: E100 imperial slot drill (regular), E100 21 mm slot drill (regular), E102 imperial slot drill (long), E102 metric slot drill (long), E102 metric slot drill (long).
