Sutton E125 1.5mm Endmill 4 Flute - 8% Cobalt HSS - Regular
Available

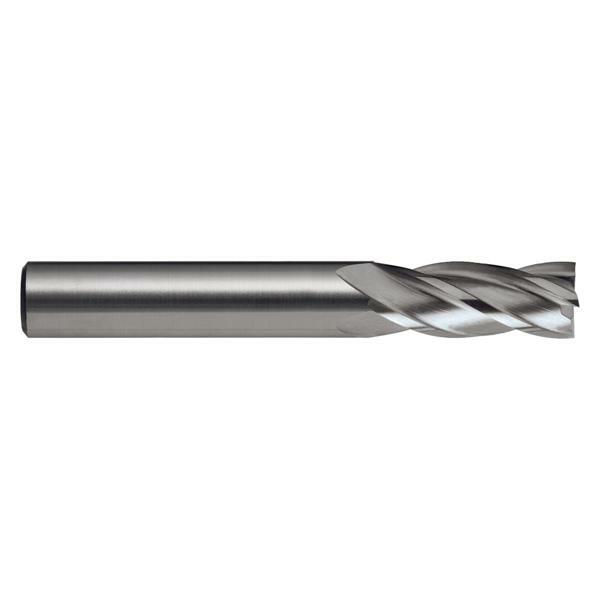

The Sutton E125 is a 4 flute endmill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the regular length series. This listing covers 36 metric sizes from 1.5 mm to 32 mm. The 28, 30 and 32 mm sizes have 6 flutes.

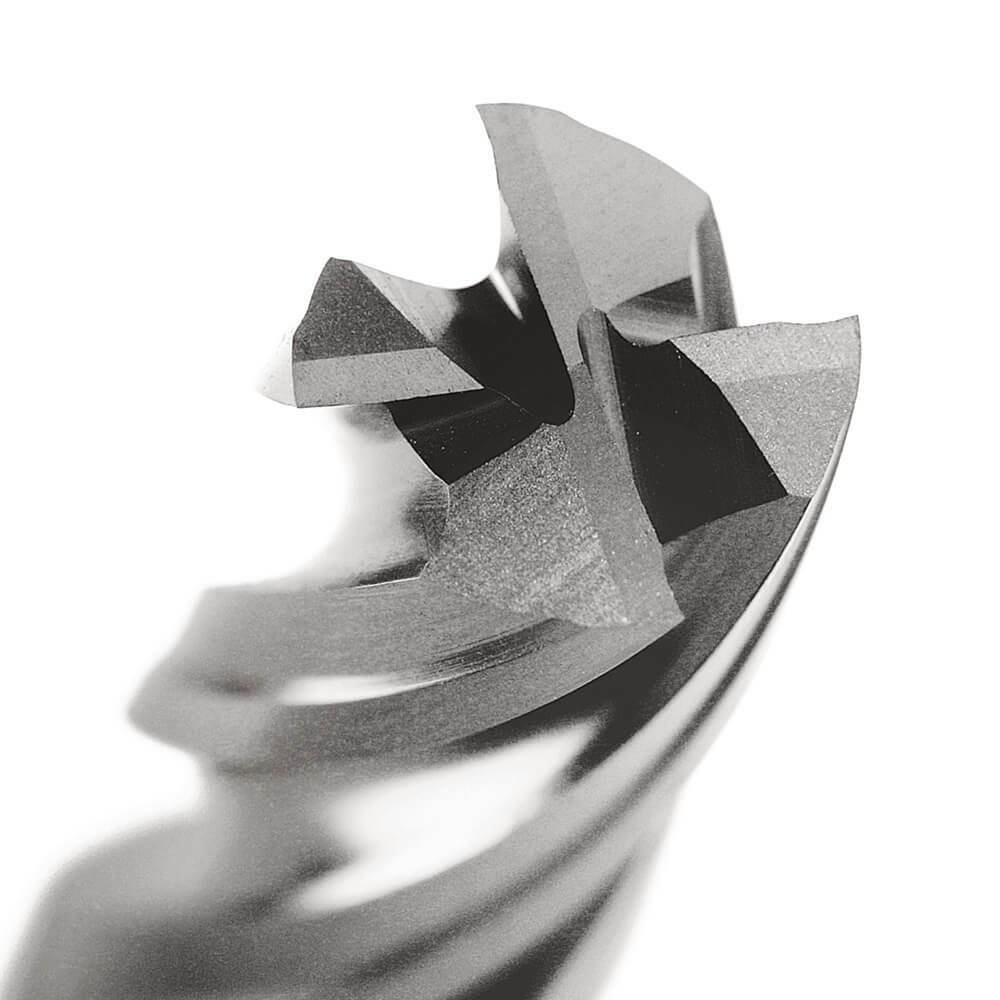

The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and k9 cutting diameter tolerance.
Where this product is used
- Precision finish milling in steels up to 1000 N/mm2.
- Side milling, shoulder milling and profiling on manual and CNC milling machines.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- Bright finish.
- 4 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) k9, shank h6.
Sizes

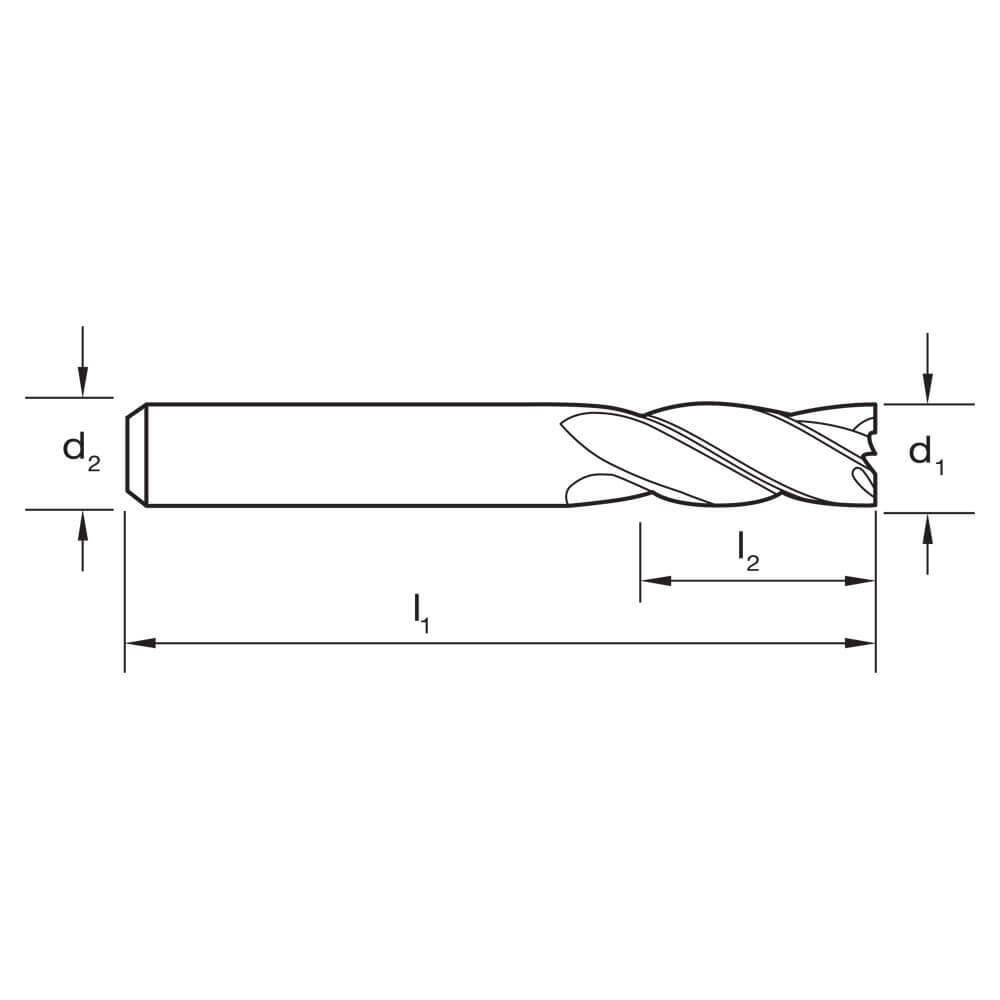

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E125 0150 | 1.5 | 50 | 3 | 6 | 4 |
| E125 0200 | 2 | 50 | 6 | 6 | 4 |
| E125 0250 | 2.5 | 50 | 7 | 6 | 4 |
| E125 0300 | 3 | 50 | 9 | 6 | 4 |
| E125 0350 | 3.5 | 60 | 12 | 8 | 4 |
| E125 0400 | 4 | 60 | 12 | 8 | 4 |
| E125 0450 | 4.5 | 60 | 15 | 8 | 4 |
| E125 0500 | 5 | 60 | 15 | 8 | 4 |
| E125 0550 | 5.5 | 60 | 15 | 8 | 4 |
| E125 0600 | 6 | 60 | 15 | 8 | 4 |
| E125 0650 | 6.5 | 65 | 20 | 10 | 4 |
| E125 0700 | 7 | 65 | 20 | 10 | 4 |
| E125 0750 | 7.5 | 65 | 20 | 10 | 4 |
| E125 0800 | 8 | 65 | 20 | 10 | 4 |
| E125 0850 | 8.5 | 75 | 25 | 10 | 4 |
| E125 0900 | 9 | 75 | 25 | 10 | 4 |
| E125 0950 | 9.5 | 75 | 25 | 10 | 4 |
| E125 1000 | 10 | 75 | 25 | 10 | 4 |
| E125 1050 | 10.5 | 80 | 30 | 12 | 4 |
| E125 1100 | 11 | 80 | 30 | 12 | 4 |
| E125 1150 | 11.5 | 80 | 30 | 12 | 4 |
| E125 1200 | 12 | 80 | 30 | 12 | 4 |
| E125 1300 | 13 | 90 | 35 | 16 | 4 |
| E125 1400 | 14 | 90 | 35 | 16 | 4 |
| E125 1500 | 15 | 95 | 40 | 16 | 4 |
| E125 1600 | 16 | 95 | 40 | 16 | 4 |
| E125 1700 | 17 | 105 | 40 | 20 | 4 |
| E125 1800 | 18 | 105 | 40 | 20 | 4 |
| E125 1900 | 19 | 110 | 45 | 20 | 4 |
| E125 2000 | 20 | 110 | 45 | 20 | 4 |
| E125 2200 | 22 | 110 | 45 | 20 | 4 |
| E125 2400 | 24 | 120 | 50 | 25 | 4 |
| E125 2500 | 25 | 120 | 50 | 25 | 4 |
| E125 2800 | 28 | 125 | 55 | 25 | 6 |
| E125 3000 | 30 | 125 | 55 | 25 | 6 |
| E125 3200 | 32 | 145 | 60 | 32 | 6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E125 |
| Type | Endmill, 4 flute, regular length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | k9 |
| Shank tolerance | h6 |
| Sizes in this listing | 36 sizes, 1.5 to 32 mm |
