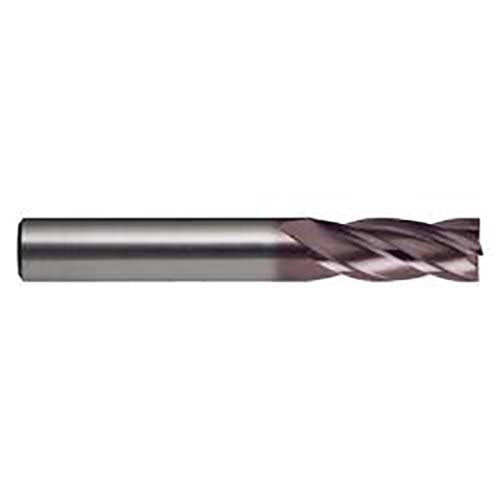

Sutton E192 2mm Endmill 4 Flute - 8% Cobalt HSS - TiAlN - Regular
Available
The Sutton E192 is a 4 flute endmill made from 8% cobalt high speed steel (HSS Co.8), with a TiAlN coating. It is in the regular length series. This listing covers 20 metric sizes from 2 mm to 22 mm. The 22 mm size has 6 flutes.
The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and k9 cutting diameter tolerance.
Where this product is used
- Precision finish milling in steels up to 1000 N/mm2.
- Side milling, shoulder milling and profiling on manual and CNC milling machines.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- TiAlN coating for longer tool life.
- 4 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) k9, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E192 0200 | 2 | 51 | 7 | 6 | 4 |
| E192 0250 | 2.5 | 52 | 8 | 6 | 4 |
| E192 0300 | 3 | 52 | 8 | 6 | 4 |
| E192 0400 | 4 | 55 | 11 | 6 | 4 |
| E192 0500 | 5 | 57 | 13 | 6 | 4 |
| E192 0600 | 6 | 57 | 13 | 6 | 4 |
| E192 0700 | 7 | 66 | 16 | 10 | 4 |
| E192 0800 | 8 | 69 | 19 | 10 | 4 |
| E192 0900 | 9 | 69 | 19 | 10 | 4 |
| E192 1000 | 10 | 72 | 22 | 10 | 4 |
| E192 1100 | 11 | 79 | 22 | 12 | 4 |
| E192 1200 | 12 | 83 | 26 | 12 | 4 |
| E192 1300 | 13 | 83 | 26 | 12 | 4 |
| E192 1400 | 14 | 83 | 26 | 12 | 4 |
| E192 1500 | 15 | 83 | 26 | 12 | 4 |
| E192 1600 | 16 | 92 | 32 | 16 | 4 |
| E192 1700 | 17 | 92 | 32 | 16 | 4 |
| E192 1800 | 18 | 92 | 32 | 16 | 4 |
| E192 2000 | 20 | 104 | 38 | 20 | 4 |
| E192 2200 | 22 | 121 | 45 | 20 | 6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E192 |
| Type | Endmill, 4 flute, regular length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | TiAlN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | k9 |
| Shank tolerance | h6 |
| Sizes in this listing | 20 sizes, 2 to 22 mm |
