Sutton E227 3.5mm Endmill 4 Flute - 8% Cobalt HSS - Regular
Available

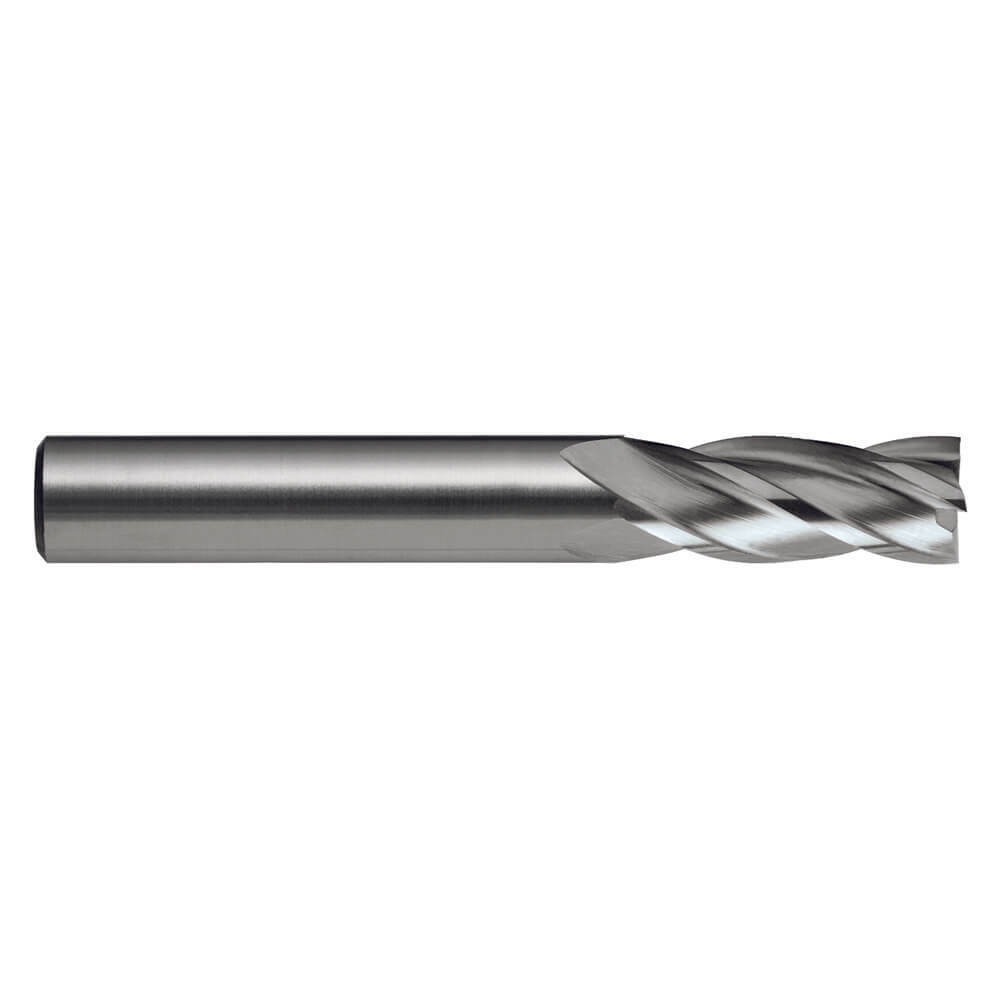

The Sutton E227 is a 4 flute endmill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the regular length series. This listing covers 6 metric sizes from 3.5 mm to 6 mm.

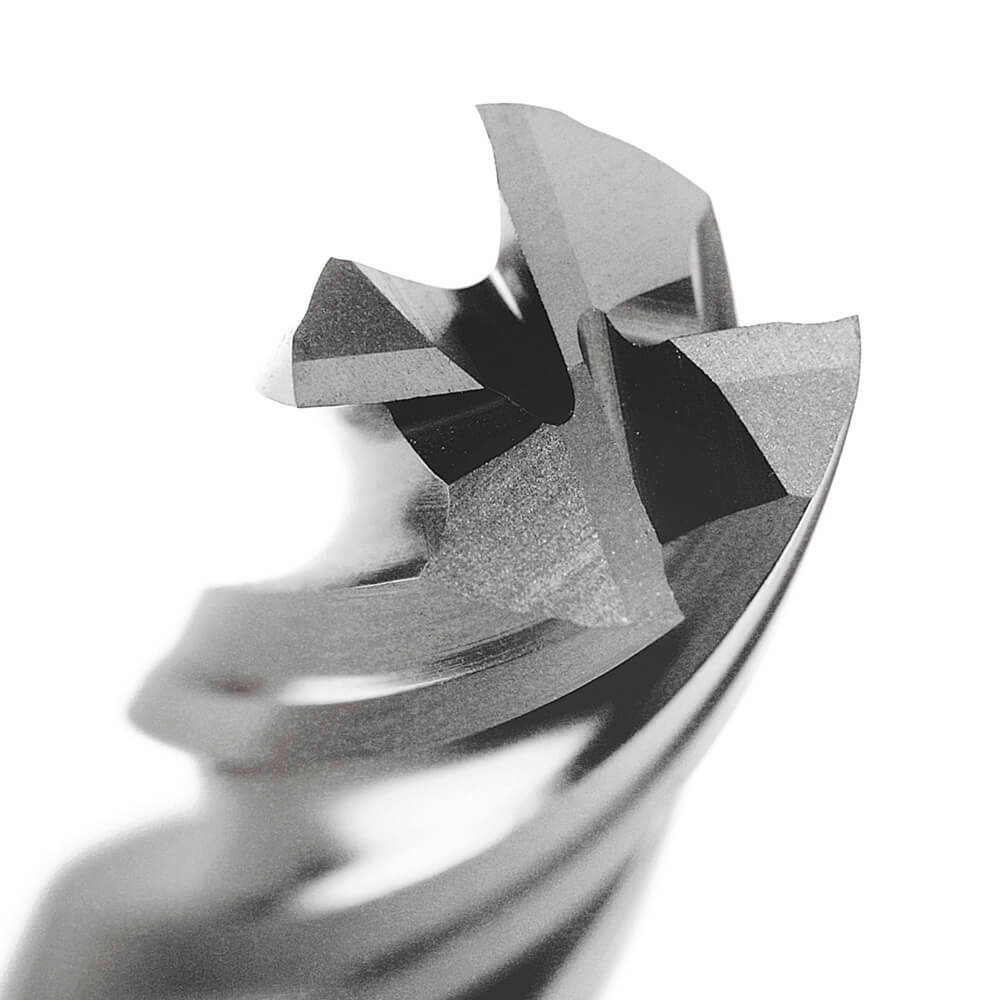

The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and k9 cutting diameter tolerance.
Where this product is used
- Precision finish milling in steels up to 1000 N/mm2.
- Side milling, shoulder milling and profiling on manual and CNC milling machines.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- Bright finish.
- 4 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) k9, shank h6.
Sizes

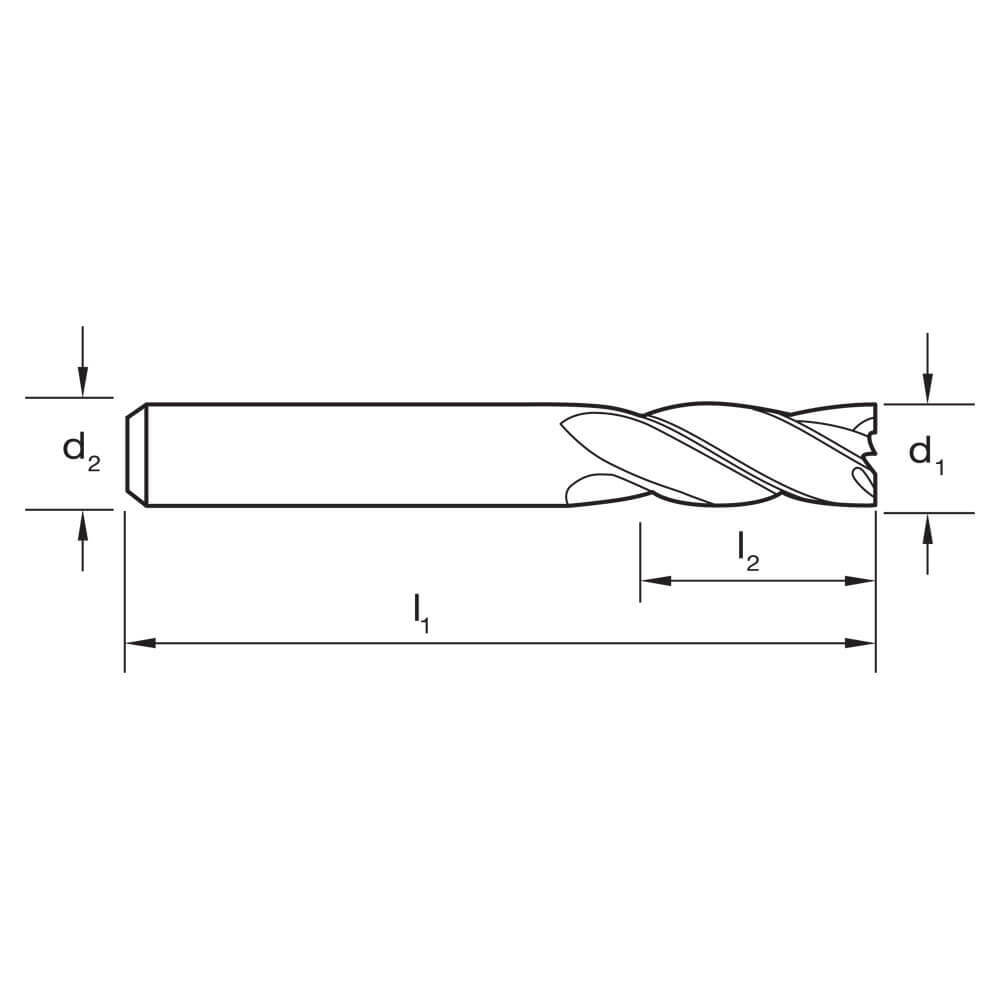

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E227 0350 | 3.5 | 60 | 12 | 6 | 4 |
| E227 0400 | 4 | 60 | 12 | 6 | 4 |
| E227 0450 | 4.5 | 60 | 15 | 6 | 4 |
| E227 0500 | 5 | 60 | 15 | 6 | 4 |
| E227 0550 | 5.5 | 60 | 15 | 6 | 4 |
| E227 0600 | 6 | 60 | 15 | 6 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E227 |
| Type | Endmill, 4 flute, regular length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | k9 |
| Shank tolerance | h6 |
| Sizes in this listing | 6 sizes, 3.5 to 6 mm |
Related products
Related Sutton endmills: E125 imperial endmill (regular), E125 metric endmill (regular), E125 7/8 in endmill (regular), E192 metric endmill (regular), TiAlN, E127 imperial endmill (long).
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton E227 Metric 4 Flute Endmill - 8% Cobalt Steel - Regular: 3.5
SKU: A0009100 | Model: E2270350
This is the cutting tip 3.5 option of the Sutton E227 Metric 4 Flute Endmill - 8% Cobalt Steel - Regular. Key details for this option: cutting diameter 3.5mm, overall length 60mm, flute length 12mm.
Descriptions
The Sutton E227 is a 4 flute endmill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the regular length series. This listing covers 6 metric sizes from 3.5 mm to 6 mm.
The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and k9 cutting diameter tolerance.
