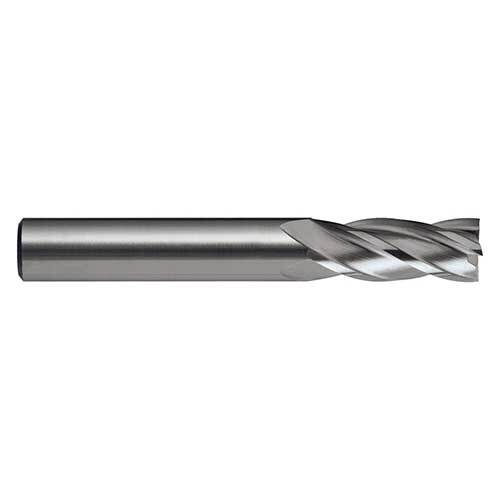

Sutton E1252223 7/8 x 4-5/16" 4 Flute Endmill - 8% Cobalt Steel - Regular1

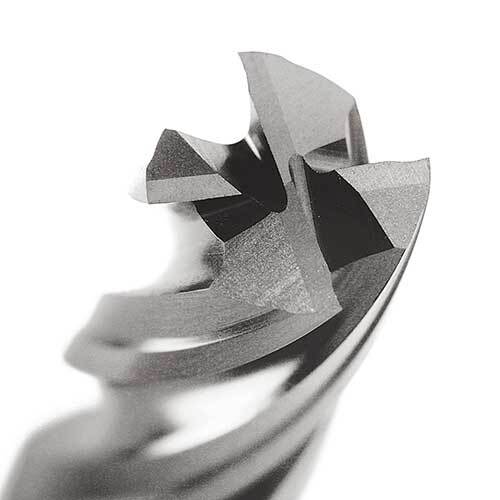

Sutton E1252223 7/8 x 4-5/16" 4 Flute Endmill - 8% Cobalt Steel - Regular2

Sutton E1252223 7/8 x 4-5/16" 4 Flute Endmill - 8% Cobalt Steel - Regular3

Description +

Sutton Tools 4 Flute Endmill - R30 N - Regular

For precision finish milling applications

Specifications +

Specifications

Designation: N
Material: High Speed Steel Cobalt-8
Finish: Bright
Shank Form: A
Helix Angle: R30
Point Tolerance: k9
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Standard: JIS

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Features & Benefits +

Features

4 Flute Endmill R30 N
Suitable for materials up to 1000 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E1252223 7/8 x 4-5/16" 4 Flute Endmill - 8% Cobalt Steel - Regular

SKU: A0131809

Type: Endmill

$285.80

Inc. GST

Buy It Now

Available

The Sutton E1252223 7/8 x 4-5/16" 4 Flute Endmill by Sutton Tools is an Endmill manufactured from High Speed Steel Cobalt-8. It provides performance up to 1000 N/mm2 and is suitable for precision finish milling applications.
