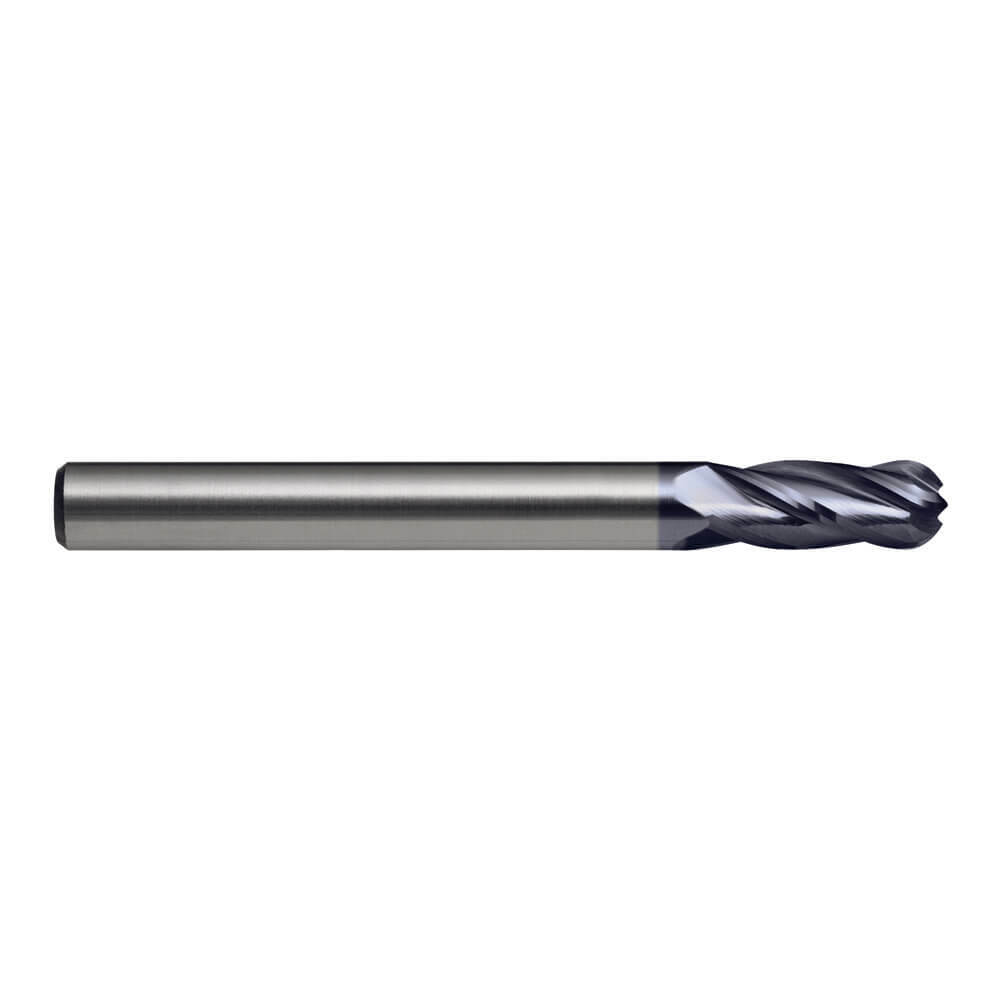

Sutton E557 2mm Ball Nose Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Long Reach
Available

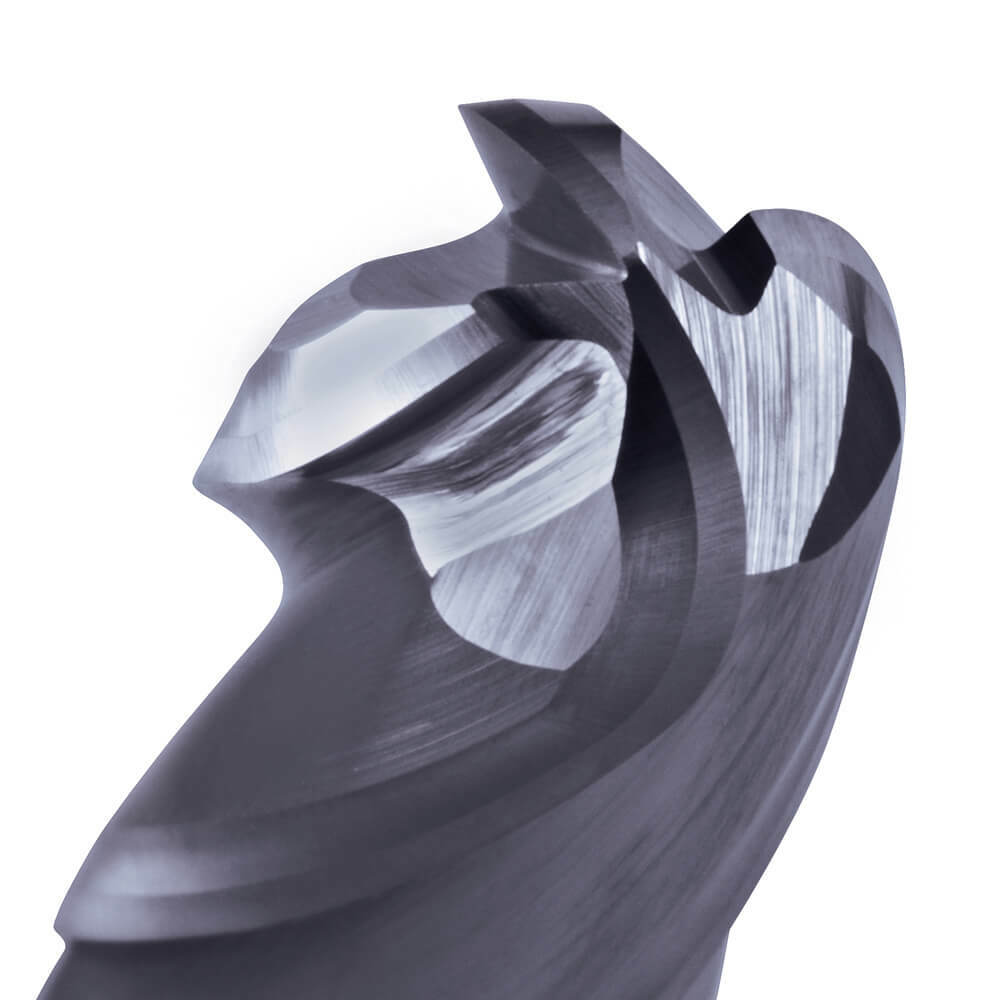

The Sutton E557 is a 4 flute ball nose endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the long reach series. This listing covers 13 metric sizes from 2 mm to 25 mm.
The cutting edge has a 30° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance.
Where this product is used
- Profile and contour milling in long reach applications.
- Materials up to 1600 N/mm2.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E557 0200 | 2 | 50 | 5 | 6 | 4 |
| E557 0300 | 3 | 60 | 8 | 6 | 4 |
| E557 0400 | 4 | 70 | 8 | 6 | 4 |
| E557 0500 | 5 | 80 | 10 | 6 | 4 |
| E557 0600 | 6 | 90 | 12 | 6 | 4 |
| E557 0800 | 8 | 100 | 14 | 8 | 4 |
| E557 1000 | 10 | 100 | 18 | 10 | 4 |
| E557 1200 | 12 | 110 | 22 | 12 | 4 |
| E557 1400 | 14 | 110 | 26 | 14 | 4 |
| E557 1600 | 16 | 140 | 30 | 16 | 4 |
| E557 1800 | 18 | 140 | 34 | 16 | 4 |
| E557 2000 | 20 | 160 | 38 | 20 | 4 |
| E557 2500 | 25 | 182 | 61 | 25 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E557 |
| Type | Ball Nose Endmill, 4 flute, long reach |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Sizes in this listing | 13 sizes, 2 to 25 mm |
Related products
Related Sutton carbide ball nose endmills: E558 metric ball nose endmill (long reach), AlCrN, Weldon flat shank, E606 metric ball nose endmill (regular), plain shank, E607 metric ball nose endmill (regular), TiAlN, plain shank, E582 metric micro ball nose endmill (long reach), TiSiN, plain shank.
