Sutton E582 0.2mm Micro Ball Nose Endmill 2 Flute - Carbide VHM - TiSiN - Long Reach, 0.5 mm reach
Available

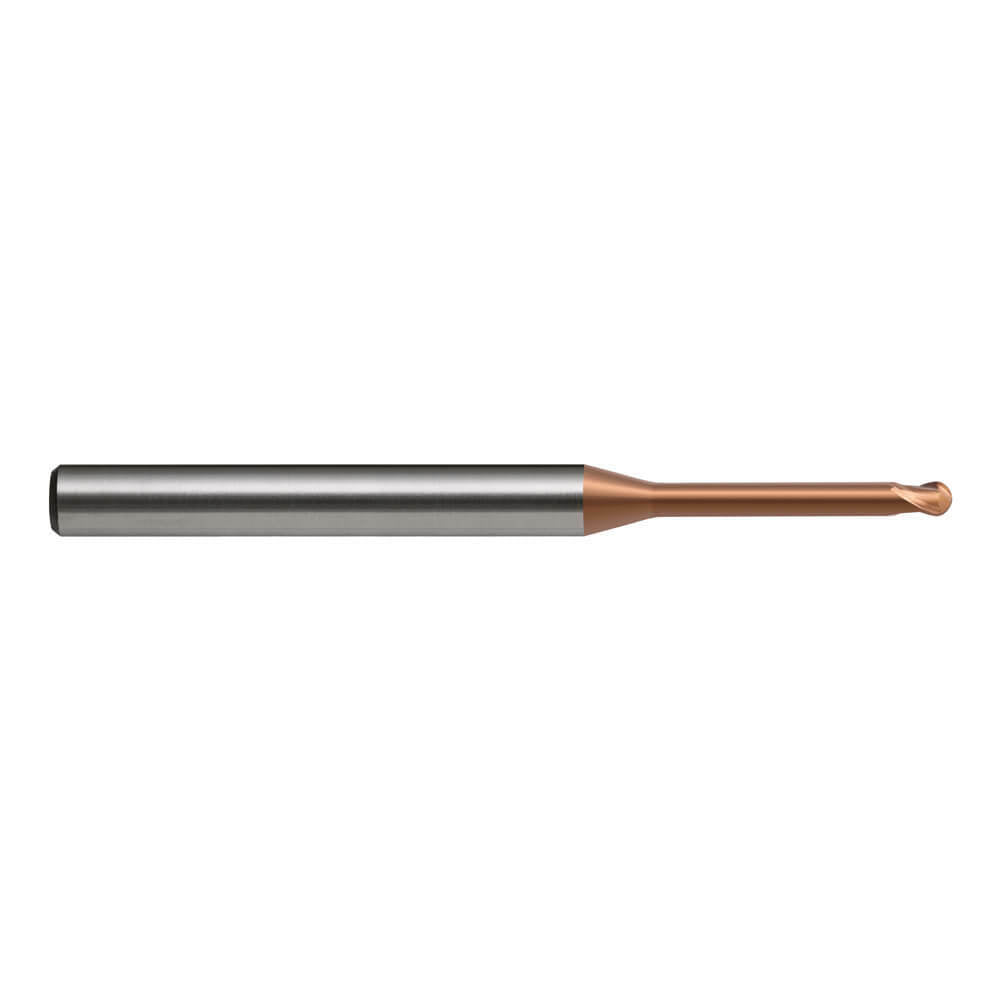

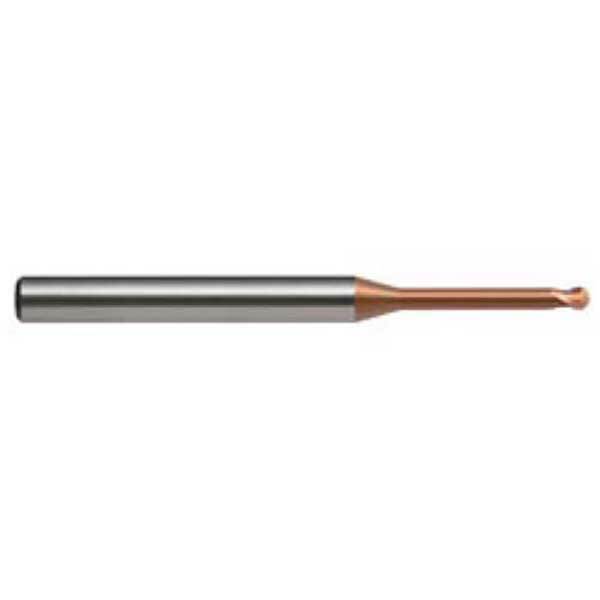

The Sutton E582 is a 2 flute micro ball nose endmill made from solid carbide (VHM), with a TiSiN coating. It is in the long reach series. This listing covers 50 metric sizes from 0.2 mm to 3 mm.
The cutting edge has a 30° helix. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Profile and contour milling in long reach applications.
- Materials of 35-52 HRC.
Design features
- Solid carbide (VHM) construction.
- TiSiN coating for high speed machining.
- 2 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E582 0021 | 0.2 | 50 | 0.2 | 0.5 | 4 | 0.15 | 2 | 0.1 |
| E582 0022 | 0.2 | 50 | 0.2 | 1 | 4 | 0.15 | 2 | 0.1 |
| E582 0023 | 0.2 | 50 | 0.2 | 1.5 | 4 | 0.15 | 2 | 0.1 |
| E582 0031 | 0.3 | 50 | 0.3 | 1 | 4 | 0.25 | 2 | 0.15 |
| E582 0032 | 0.3 | 50 | 0.3 | 2 | 4 | 0.25 | 2 | 0.15 |
| E582 0033 | 0.3 | 50 | 0.3 | 3 | 4 | 0.25 | 2 | 0.15 |
| E582 0040 | 0.4 | 50 | 0.4 | 1 | 4 | 0.35 | 2 | 0.2 |
| E582 0041 | 0.4 | 50 | 0.4 | 2 | 4 | 0.35 | 2 | 0.2 |
| E582 0043 | 0.4 | 50 | 0.4 | 3 | 4 | 0.35 | 2 | 0.2 |
| E582 0042 | 0.4 | 50 | 0.4 | 4 | 4 | 0.35 | 2 | 0.2 |
| E582 0044 | 0.4 | 50 | 0.4 | 5 | 4 | 0.35 | 2 | 0.2 |
| E582 0051 | 0.5 | 50 | 0.4 | 2 | 4 | 0.45 | 2 | 0.25 |
| E582 0053 | 0.5 | 50 | 0.4 | 3 | 4 | 0.45 | 2 | 0.25 |
| E582 0054 | 0.5 | 50 | 0.4 | 4 | 4 | 0.45 | 2 | 0.25 |
| E582 0055 | 0.5 | 50 | 0.4 | 5 | 4 | 0.45 | 2 | 0.25 |
| E582 0052 | 0.5 | 50 | 0.4 | 6 | 4 | 0.45 | 2 | 0.25 |
| E582 0056 | 0.5 | 50 | 0.4 | 8 | 4 | 0.45 | 2 | 0.25 |
| E582 0061 | 0.6 | 50 | 0.5 | 2 | 4 | 0.55 | 2 | 0.3 |
| E582 0065 | 0.6 | 50 | 0.5 | 3 | 4 | 0.55 | 2 | 0.3 |
| E582 0062 | 0.6 | 50 | 0.5 | 4 | 4 | 0.55 | 2 | 0.3 |
| E582 0066 | 0.6 | 50 | 0.5 | 5 | 4 | 0.55 | 2 | 0.3 |
| E582 0063 | 0.6 | 50 | 0.5 | 6 | 4 | 0.55 | 2 | 0.3 |
| E582 0064 | 0.6 | 50 | 0.5 | 8 | 4 | 0.55 | 2 | 0.3 |
| E582 0081 | 0.6 | 50 | 0.6 | 4 | 4 | 0.75 | 2 | 0.4 |
| E582 0082 | 0.8 | 50 | 0.6 | 8 | 4 | 0.75 | 2 | 0.4 |
| E582 0083 | 0.8 | 50 | 0.6 | 10 | 4 | 0.75 | 2 | 0.4 |
| E582 0101 | 1 | 50 | 0.8 | 4 | 4 | 0.95 | 2 | 0.5 |
| E582 0102 | 1 | 50 | 0.8 | 6 | 4 | 0.95 | 2 | 0.5 |
| E582 0103 | 1 | 50 | 0.8 | 8 | 4 | 0.95 | 2 | 0.5 |
| E582 0104 | 1 | 50 | 0.8 | 10 | 4 | 0.95 | 2 | 0.5 |
| E582 0105 | 1 | 50 | 0.8 | 12 | 4 | 0.95 | 2 | 0.5 |
| E582 0106 | 1 | 50 | 0.8 | 14 | 4 | 0.95 | 2 | 0.5 |
| E582 0107 | 1 | 60 | 0.8 | 20 | 4 | 0.95 | 2 | 0.5 |
| E582 0121 | 1.2 | 50 | 1 | 8 | 4 | 1.15 | 2 | 0.6 |
| E582 0123 | 1.2 | 50 | 1 | 10 | 4 | 1.15 | 2 | 0.6 |
| E582 0122 | 1.2 | 50 | 1 | 12 | 4 | 1.15 | 2 | 0.6 |
| E582 0151 | 1.5 | 50 | 1.2 | 8 | 4 | 1.45 | 2 | 0.75 |
| E582 0152 | 1.5 | 50 | 1.2 | 12 | 4 | 1.45 | 2 | 0.75 |
| E582 0153 | 1.5 | 50 | 1.2 | 16 | 4 | 1.45 | 2 | 0.75 |
| E582 0154 | 1.5 | 50 | 1.2 | 18 | 4 | 1.45 | 2 | 0.75 |
| E582 0201 | 2 | 50 | 1.6 | 6 | 4 | 1.95 | 2 | 1.0 |
| E582 0202 | 2 | 50 | 1.6 | 8 | 4 | 1.95 | 2 | 1.0 |
| E582 0203 | 2 | 50 | 1.6 | 12 | 4 | 1.95 | 2 | 1.0 |
| E582 0204 | 2 | 50 | 1.6 | 16 | 4 | 1.95 | 2 | 1.0 |
| E582 0205 | 2 | 60 | 1.6 | 20 | 4 | 1.95 | 2 | 1.0 |
| E582 0206 | 2 | 75 | 1.6 | 30 | 4 | 1.95 | 2 | 1.0 |
| E582 0301 | 3 | 50 | 2.4 | 10 | 6 | 2.85 | 2 | 1.5 |
| E582 0302 | 3 | 60 | 2.4 | 16 | 6 | 2.85 | 2 | 1.5 |
| E582 0303 | 3 | 75 | 2.4 | 25 | 6 | 2.85 | 2 | 1.5 |
| E582 0304 | 3 | 75 | 2.4 | 30 | 6 | 2.85 | 2 | 1.5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E582 |
| Type | Micro Ball Nose Endmill, 2 flute, long reach |
| Material | solid carbide (VHM) |
| Finish | TiSiN |
| Helix / geometry | R30 |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Shank tolerance | h6 |
| Sizes in this listing | 50 sizes, 0.2 to 3 mm |
