Save 29%

Sutton E607 Metric 4 Flute Ball Nose Endmill - Carbide TiAlN Regular

Sutton E607 Metric 4 Flute Ball Nose Endmill - Carbide TiAlN Regular

SKU: A0010226

Type: Machining Tool

$20.14
$20.14 $28.77
Inc. GST
⚙Carbide Construction
⚙Sutton Metric Flute Ball
📐Multiple Sizes Available
🔩Precision Milling Operations
🏗Metalworking & Manufacturing
☑Australian Made Quality

Available

Product Highlights −

Description

  • For profile & contour milling applications

Resources

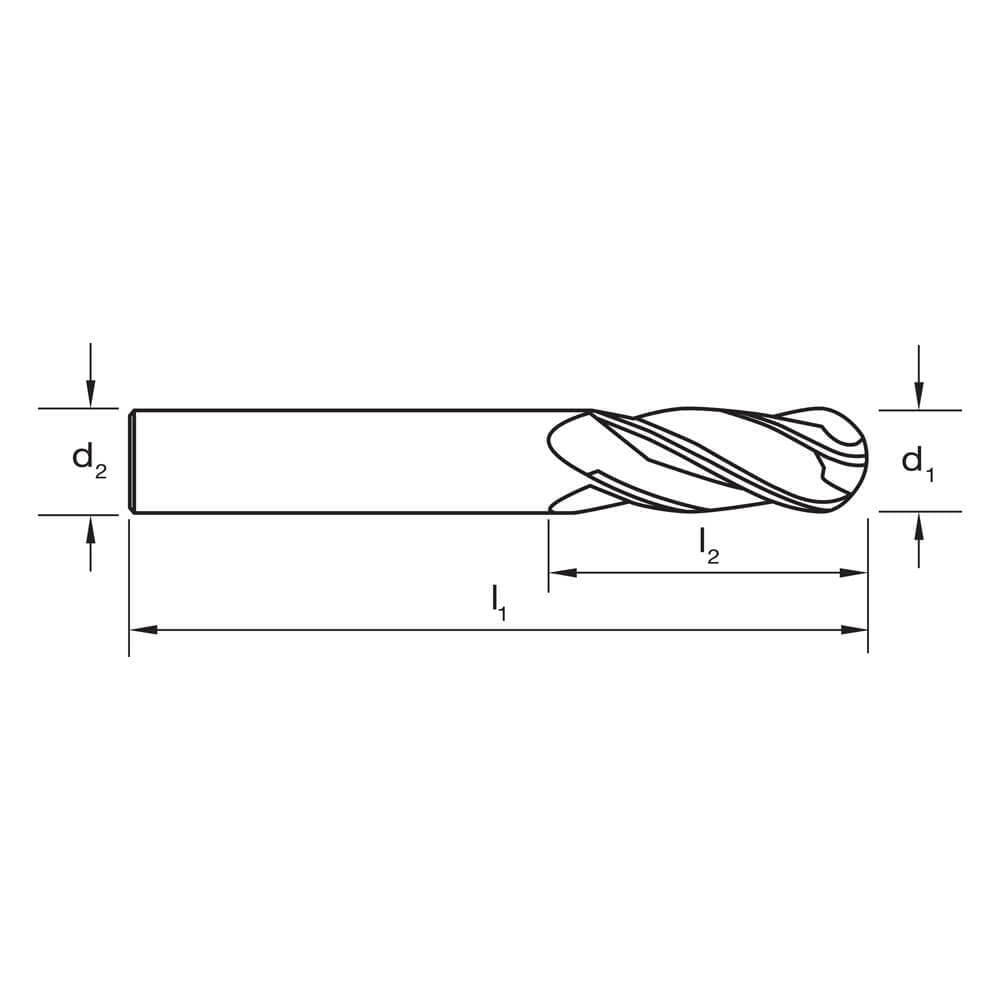

Dimensions

  • d1 (mm): 1
  • d2 (mm): 3
  • l1 (mm): 38
  • l2 (mm): 4
  • Quantity: 1

Specifications

  • Designation: N
  • Material: VHM
  • Finish: TiAIN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - High alloy, cast & tool – 200 HB
  • Optimal for Stainless Steel – Austenitic – 180 HB

Features

  • Ballnose Endmill 4 Flute
  • Suitable for materials up to 1600 N/mm2
  • Increased feed rates than 2 flute variety
  • TiAIN for longer tool life
