Sutton E558 2mm Ball Nose Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Long Reach
Out of stock

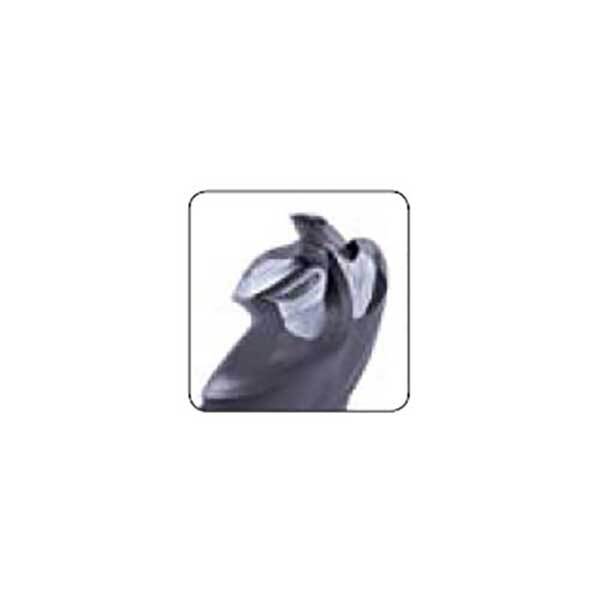

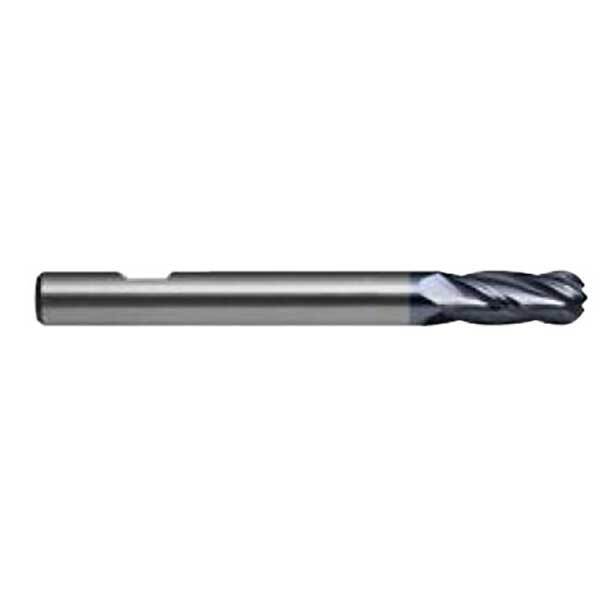

The Sutton E558 is a 4 flute ball nose endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the long reach series. This listing covers 13 metric sizes from 2 mm to 25 mm.
The cutting edge has a 30° helix and the designation is N. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and h10 cutting diameter tolerance.
Where this product is used
- Profile and contour milling in long reach applications.
- Materials up to 1600 N/mm2.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 30° helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

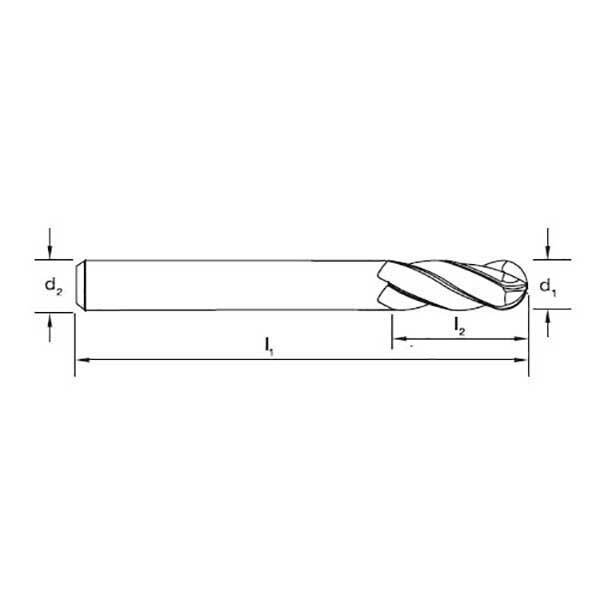

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E558 0200 | 2 | 50 | 5 | 6 | 4 |
| E558 0300 | 3 | 60 | 8 | 6 | 4 |
| E558 0400 | 4 | 70 | 8 | 6 | 4 |
| E558 0500 | 5 | 80 | 10 | 6 | 4 |
| E558 0600 | 6 | 90 | 12 | 6 | 4 |
| E558 0800 | 8 | 100 | 14 | 8 | 4 |
| E558 1000 | 10 | 100 | 18 | 10 | 4 |
| E558 1200 | 12 | 110 | 22 | 12 | 4 |
| E558 1400 | 14 | 110 | 26 | 14 | 4 |
| E558 1600 | 16 | 140 | 30 | 16 | 4 |
| E558 1800 | 18 | 140 | 34 | 16 | 4 |
| E558 2000 | 20 | 160 | 38 | 20 | 4 |
| E558 2500 | 25 | 182 | 61 | 25 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E558 |
| Type | Ball Nose Endmill, 4 flute, long reach |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Sizes in this listing | 13 sizes, 2 to 25 mm |
Related products
Related Sutton carbide ball nose endmills: E557 metric ball nose endmill (long reach), AlCrN, plain shank, E606 metric ball nose endmill (regular), plain shank, E607 metric ball nose endmill (regular), TiAlN, plain shank, E582 metric micro ball nose endmill (long reach), TiSiN, plain shank.
