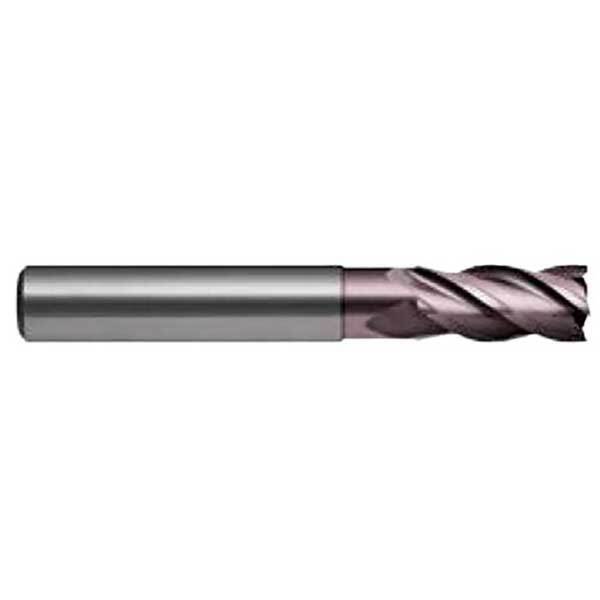

Sutton E635 Metric 4 Flute Endmill - Carbide VHM Ultra - TiAlN - Regular - HA: 3

SKU: A0129776 | Model: E6350300

This is the cutting tip 3 option of the Sutton E635 Metric 4 Flute Endmill - Carbide VHM Ultra - TiAlN - Regular - HA. Key details for this option: neck diameter 2.8mm, overall length 57mm, reach length 19mm.

4 Flute Endmill R35/38 Regular Tecline

The Sutton E635 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with a TiAlN coating. It is in the regular length series. This listing covers 9 metric sizes from 3 mm to 20 mm.

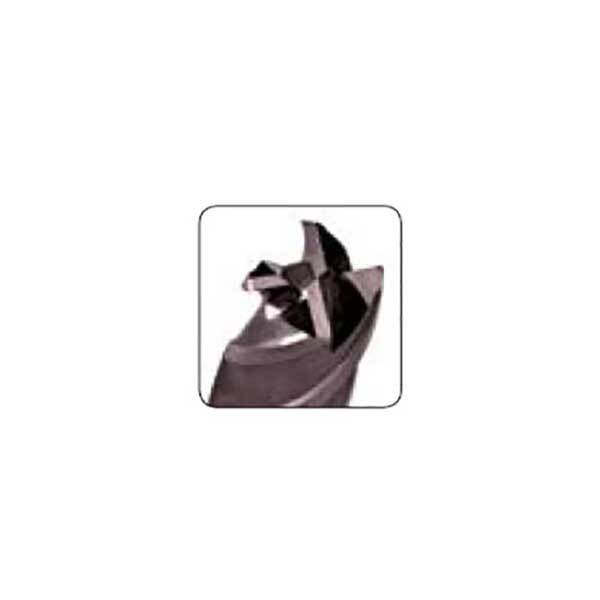

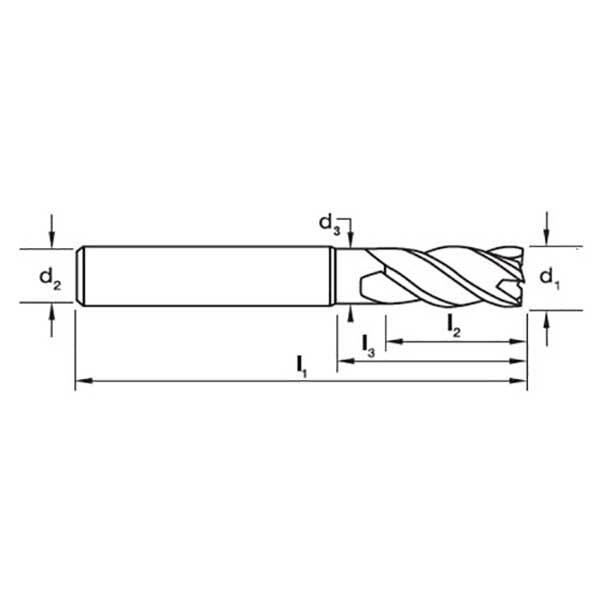

The cutting edge has a 35/38° variable helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
