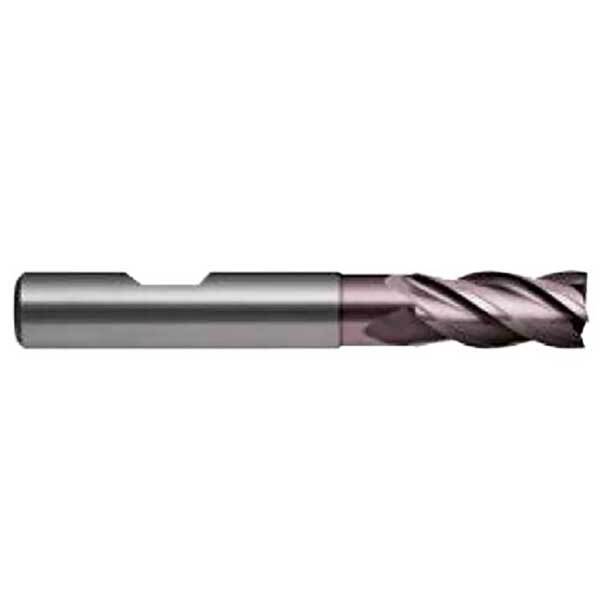

Sutton E636 16mm Endmill 4 Flute - Carbide VHM Ultra - TiAlN - Regular
Available
The Sutton E636 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with a TiAlN coating. It is in the regular length series. This listing covers 2 metric sizes from 16 mm to 20 mm.

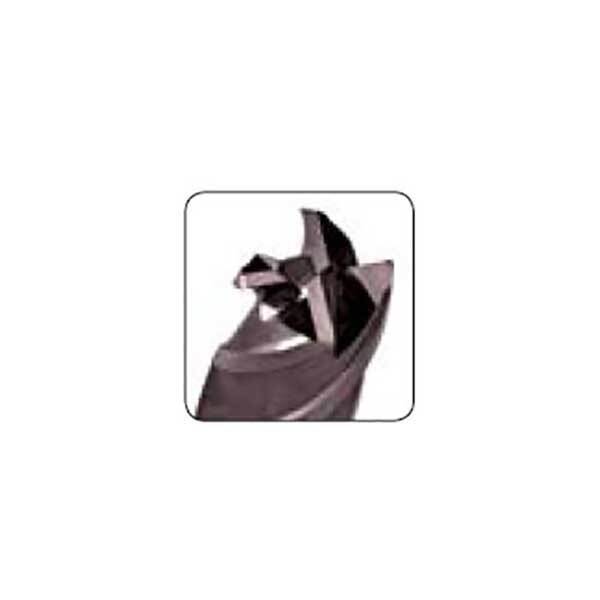

The cutting edge has a 35/38° variable helix and the designation is N. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Milling slots, cavities and profiles on manual and CNC milling machines.
- Materials up to 1600 N/mm2.
Design features
- VHM-ULTRA grade solid carbide construction.
- TiAlN coating for longer tool life.
- 4 flutes, 35/38° variable helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: shank h6.
Sizes

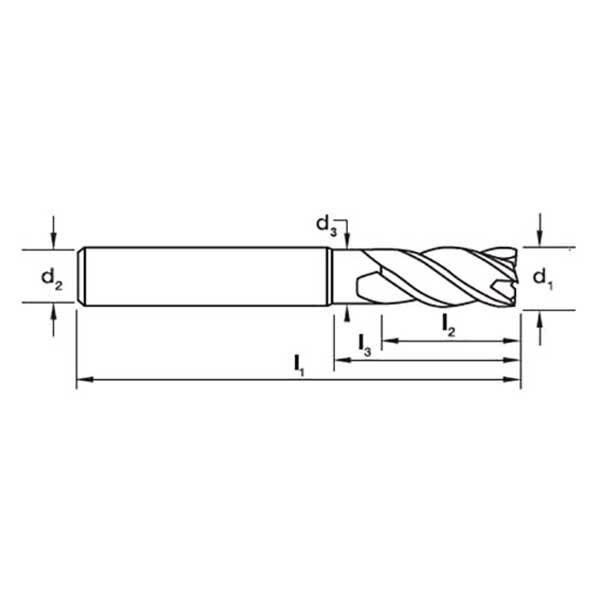

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E636 1600 | 16 | 92 | 32 | 44 | 16 | 15 | 4 |
| E636 2000 | 20 | 104 | 38 | 54 | 20 | 19 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E636 |
| Type | Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | TiAlN |
| Helix / geometry | R35/38 |
| Designation | N |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 2 sizes, 16 to 20 mm |
