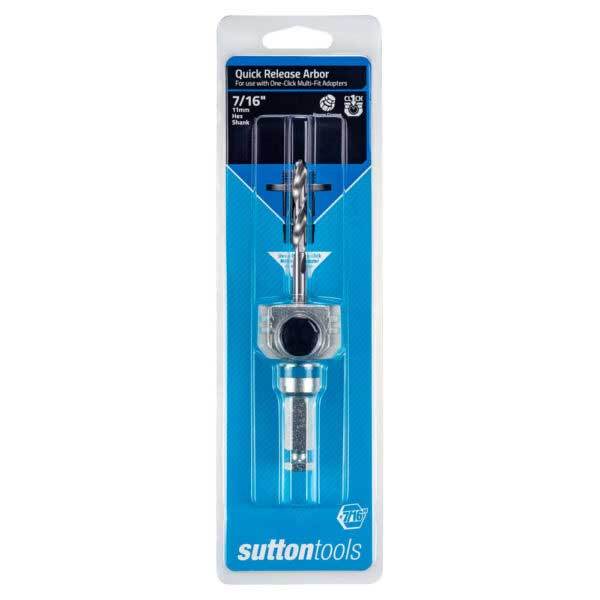

Sutton H1224311 Quick Release Holesaw Arbor - 7/16in Hex - 105mm HSS Pilot
Available
The Sutton H122 4311 (H1224311) is the quick release arbor of the H122 system, with a 7/16 in (11.1 mm) hex shank and a 105 mm HSS pilot drill. It takes One-Click adaptors in 1/2 in UNF or 5/8 in UNF, so one arbor fits holesaws from 14 to 210 mm.
The push button is designed for quick release and change of holesaws. Swapping a holesaw takes one click, and the plug ejects with one click. The arbor suits a 13 mm chuck, and the One-Click adaptors are sold separately or in the H122 0111 starter kit.
Where this product is used
- Changing holesaws quickly on jobs that need several sizes.
- Electrical, plumbing, automotive, metalworking and maintenance work, in trade and DIY use.
Using the product
- Fit the One-Click adaptor that matches the holesaw thread (1/2 in UNF for 14 to 30 mm, 5/8 in UNF for 32 mm and up).
- Press the button to release the holesaw and the adaptor clicks into place.
- Check the chuck is tight before starting the cut, at a low speed with cutting fluid when cutting steel.
Key specifications
| Specification | Detail |
|---|---|
| Item number | H122 4311 (H1224311) |
| Shank | 7/16 in (11.1 mm) hex |
| Chuck size | 13 mm |
| Pilot drill | 105 mm HSS, supplied |
| Adaptors | 1/2 in UNF and 5/8 in UNF One-Click adaptors, sold separately |
| Holesaw range | 14 to 210 mm with the One-Click adaptors |
Related products
The H122 quick release range: H122 0111 starter kit, 6 pieces, H122 quick release pilot drills, H122 8299 adaptor kit, H122 One-Click adaptors and H122 6206 TCT pilot drill. Browse all holesaws and accessories.
