Sutton 1/2" D220H XP Bullet Jobber Drill Bit - HSS
Available
The Sutton D220H XP Bullet is a jobber drill made from European high speed steel, with an Extreme Parabolic (XP) flute, a 118° split point on drills from 3.5 mm and 5/32 in, and a parallel shank. This page covers the Sutton HSS XP Bullet Jobber Drill Bit (Imperial) - D220, available in 29 diameter (inch) options: 1/2, 1/4, 1/8, 1/16, 3/8, 3/16, 3/32, 5/16 and 21 more.
It is suitable for drilling ferrous and non-ferrous metals, wood and plastic, with the XP flute design providing improved chip ejection and faster drilling speeds.
This is the fractional-inch range: 29 sizes from 1/16 to 1/2 in, with flute lengths of 22 to 103 mm and overall lengths of 49 to 157 mm. Each size is shown with its fraction first and its millimetre equivalent. Working to a different size system? The same drill is also listed as a metric range.
Where this product is used
- Ferrous and non-ferrous metals, wood and plastic.
- Applications for the range include: DIY, trade, automotive, electrical, plumbing, carpentry, general contracting, woodworking, metalworking, machine shop and MRO work.
Design features
- Extreme Parabolic (XP) flute: optimised design provides improved chip ejection and faster drilling speeds.
- 118° split point on drills from 3.5 mm and 5/32 in: minimises wandering when starting.
- Parallel shank: precision engineered for accurate hole size.
- Made from European high speed steel.
Sizes and lengths
Diameters, overall lengths and flute lengths are shown below. Lengths are in millimetres.
| Diameter (inch) | Diameter (mm) | Overall length (mm) | Flute length (mm) | Sutton item no. |
|---|---|---|---|---|
| 1/16 | 1.59 | 49 | 22 | D220 H 0159 |
| 5/64 | 1.98 | 52 | 26 | D220 H 0198 |
| 3/32 | 2.38 | 58 | 32 | D220 H 0238 |
| 7/64 | 2.78 | 68 | 35 | D220 H 0278 |
| 1/8 | 3.18 | 72 | 38 | D220 H 0318 |
| 9/64 | 3.57 | 75 | 41 | D220 H 0357 |

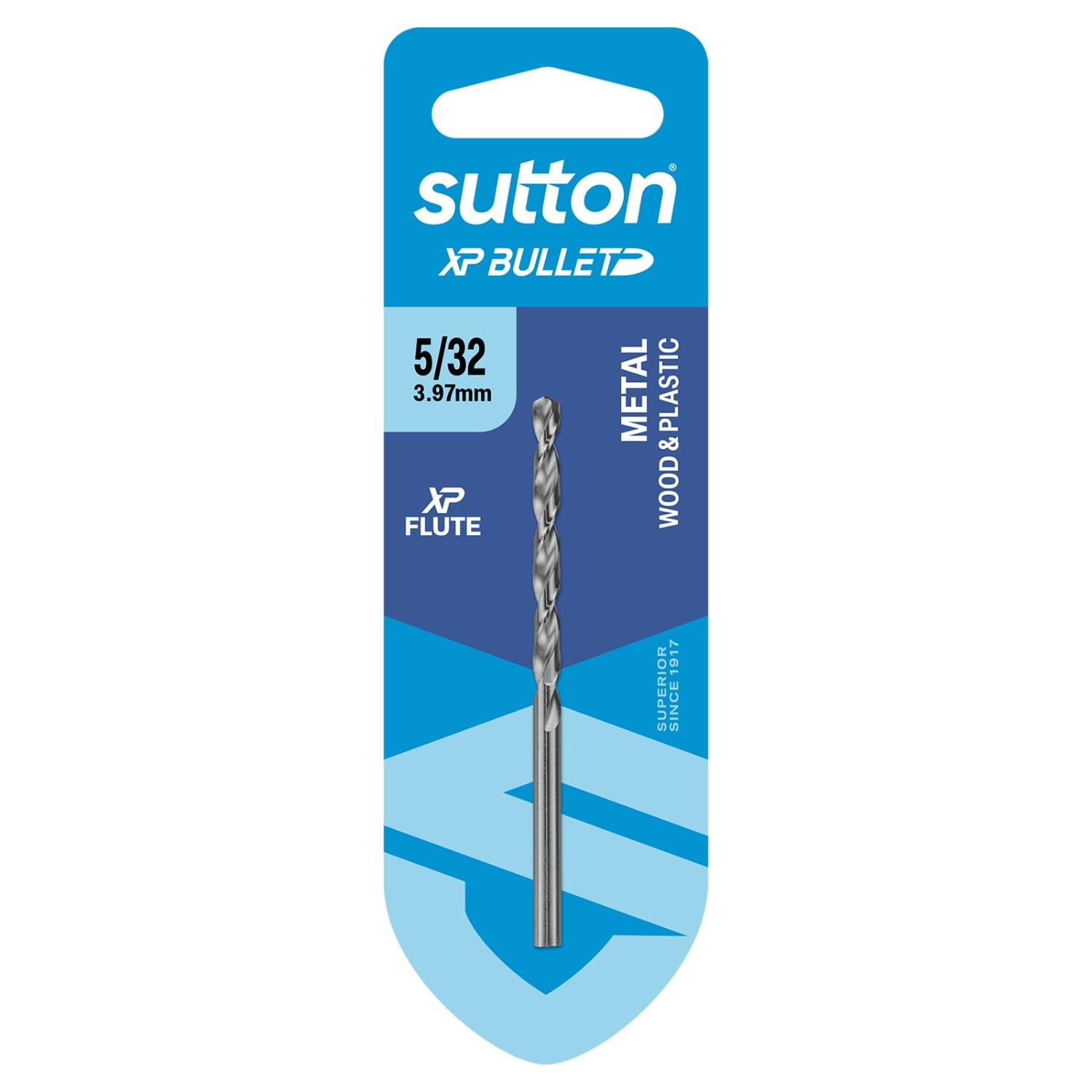

| 5/32 | 3.97 | 81 | 45 | D220 H 0397 |
| 11/64 | 4.37 | 85 | 49 | D220 H 0437 |
| 3/16 | 4.76 | 90 | 54 | D220 H 0476 |

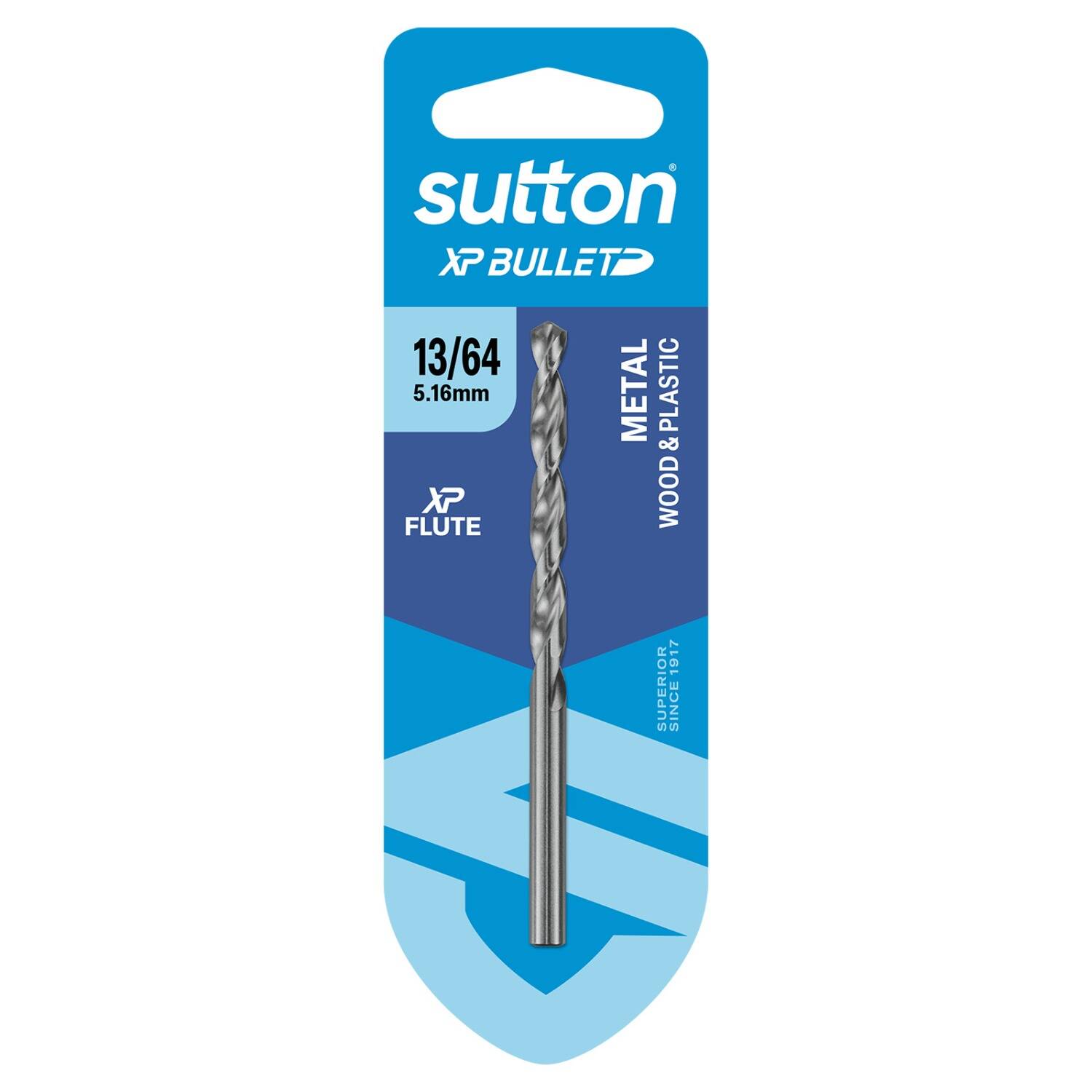

| 13/64 | 5.16 | 95 | 54 | D220 H 0516 |
| 7/32 | 5.56 | 98 | 59 | D220 H 0556 |

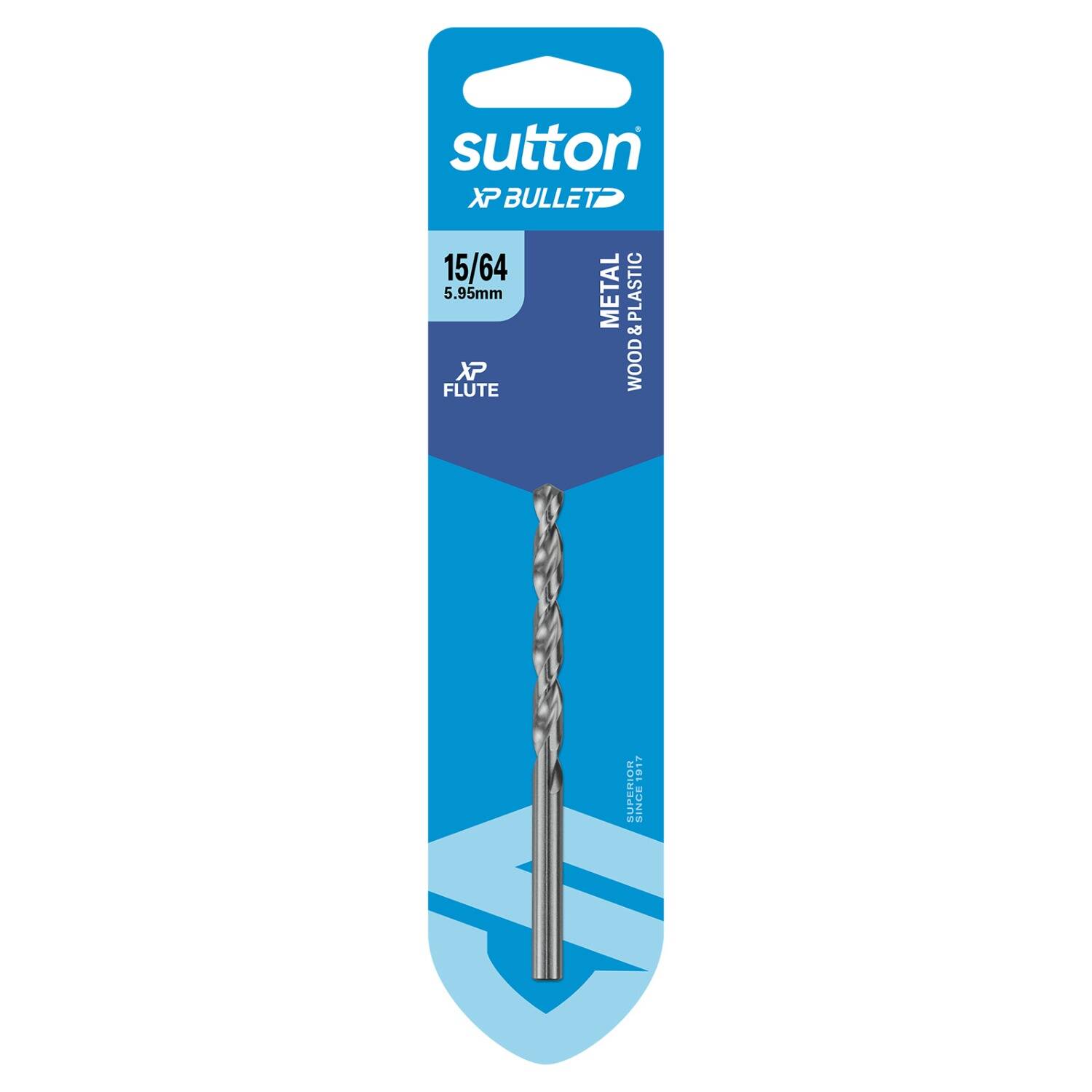

| 15/64 | 5.95 | 101 | 59 | D220 H 0595 |
| 1/4 | 6.35 | 105 | 65 | D220 H 0635 |
| 17/64 | 6.75 | 108 | 71 | D220 H 0676 |
| 9/32 | 7.14 | 111 | 71 | D220 H 0714 |
| 19/64 | 7.54 | 114 | 77 | D220 H 0754 |
| 5/16 | 7.94 | 117 | 77 | D220 H 0794 |

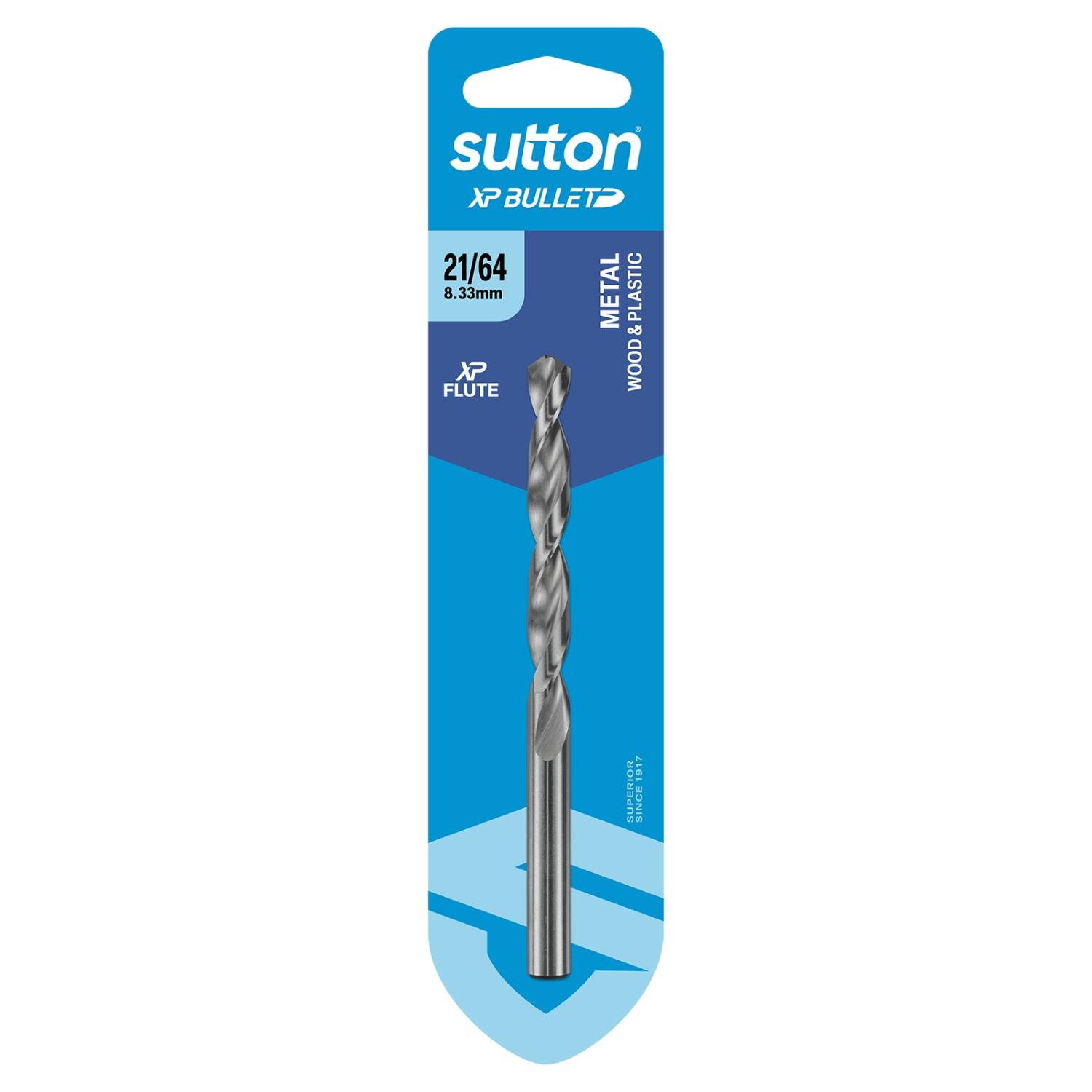

| 21/64 | 8.33 | 121 | 77 | D220 H 0833 |

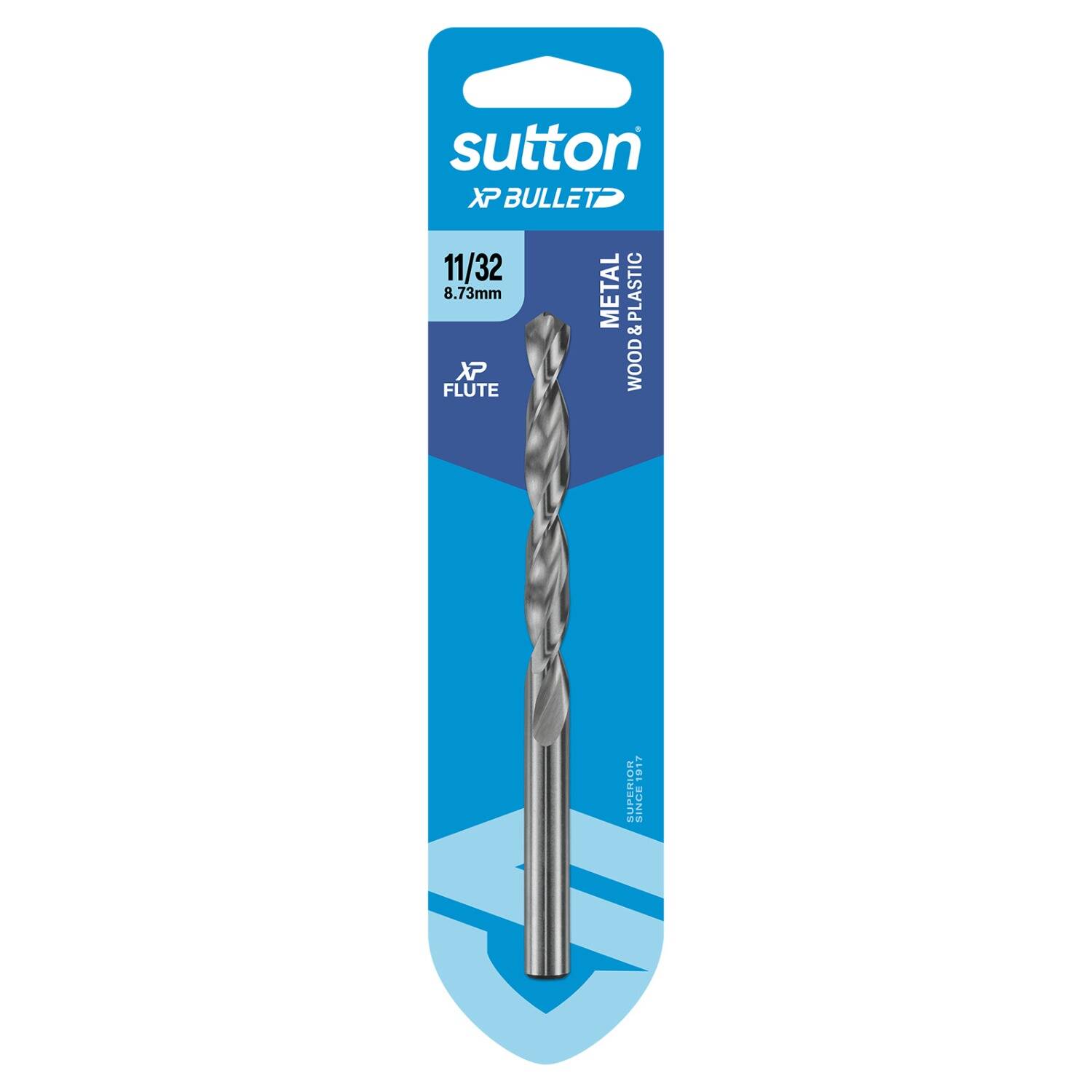

| 11/32 | 8.73 | 125 | 83 | D220 H 0873 |
| 23/64 | 9.13 | 128 | 83 | D220 H 0913 |
| 3/8 | 9.52 | 131 | 89 | D220 H 0953 |
| 25/64 | 9.92 | 134 | 89 | D220 H 0992 |
| 13/32 | 10.32 | 137 | 89 | D220 H 1032 |
| 27/64 | 10.72 | 141 | 96 | D220 H 1072 |

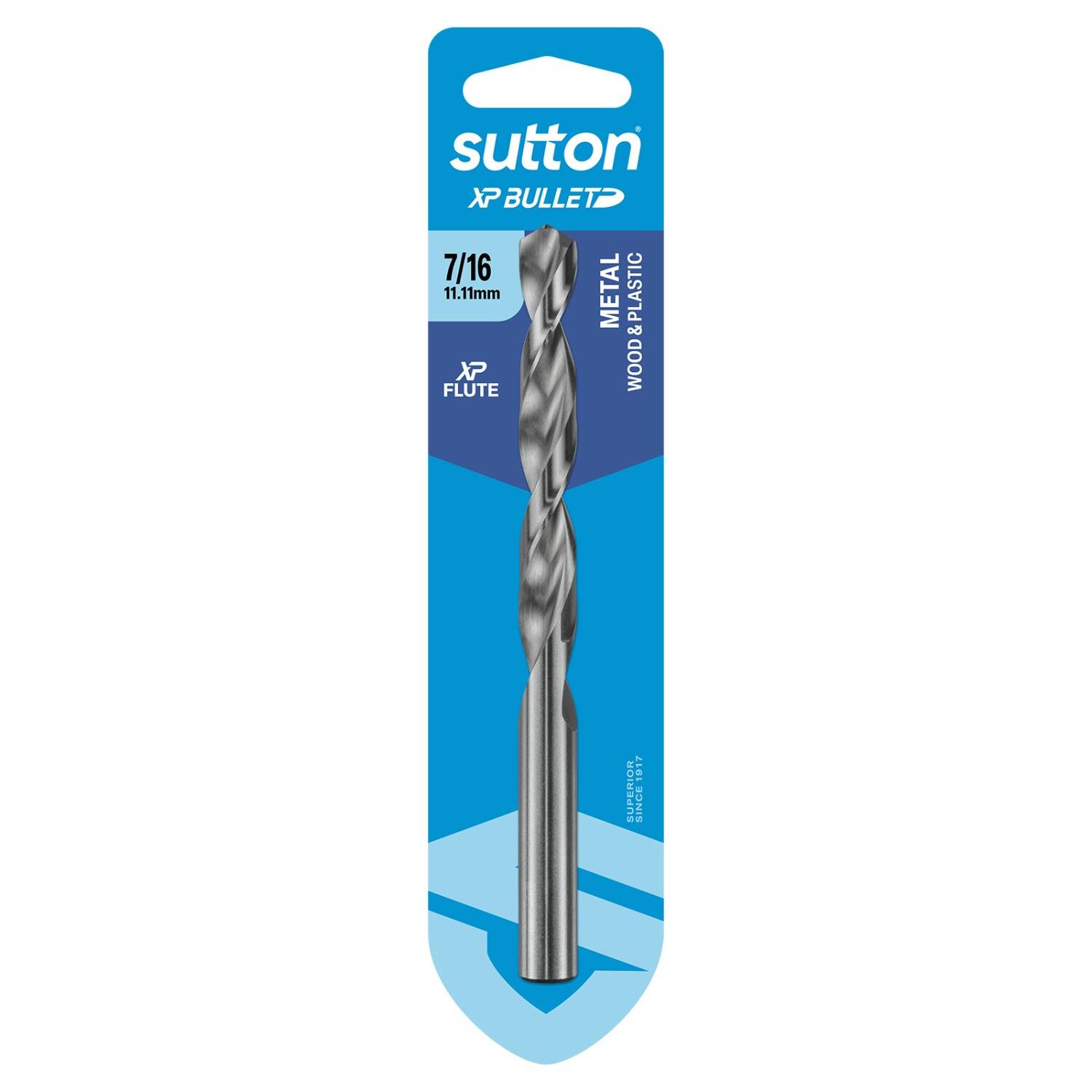

| 7/16 | 11.11 | 144 | 96 | D220 H 1111 |
| 29/64 | 11.51 | 147 | 96 | D220 H 1151 |
| 15/32 | 11.91 | 151 | 103 | D220 H 1191 |
| 31/64 | 12.3 | 154 | 103 | D220 H 1231 |

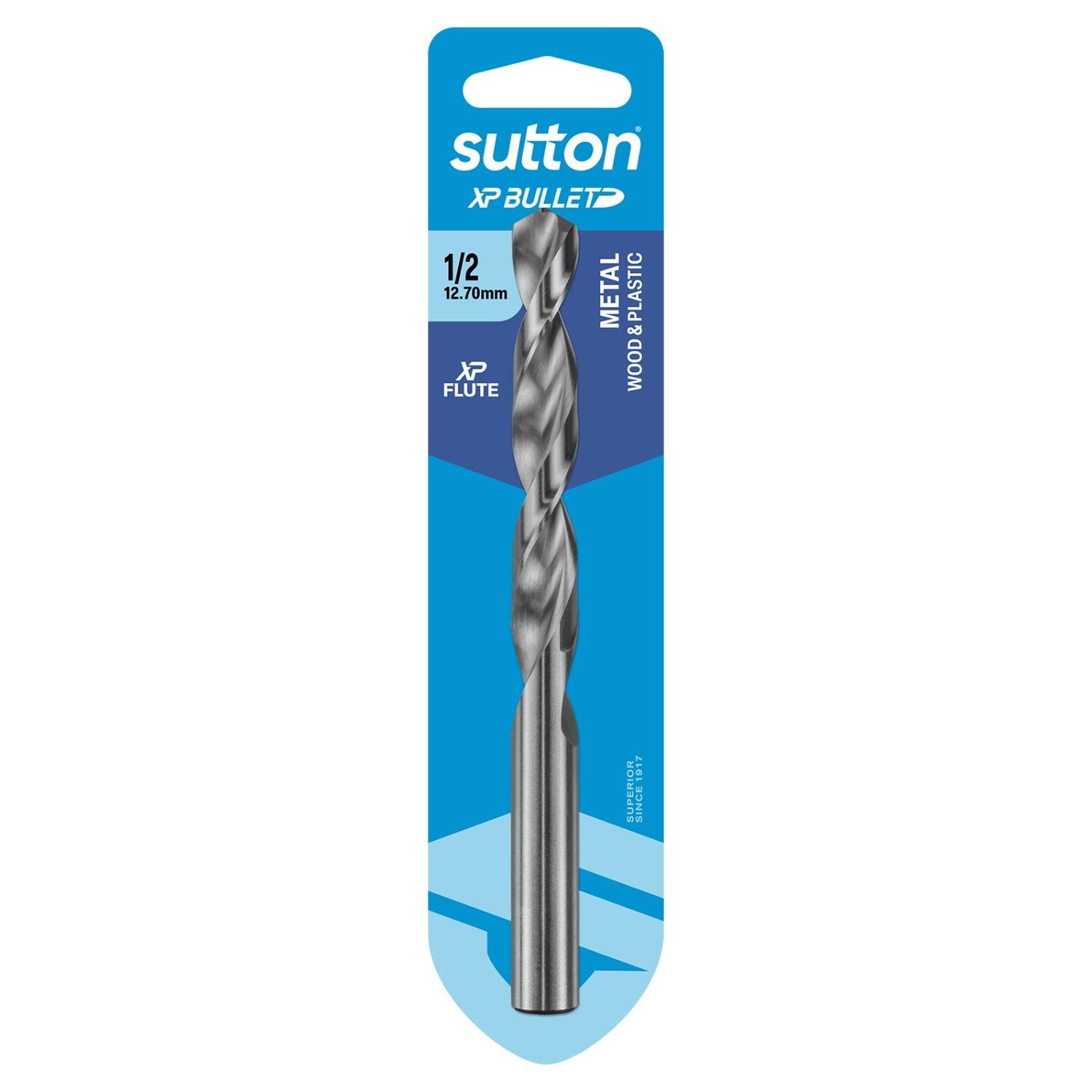

| 1/2 | 12.7 | 157 | 103 | D220 H 1269 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D220H |
| Range name | XP Bullet |
| Type | Jobber Drill |
| Material | European high speed steel |
| Point | 118° split point on drills from 3.5 mm and 5/32 in |
| Sizes in this range | 29 sizes, 1/16-1/2 in |
Related drilling products
Compare other Sutton drills: D220 XP Bullet metric, D102 Blue Bullet, D101 Silver Bullet and D179 Viper Plus. Sets are in the Metric Jobber Drill Sets and the Imperial Jobber Drill Sets. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials, and the speeds and feeds chart and cutting tool troubleshooting guide cover speeds and common problems.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton HSS XP Bullet Jobber Drill Bit (Imperial) - D220: 1/2
SKU: A0208357 | Model: D220H1269
Diameter (inch) 1/2. Description
The Sutton D220H XP Bullet is a jobber drill made from European high speed steel, with an Extreme Parabolic (XP) flute, a 118° split point on drills from 3.5 mm and 5/32 in, and a parallel shank.
It is suitable for drilling ferrous and non-ferrous metals, wood and plastic, with the XP flute design providing improved chip ejection and faster drilling speeds. This is the fractional-inch range: 29 sizes from 1/16 to 1/2 in, with flute lengths of 22 to 103 mm and overall lengths of 49 to 157 mm. Each size is shown with its fraction first and its millimetre equivalent. Working to a different size system? The same drill is also listed as a <a href="/products/sutton-hss-xp-bullet-jobber-drill-bit-metric-d220">metric range</a>.
