Sutton T128 Metric Spiral Point Tap - Premium HSS 1

Sutton T128 Metric Spiral Point Tap - Premium HSS 2

Sutton T1280300 Metric M3 x 0.5 Spiral Point Tap - HSSE V3

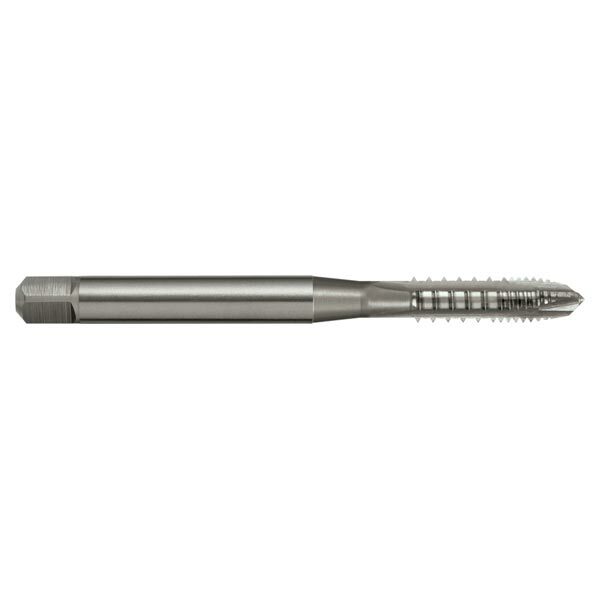

Sutton T1280400 Metric M4 x 0.7 Spiral Point Tap - HSSE V3

Sutton T1280500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3

Sutton T1280600 Metric M6 x 1 Spiral Point Tap - HSSE V3

Sutton T1280800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3

Sutton T1281000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3

Description +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T128 Metric Spiral Point Tap - Premium HSS

SKU: A0013004

$45.90

Inc. GST

Buy It Now

Available

The Sutton T128 Metric Spiral Point Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3) and meets DIN371. It offers a Drill Size of 8.5 (drill) and is for Bronze (CuSn).

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
