Sutton T129 M12 x 1.75 Spiral Point Tap W-AZ - HSSE - Bright - DIN 376
Available

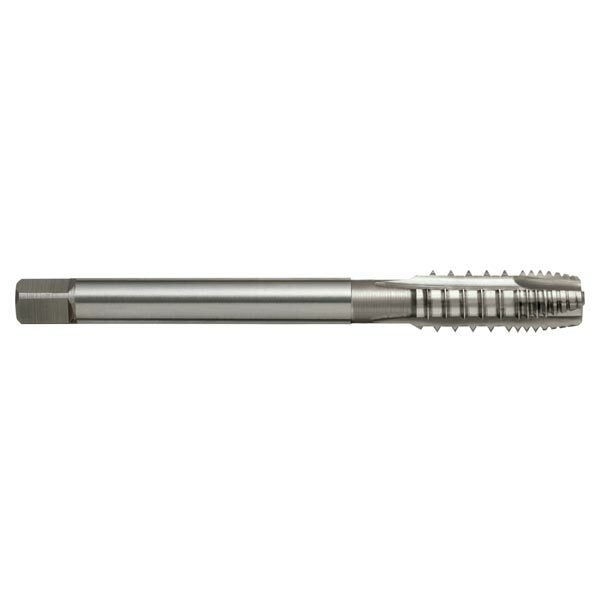

The Sutton T129 is a spiral point (gun) tap (W designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 3 sizes from M12 x 1.75 to M16 x 2.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The W designation is for soft materials, with a very high rake angle and low thread relief for good chip flow. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 376: reduced shank with square drive.
Where this product is used
- Use in soft elastic materials.
- Through holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 flutes.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The W designation is for soft materials, with a very high rake angle and low thread relief for good chip flow.
- DIN 376 construction, reduced shank with square drive.
Sizes

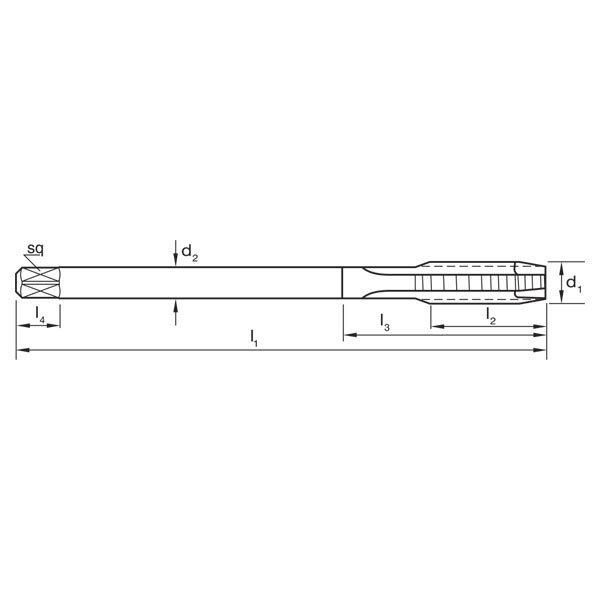

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T129 1200 | M12 x 1.75 | 1.75 | 10.2 | 110 | 28 | 9 | 7 | 10 | 3 |
| T129 1400 | M14 x 2 | 2 | 12 | 110 | 30 | 11 | 9 | 12 | 3 |
| T129 1600 | M16 x 2 | 2 | 14 | 110 | 32 | 12 | 9 | 12 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T129 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | W - AZ |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 376 |
| Flutes | 3 |
| Sizes in this listing | 3 sizes, M12 x 1.75 to M16 x 2 |
