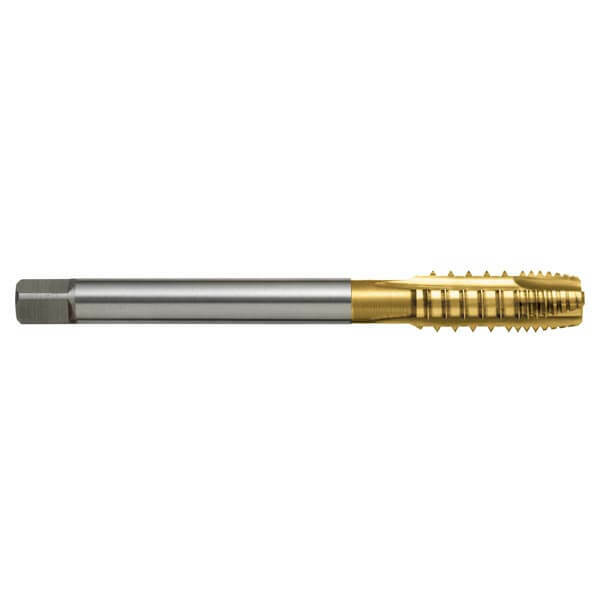

Sutton T131 Metric Spiral Point Tap - Premium HSS Tinite1

Sutton T131 Metric Spiral Point Tap - Premium HSS Tinite2

Sutton T1311200 Metric M12 x 1.75 Spiral Point Tap - HSSE V3 TiN

Sutton T1311400 Metric M14 x 2 Spiral Point Tap - HSSE V3 TiN

Sutton T1311600 Metric M16 x 2 Spiral Point Tap - HSSE V3 TiN

Specifications +

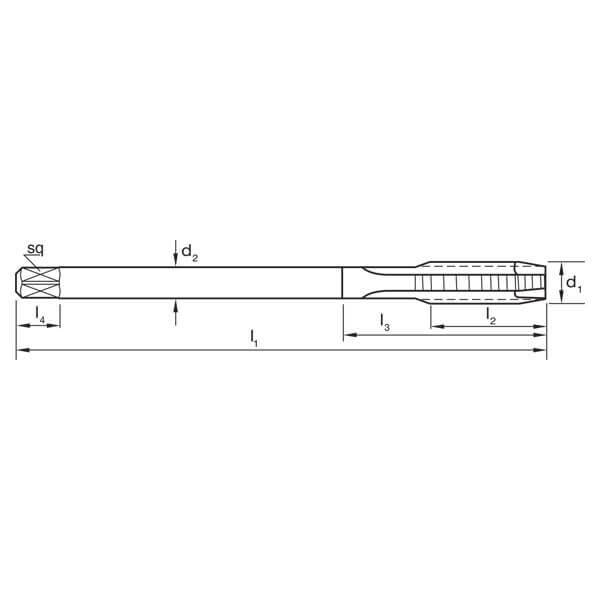

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (Pitch)

Specifications

Designation: W (for Soft Materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reduced Shak (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T131 Metric Spiral Point Tap - Premium HSS Tinite

SKU: A0013019

Type: Spiral Flute Tap

$111.47

$111.47 ~~$159.25~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton Metric Spiral Point

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (Pitch)

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Specifications

Designation: W (for Soft Materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reduced Shak (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (Pitch)

Specifications

Designation: W (for Soft Materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reduced Shak (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1
