Sutton T134 Metric Coarse Spiral Point Tap NH - PM-HSSE V3 - Steam Oxide - DIN 371
Available

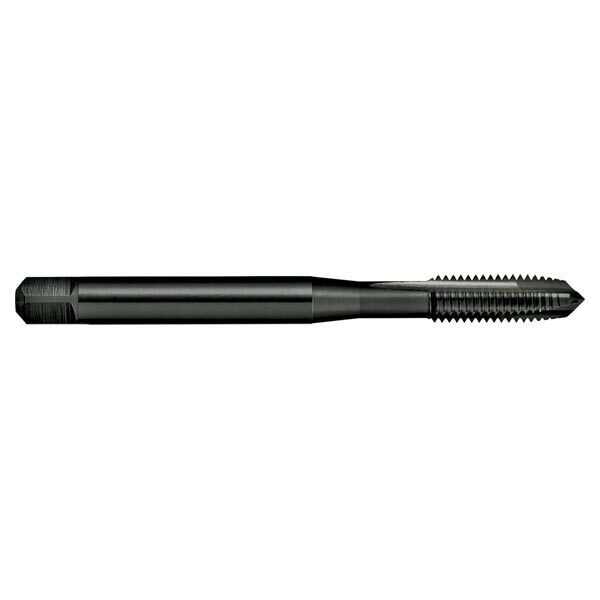

The Sutton T134 is a spiral point (gun) tap (NH designation, internal coolant) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a blue steam-oxide finish. This listing covers one size: M6 x 1.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 371: reinforced shank with square drive. The internal coolant duct (IK) delivers coolant through the tap to the cutting zone.
Where this product is used
- Suitable for harder short chipping materials up to 42 HRC.
- Through holes.
- Depths up to 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 flutes.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- DIN 371 construction, reinforced shank with square drive.
Sizes

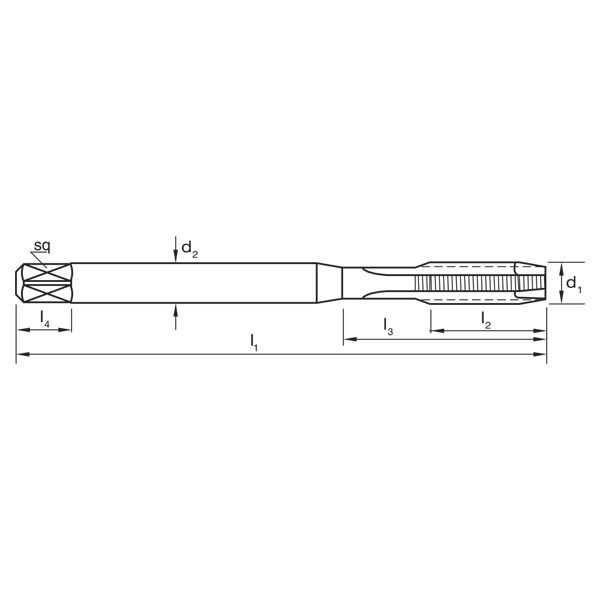

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T134 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T134 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | Steam Oxide |
| Designation | NH |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | M6 x 1 |
