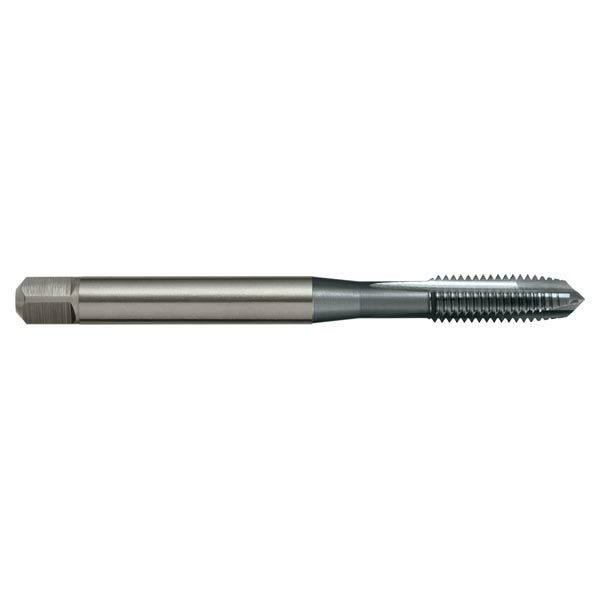

Sutton T1460600 Metric M6 x 1 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1460800 Metric M8 x 1.25 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1461000 Metric M10 x 1.5 Spiral Point Tap - Cobalt Steel TiCN
Sutton T146 Metric Spiral Point Tap - Cobalt Steel TiCN1
Sutton T146 Metric Spiral Point Tap - Cobalt Steel TiCN2
Sutton T1460300 Metric M3 x 0.5 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1460400 Metric M4 x 0.7 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1460500 Metric M5 x 0.8 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1460600 Metric M6 x 1 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1460800 Metric M8 x 1.25 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1461000 Metric M10 x 1.5 Spiral Point Tap - Cobalt Steel TiCN

Sutton T146 Metric Spiral Point Tap - Cobalt Steel TiCN

Sutton T146 Metric Spiral Point Tap - Cobalt Steel TiCN

SKU: A0013063

$63.27
$63.27
Inc. GST
Buy It Now

Available

The Sutton T146 Metric Spiral Point Tap by Sutton Tools is a 0 with Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides M10 thread and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
  • Cast Iron, Malleable – Ferritic/Pearlitic
  • Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
  • Titanium & Titanium alloys - Alpha alloys
  • Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
  • Titanium & Titanium alloys - Alpha / Beta alloys:  Age Hardened
  • Hardened steel: Hardened & Tempered
  • Cast Iron - Chilled: Cast

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
  • Cast Iron, Malleable – Ferritic/Pearlitic
  • Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
  • Titanium & Titanium alloys - Alpha alloys
  • Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
  • Titanium & Titanium alloys - Alpha / Beta alloys:  Age Hardened
  • Hardened steel: Hardened & Tempered
  • Cast Iron - Chilled: Cast

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1
