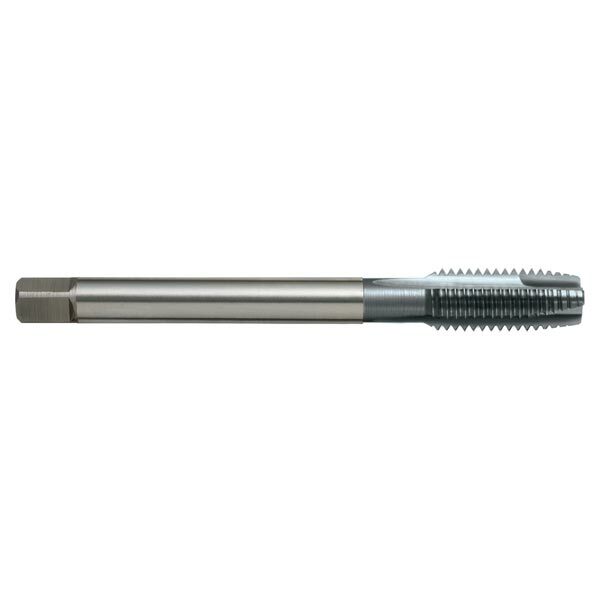

Sutton T1471400 Metric M14 x 2 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1471600 Metric M16 x 2 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1471800 Metric M18 x 2.5 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1472000 Metric M20 x 2.5 Spiral Point Tap - Cobalt Steel TiCN
Sutton T147 Metric Spiral Point Tap - Cobalt Steel TiCN1
Sutton T147 Metric Spiral Point Tap - Cobalt Steel TiCN2
Sutton T1471200 Metric M12 x 1.75 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1471400 Metric M14 x 2 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1471600 Metric M16 x 2 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1471800 Metric M18 x 2.5 Spiral Point Tap - Cobalt Steel TiCN
Sutton T1472000 Metric M20 x 2.5 Spiral Point Tap - Cobalt Steel TiCN
Save 30%

Sutton T147 Metric Spiral Point Tap - Cobalt Steel TiCN

Sutton T147 Metric Spiral Point Tap - Cobalt Steel TiCN

SKU: A0013069

Type: Spiral Flute Tap

$102.17
$102.17 $145.96
Inc. GST
⚙Cobalt HSS Construction
⚙Sutton Metric Spiral Point
📐Multiple Sizes Available
🔩Precise Thread Cutting
🏗Metalworking & Manufacturing
☑High Speed Operation Rated

Available

Product Highlights −

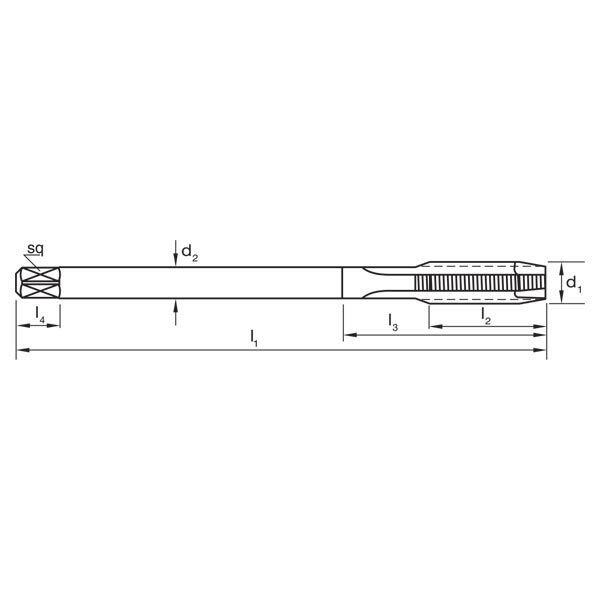

Dimensions

  • d1: M12
  • d2 (mm): 9
  • l1 (mm): 110
  • l2 (mm): 28
  • l4 (mm): 10
  • Square Size (mm): 7
  • z: 3
  • Drill Size (mm): 10.2 (drill)
  • Pitch (mm): 1.75 (pitch)

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
  • Cast Iron, Malleable – Ferritic/Pearlitic
  • Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
  • Titanium & Titanium alloys - Alpha alloys
  • Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
  • Titanium & Titanium alloys - Alpha / Beta alloys:  Age Hardened
  • Hardened steel: Hardened & Tempered
  • Cast Iron - Chilled: Cast

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M12
  • d2 (mm): 9
  • l1 (mm): 110
  • l2 (mm): 28
  • l4 (mm): 10
  • Square Size (mm): 7
  • z: 3
  • Drill Size (mm): 10.2 (drill)
  • Pitch (mm): 1.75 (pitch)

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
  • Cast Iron, Malleable – Ferritic/Pearlitic
  • Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
  • Titanium & Titanium alloys - Alpha alloys
  • Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
  • Titanium & Titanium alloys - Alpha / Beta alloys:  Age Hardened
  • Hardened steel: Hardened & Tempered
  • Cast Iron - Chilled: Cast

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1
