Sutton T149 Metric Spiral Point Tap - Cobalt Steel TiCN1

Sutton T149 Metric Spiral Point Tap - Cobalt Steel TiCN2

Sutton T1491200 Metric M12 x 1.75 Spiral Point Tap - Cobalt Steel TiCN

Sutton T1491400 Metric M14 x 2 Spiral Point Tap - Cobalt Steel TiCN

Sutton T1491600 Metric M16 x 2 Spiral Point Tap - Cobalt Steel TiCN

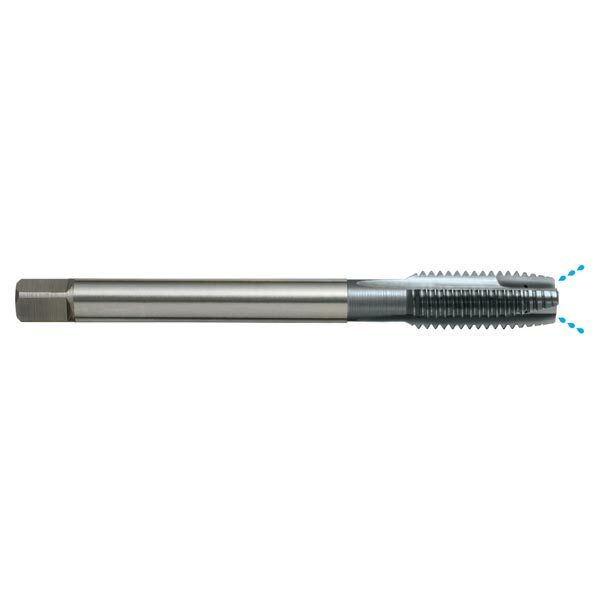

Sutton T1491800 Metric M18 x 2.5 Spiral Point Tap - Cobalt Steel TiCN

Sutton T1492000 Metric M20 x 2.5 Spiral Point Tap - Cobalt Steel TiCN

Description +

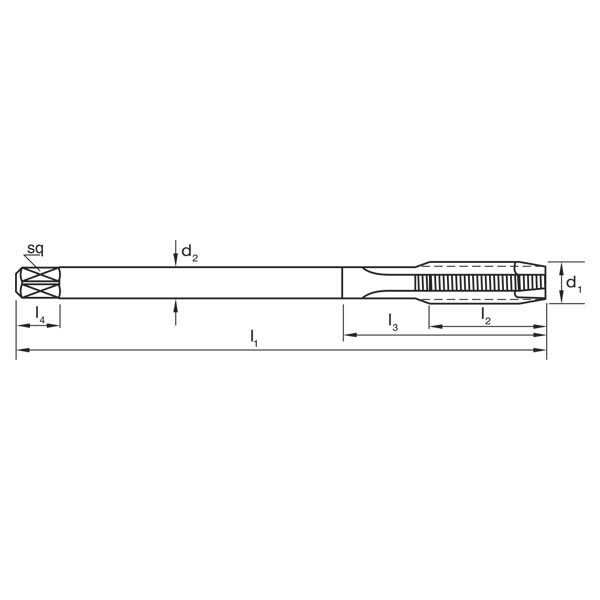

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Suitable for harder short chipping materials up to 45 HRc
Through holes
Depths up to 3 x d1

Specifications

Designation: H (for hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
Cast Iron, Malleable – Ferritic/Pearlitic
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
Hardened steel: Hardened & Tempered
Cast Iron - Chilled: Cast

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: H (for hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
Cast Iron, Malleable – Ferritic/Pearlitic
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
Hardened steel: Hardened & Tempered
Cast Iron - Chilled: Cast

Features & Benefits +

Features

Suitable for harder short chipping materials up to 45 HRc
Through holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T149 Metric Spiral Point Tap - Cobalt Steel TiCN

SKU: A0013077

$351.49

Inc. GST

Buy It Now

Available

The Sutton T149 Metric Spiral Point Tap by Sutton Tools is a 0 with TiCN finish. It offers M12 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY
