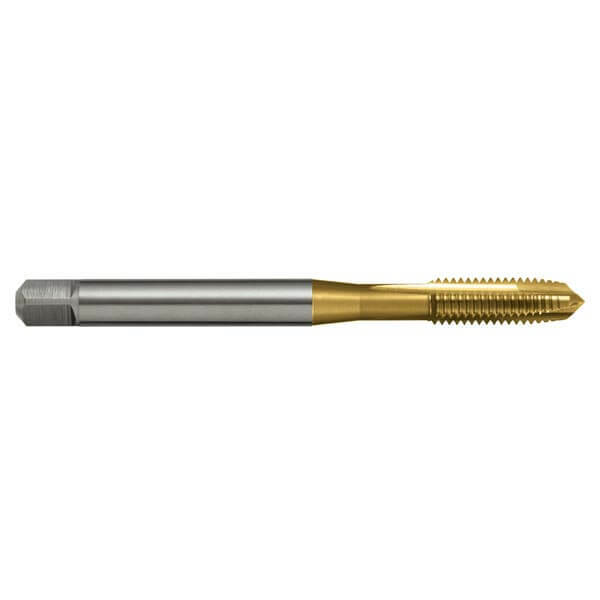

Sutton T167 1/4 x 20 TPI Spiral Point Tap - HSSE - TiN - DIN 2184-1
Available
The Sutton T167 is a spiral point (gun) tap (N designation) for UNC threads, made from premium grade high speed steel (HSSE) with a gold titanium nitride (TiN) coating. This listing covers 18 sizes from #2 x 56 TPI to 1 x 8 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 2B. The tap is built to DIN 2184-1.
Where this product is used
- General purpose use, materials up to approx. 1000 N/mm2.
- Through holes.
- Suitable for machine operations.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Gold titanium nitride (TiN) coating for 3 to 8 times longer tool life than uncoated tools, with higher speeds and feeds.
- 2 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance 2B.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- DIN 2184-1 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

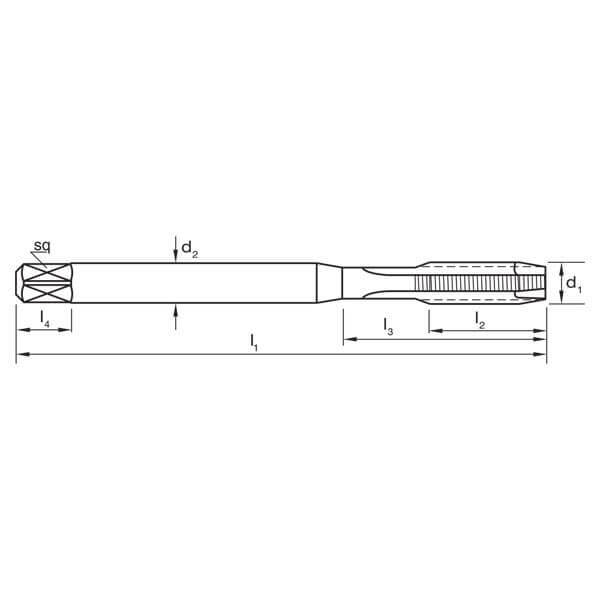

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T167 0218 | #2 x 56 TPI | 56 | 1.85 | 45 | 9 | 10 | 2.8 | 2.1 | 5 | 2 |
| T167 0251 | #3 x 48 TPI | 48 | 2.1 | 50 | 9 | 10 | 2.8 | 2.1 | 5 | 2 |
| T167 0284 | #4 x 40 TPI | 40 | 2.3 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 2 |
| T167 0318 | #5 x 40 TPI | 40 | 2.6 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 3 |
| T167 0351 | #6 x 32 TPI | 32 | 2.8 | 56 | 13 | 19 | 4 | 3 | 6 | 3 |
| T167 0417 | #8 x 32 TPI | 32 | 3.4 | 63 | 13 | 19 | 4.5 | 3.4 | 6 | 3 |
| T167 0483 | #10 x 24 TPI | 24 | 3.8 | 70 | 16 | 20 | 6 | 4.9 | 8 | 3 |
| T167 0549 | #12 x 24 TPI | 24 | 4.5 | 80 | 19 | 29 | 6 | 4.9 | 8 | 3 |
| T167 0635 | 1/4 x 20 TPI | 20 | 5.1 | 80 | 19 | 30 | 7 | 5.5 | 8 | 3 |
| T167 0794 | 5/16 x 18 TPI | 18 | 6.6 | 90 | 22 | 34 | 8 | 6.2 | 9 | 3 |
| T167 0953 | 3/8 x 16 TPI | 16 | 8 | 100 | 22 | 35 | 10 | 7 | 10 | 3 |
| T167 1111 | 7/16 x 14 TPI | 14 | 9.4 | 100 | 24 | - | 8 | 6.2 | 8 | 3 |
| T167 1270 | 1/2 x 13 TPI | 13 | 10.8 | 110 | 28 | - | 9 | 7 | 10 | 3 |
| T167 1429 | 9/16 x 12 TPI | 12 | 12.2 | 110 | 30 | - | 11 | 9 | 12 | 3 |
| T167 1588 | 5/8 x 11 TPI | 11 | 13.5 | 110 | 32 | - | 12 | 9 | 12 | 3 |
| T167 1905 | 3/4 x 10 TPI | 10 | 16.5 | 125 | 34 | - | 14 | 11 | 14 | 4 |
| T167 2223 | 7/8 x 9 TPI | 9 | 19.5 | 140 | 34 | - | 18 | 14.5 | 17 | 4 |
| T167 2540 | 1 x 8 TPI | 8 | 22.2 | 160 | 38 | - | 18 | 14.5 | 17 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T167 |
| Type | Spiral point (gun) tap |
| Thread series | UNC |
| Material | HSSE |
| Finish | TiN |
| Designation | N |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 2B |
| Standard | DIN 2184-1 |
| Flutes | 2 to 4 |
| Sizes in this listing | 18 sizes, #2 x 56 TPI to 1 x 8 TPI |
