Sutton T171 UNC Spiral Point Tap - Premium HSS TiCN1

Sutton T171 UNC Spiral Point Tap - Premium HSS TiCN2

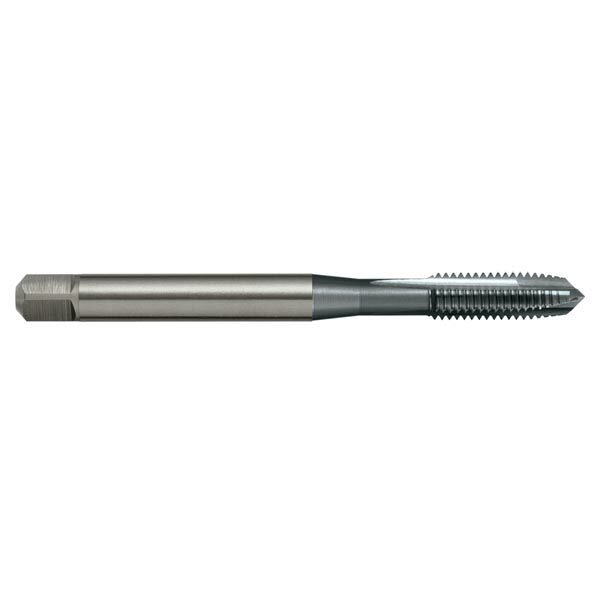

Sutton T1710351 UNC 6 x 32 Spiral Point Tap - HSSE V3 TiCN

Sutton T1710417 UNC 8-32 Spiral Point Tap - HSSE V3 TiCN

Sutton T1710483 UNC 10-24 Spiral Point Tap - HSSE V3 TiCN

Sutton T1710635 UNC 1/4 x 20 Spiral Point Tap - HSSE V3 TiCN

Sutton T1710794 UNC 5/16 x 18 Spiral Point Tap - HSSE V3 TiCN

Sutton T1710953 UNC 3/8 x 16 Spiral Point Tap - HSSE V3 TiCN

Sutton T1711111 UNC 7/16 x 14 Spiral Point Tap - HSSE V3 TiCN

Sutton T1711270 UNC 1/2 x 13 Spiral Point Tap - HSSE V3 TiCN

Sutton T1711588 UNC 5/8 x 11 Spiral Point Tap - HSSE V3 TiCN

Sutton T1711905 UNC 3/4 x 10 Spiral Point Tap - HSSE V3 TiCN

Sutton T1712223 UNC 7/8 x 9 Spiral Point Tap - HSSE V3 TiCN

Sutton T1712540 UNC 1 x 8 Spiral Point Tap - HSSE V3 TiCN

Description +

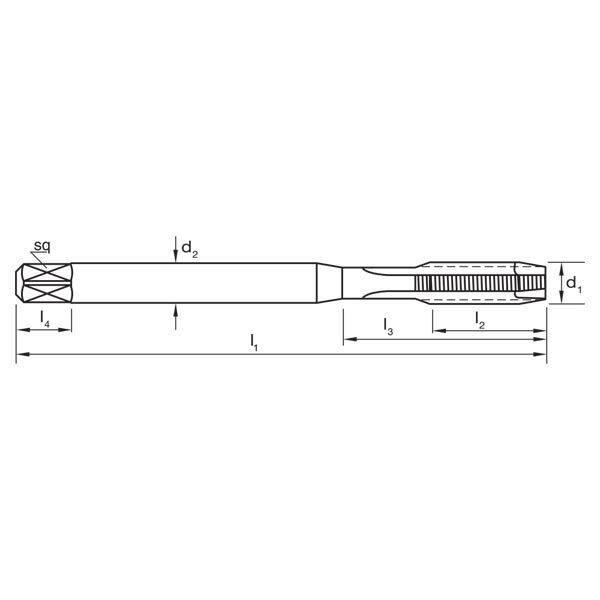

Dimensions

d1 (mm): 3.5052
d2 (mm): 4
l1 (mm): 56
l2 (mm): 13
l3 (mm): 19
l4 (mm): 6
Square Size (mm): 3
z: 3
Drill Size (mm): 2.8 (drill)
TPI: 32 (TPI)

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications +

Dimensions

d1 (mm): 3.5052
d2 (mm): 4
l1 (mm): 56
l2 (mm): 13
l3 (mm): 19
l4 (mm): 6
Square Size (mm): 3
z: 3
Drill Size (mm): 2.8 (drill)
TPI: 32 (TPI)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T171 UNC Spiral Point Tap - Premium HSS TiCN

SKU: A0013348

$337.81

Inc. GST

Buy It Now

Available

The Sutton T171 UNC Spiral Point Tap by Sutton Tools is a 0 with Titanium Carbonitride (TiCN) finish. It provides use in stainless steels and high strength steels up to 1000N/mm2 in through holes and is suitable for Machining.
