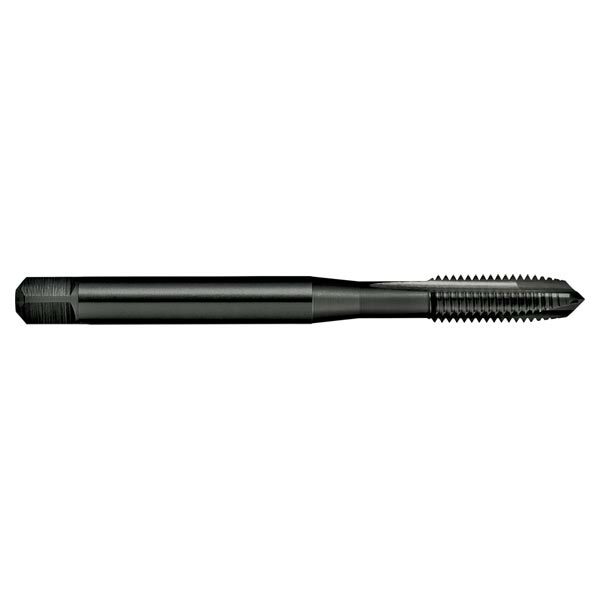

Sutton T1701111 UNC 7/16 x 14 Spiral Point Tap - HSSE V3 Blue
Sutton T1701270 UNC 1/2 x 13 Spiral Point Tap - HSSE V3 Blue
Sutton T1701429 UNC 9/16 x 12 Spiral Point Tap - HSSE V3 Blue
Sutton T1701588 UNC 5/8 x 11 Spiral Point Tap - HSSE V3 Blue
Sutton T1701905 UNC 3/4 x 10 Spiral Point Tap - HSSE V3 Blue
Sutton T1702223 UNC 7/8 x 9 Spiral Point Tap - HSSE V3 Blue
Sutton T1702540 UNC 1-8 Spiral Point Tap - HSSE V3 Blue
Sutton T170 UNC Spiral Point Tap - Premium HSS Blue1
Sutton T170 UNC Spiral Point Tap - Premium HSS Blue2
Sutton T1700351 UNC 6-32 Spiral Point Tap - HSSE V3 Blue
Sutton T1700417 UNC 8-32 Spiral Point Tap - HSSE V3 Blue
Sutton T1700483 UNC 10-24 Spiral Point Tap - HSSE V3 Blue
Sutton T1700635 UNC 1/4 x 20 Spiral Point Tap - HSSE V3 Blue
Sutton T1700794 UNC 5/16 x 18 Spiral Point Tap - HSSE V3 Blue
Sutton T1700953 UNC 3/8 x 16 Spiral Point Tap - HSSE V3 Blue
Sutton T1701111 UNC 7/16 x 14 Spiral Point Tap - HSSE V3 Blue
Sutton T1701270 UNC 1/2 x 13 Spiral Point Tap - HSSE V3 Blue
Sutton T1701429 UNC 9/16 x 12 Spiral Point Tap - HSSE V3 Blue
Sutton T1701588 UNC 5/8 x 11 Spiral Point Tap - HSSE V3 Blue
Sutton T1701905 UNC 3/4 x 10 Spiral Point Tap - HSSE V3 Blue
Sutton T1702223 UNC 7/8 x 9 Spiral Point Tap - HSSE V3 Blue
Sutton T1702540 UNC 1-8 Spiral Point Tap - HSSE V3 Blue

Sutton T170 UNC Spiral Point Tap - Premium HSS Blue

Sutton T170 UNC Spiral Point Tap - Premium HSS Blue

SKU: A0013334

$194.87
$194.87
Inc. GST
Buy It Now

Available

The Sutton T170 UNC Spiral Point Tap by Sutton Tools is a Spiral Point (Gun) made of Premium Grade High Speed Steel (HSSE-V3) designated VA for stainless and tough steels. It offers 14 TPI and is for Machining.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1
