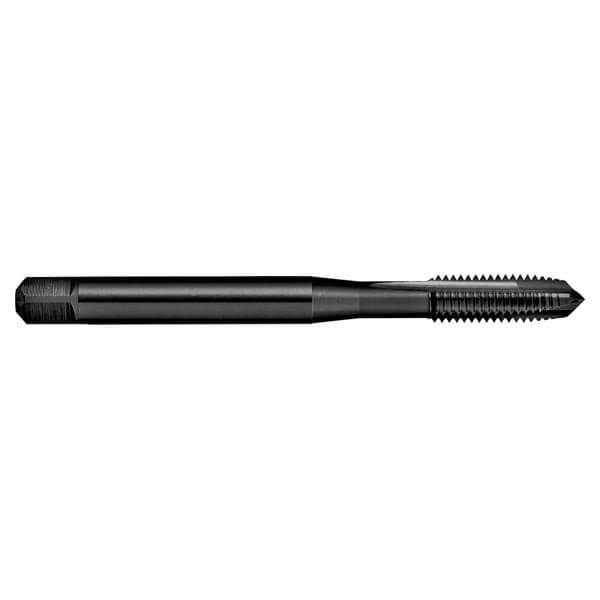

Sutton T1680635 UNC 1/4 x 20 Spiral Point Tap - HSSE V3 Blue
Sutton T1680794 UNC 5/16 x 18 Spiral Point Tap - HSSE V3 Blue
Sutton T1680953 UNC 3/8 x 16 Spiral Point Tap - HSSE V3 Blue
Sutton T1681270 UNC 1/2 x 13 Spiral Point Tap - HSSE V3 Blue
Sutton T1681588 UNC 5/8 x 11 Spiral Point Tap - HSSE V3 Blue
Sutton T1681905 UNC 3/4 x 10 Spiral Point Tap - HSSE V3 Blue
Sutton T1682540 UNC 1-8 Spiral Point Tap - HSSE V3 Blue
Sutton T168 UNC Spiral Point Tap - Vanadium HSS Blue1
Sutton T168 UNC Spiral Point Tap - Vanadium HSS Blue2
Sutton T1680635 UNC 1/4 x 20 Spiral Point Tap - HSSE V3 Blue
Sutton T1680794 UNC 5/16 x 18 Spiral Point Tap - HSSE V3 Blue
Sutton T1680953 UNC 3/8 x 16 Spiral Point Tap - HSSE V3 Blue
Sutton T1681270 UNC 1/2 x 13 Spiral Point Tap - HSSE V3 Blue
Sutton T1681588 UNC 5/8 x 11 Spiral Point Tap - HSSE V3 Blue
Sutton T1681905 UNC 3/4 x 10 Spiral Point Tap - HSSE V3 Blue
Sutton T1682540 UNC 1-8 Spiral Point Tap - HSSE V3 Blue

Sutton T168 UNC Spiral Point Tap - Vanadium HSS Blue

Sutton T168 UNC Spiral Point Tap - Vanadium HSS Blue

SKU: A0013314

$218.86
$218.86
Inc. GST
Buy It Now

Available

The Sutton T168 UNC Spiral Point Tap by Sutton Tools is a 0 made from Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3). It offers 20 TPI and is suitable for steel non-alloy cast and free cutting (~ 0.45 %C) quenched and tempered.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

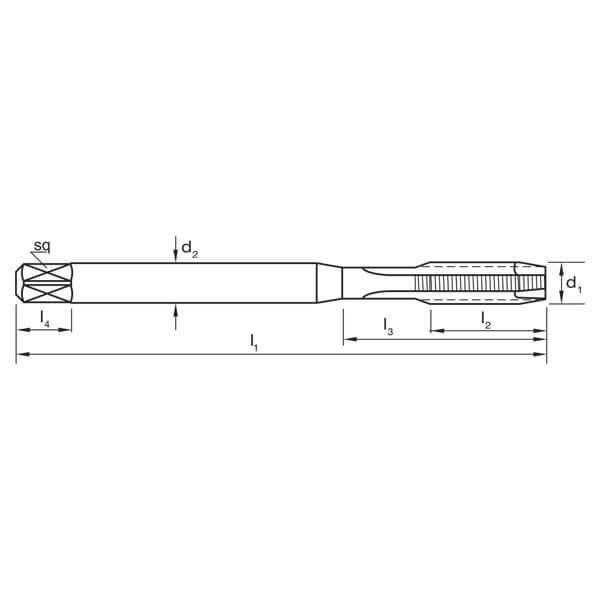

Dimensions

  • d1 (mm): 0.25
  • d2 (mm): 7
  • l1 (mm): 80
  • l2 (mm): 19
  • l3 (mm): 30
  • l4 (mm): 8
  • Square Size (mm): 5.5
  • z: 3
  • Drill Size (mm): 5.1 (drill)
  • TPI: 20 (TPI)

Features

  • Use in harder short chipping materials up to 42 HRc
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: NH
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Dimensions

  • d1 (mm): 0.25
  • d2 (mm): 7
  • l1 (mm): 80
  • l2 (mm): 19
  • l3 (mm): 30
  • l4 (mm): 8
  • Square Size (mm): 5.5
  • z: 3
  • Drill Size (mm): 5.1 (drill)
  • TPI: 20 (TPI)

Specifications

  • Designation: NH
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features

  • Use in harder short chipping materials up to 42 HRc
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1
