Sutton T178 G-BSPF Spiral Point Tap - Premium HSS 1

Sutton T178 G-BSPF Spiral Point Tap - Premium HSS 2

Sutton T1780973 G-BSPF G 1/8 x 28 Spiral Point Tap - HSSE V3

Sutton T1781316 G-BSPF G 1/4 x 19 Spiral Point Tap - HSSE V3

Sutton T1781666 G-BSPF G 3/8 x 19 Spiral Point Tap - HSSE V3

Sutton T1782096 G-BSPF G 1/2 x 14 Spiral Point Tap - HSSE V3

Sutton T1782291 G-BSPF G 5/8 x 14 Spiral Point Tap - HSSE V3

Sutton T1782644 G-BSPF G 3/4 x 14 Spiral Point Tap - HSSE V3

Sutton T1783020 G-BSPF G 7/8 x 14 Spiral Point Tap - HSSE V3

Sutton T1783325 G-BSPF G 1 x 11 Spiral Point Tap - HSSE V3

Description +

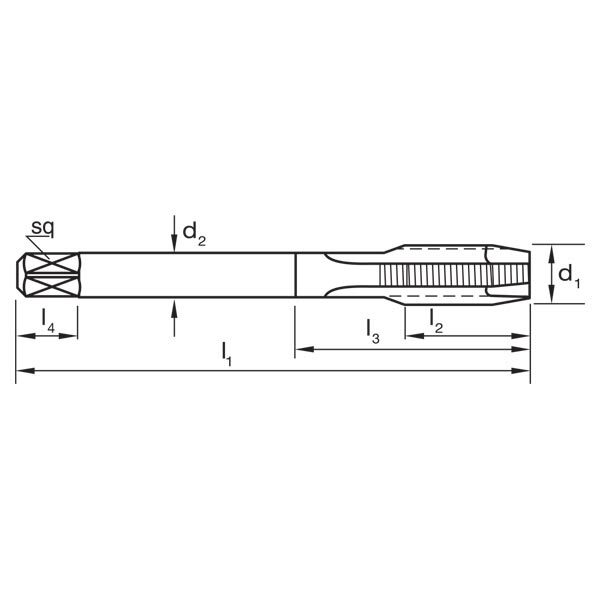

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Features

General Purpose use in materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications +

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General Purpose use in materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T178 G-BSPF Spiral Point Tap - Premium HSS

SKU: A0013419

Type: Sprial Point Tap

$155.52

Inc. GST

Buy It Now

Available

The Sutton T178 G-BSPF Spiral Point Tap by Sutton Tools is a Sprial Point Tap made of Premium Grade High Speed Steel (HSSE-V3). It provides 125 mm l1 and is suitable for Aluminium & Magnesium, wrought alloy - Heat Treatable: Age Hardened.
