Sutton T181 G-BSPF Spiral Point Tap - Premium HSS Blue1

Sutton T181 G-BSPF Spiral Point Tap - Premium HSS Blue2

Sutton T1810973 G-BSPF G 1/8 x 28 Spiral Point Tap - HSSE V3 Blue

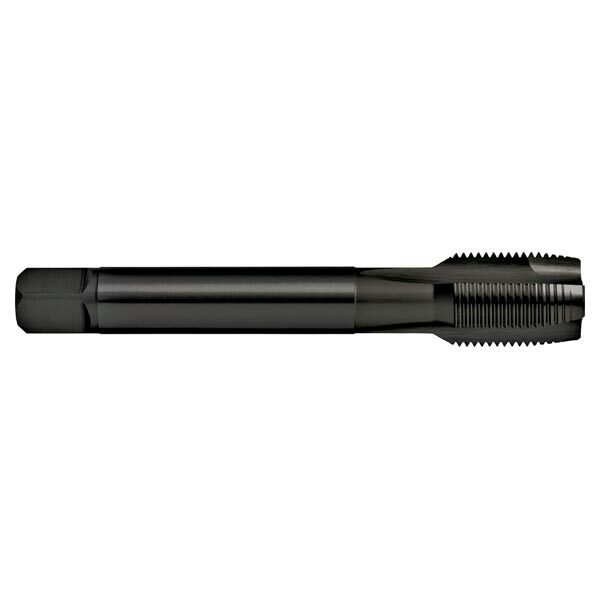

Sutton T1811316 G-BSPF G 1/4 x 19 Spiral Point Tap - HSSE V3 Blue

Sutton T1811666 G-BSPF G 3/8 x 19 Spiral Point Tap - HSSE V3 Blue

Sutton T1812096 G-BSPF G 1/2 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T1812291 G-BSPF G 5/8 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T1812644 G-BSPF G 3/4 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T1813020 G-BSPF G 7/8 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T1813325 G-BSPF G 1 x 11 Spiral Point Tap - HSSE V3 Blue

Description +

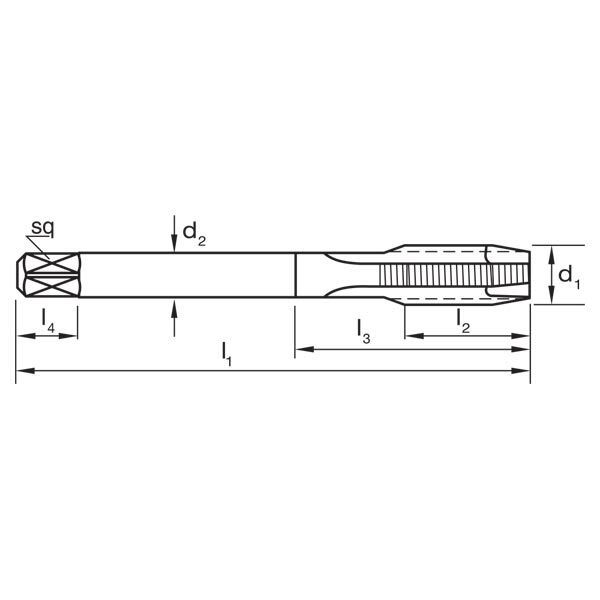

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications +

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T181 G-BSPF Spiral Point Tap - Premium HSS Blue

SKU: A0013447

Type: Sprial Point Tap

$422.24

Inc. GST

Buy It Now

Available

The Sutton T181 G-BSPF Spiral Point Tap by Sutton Tools is a Sprial Point Tap with Premium Grade High Speed Steel (HSSE-V3) material. It provides a length l1 of 125 mm and is suitable for Stainless Steel - Austenitic Age Hardened.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
